Removing Rear Window

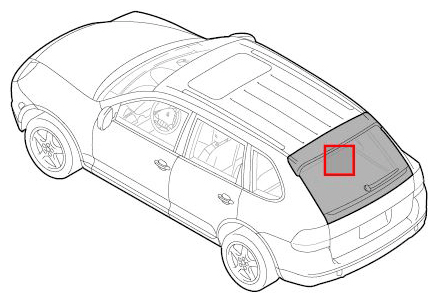

Fig 1: Identifying Rear Window
G09411944Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Opening rear window

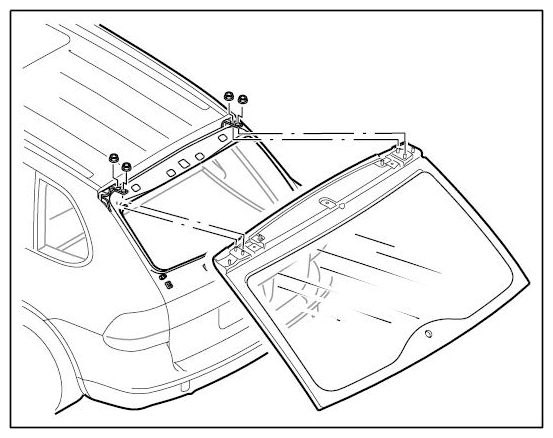

    Fig 2: Opening Rear Window
    G09411945Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Removing rear window
    1. 2.1. Ensure that the rear window does not fall with the help of a second person.
    2. 2.2. Unscrew -1-  fastening screws.
    3. 2.3. Remove rear window -2-  .

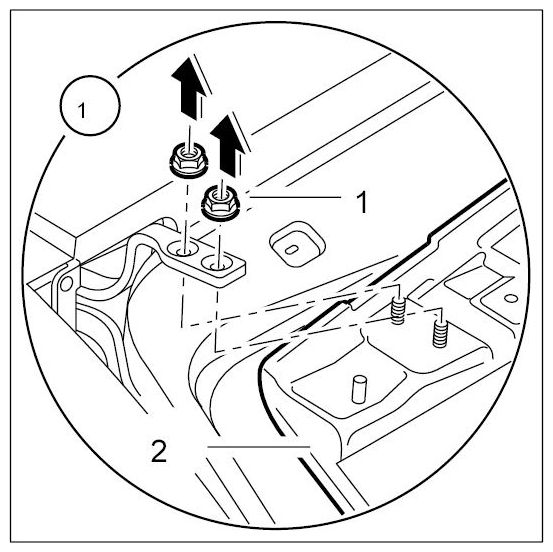

      Fig 3: Removing Fastening Screws
      G09411946Courtesy of PORSCHE CARS NORTH AMERICA, INC.
