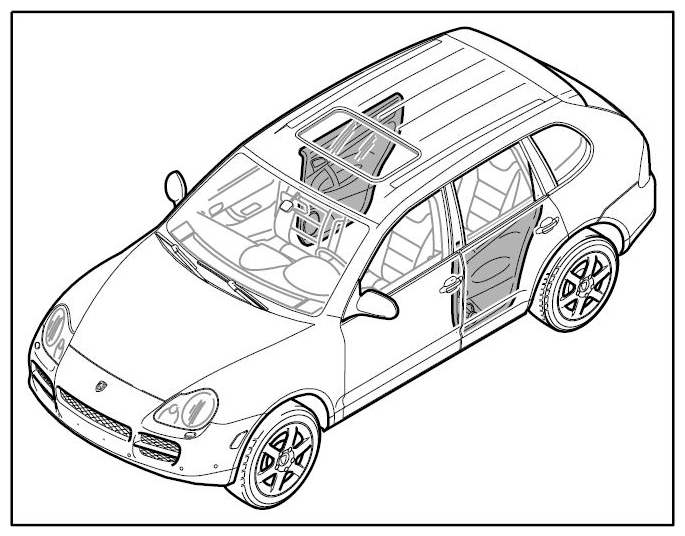

Removing Rear Door Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

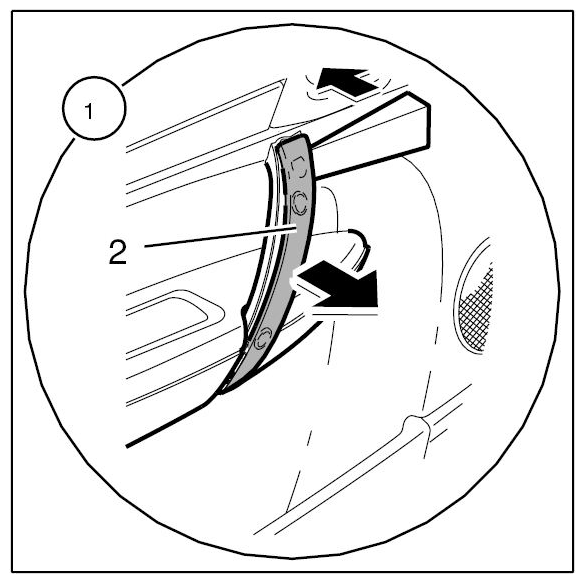

- Carefully lever out cover -2-
of inner door handle using a plastic wedge and remove it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

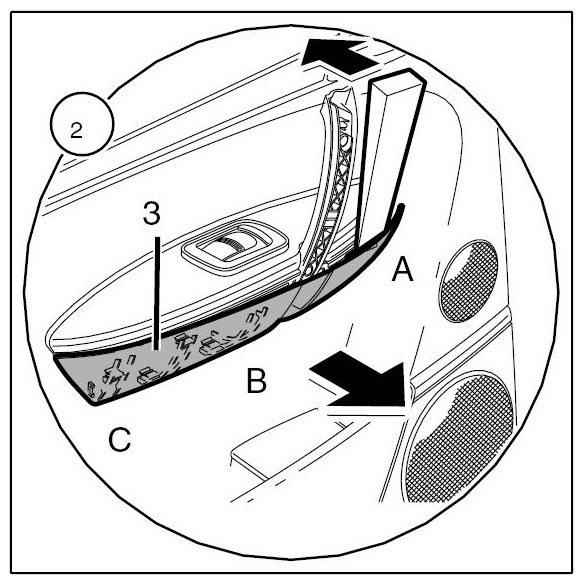

- Use a plastic wedge to lever out cover -3-
at positions -A, B and C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

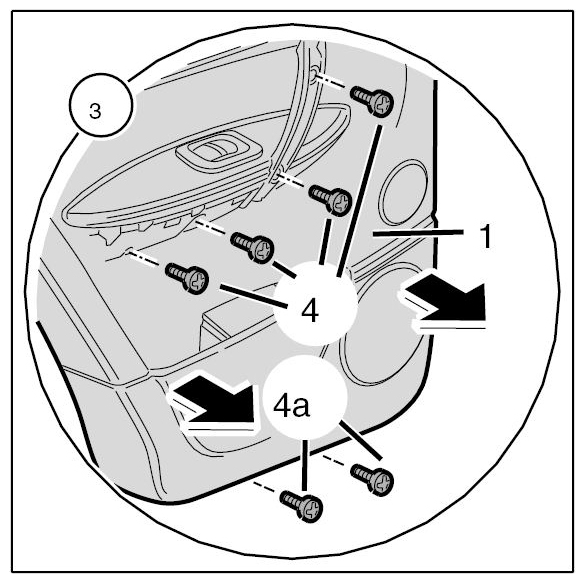

- Unscrew fastening screws -4-
and -4a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

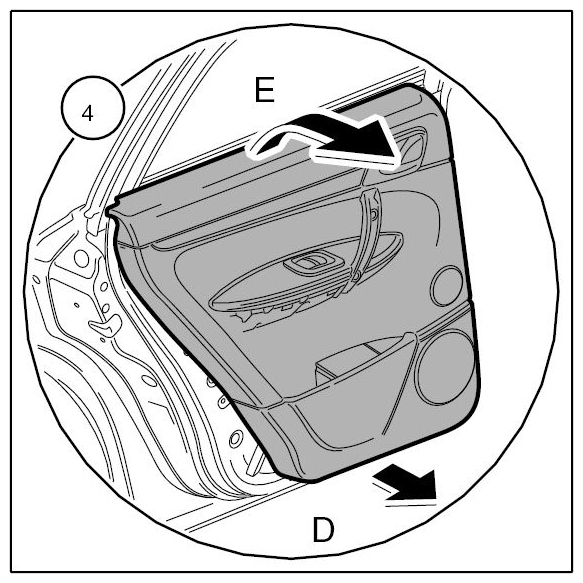

- Unclip rear door trim panel -1-
at bottom -arrow D-
and unhook from sealing channel at top -arrow E-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

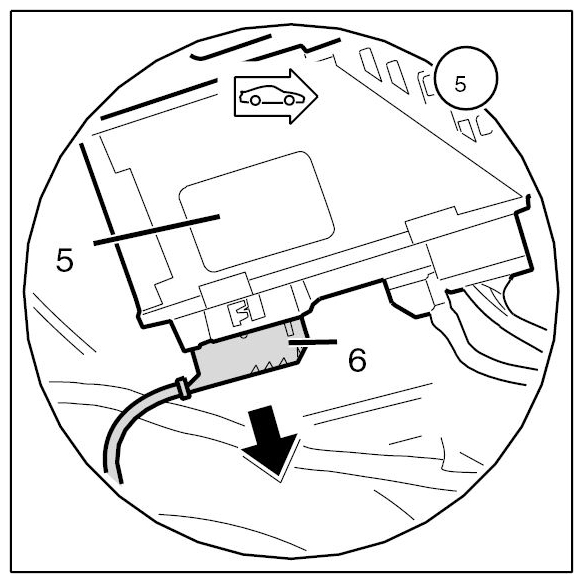

- Release plug -6-
and pull it off the control module -5-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

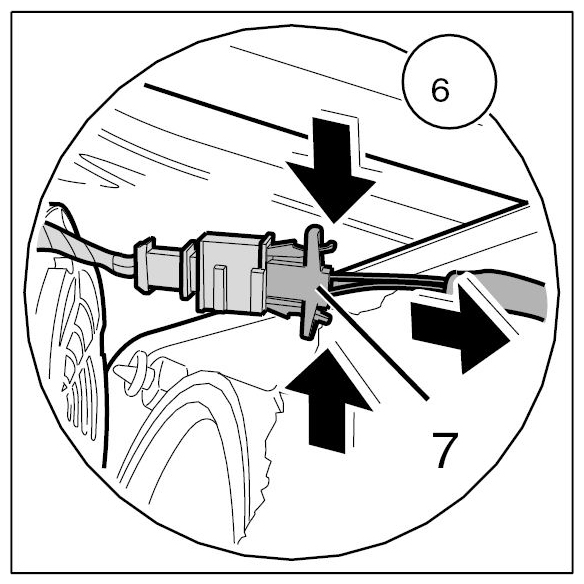

- Unlock and pull off the plugs for the door loudspeaker -7- -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

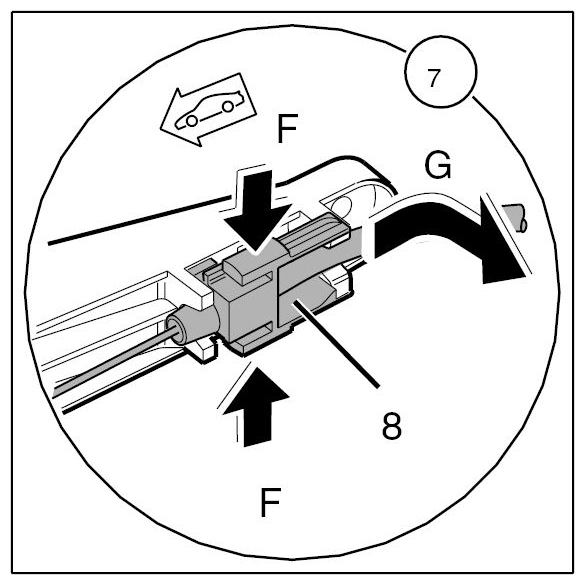

- Unlock fastening clip of actuating cable for door lock -8-
by pressing the locking hook -arrow F-
and disengage from the guide slot -arrow G-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

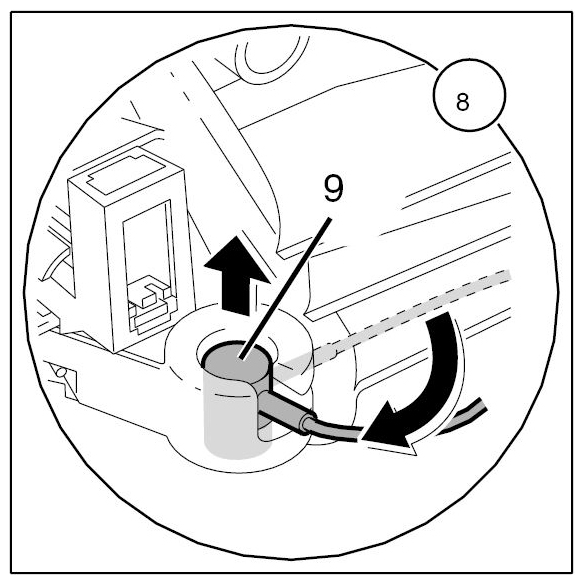

- Swivel pin -9-
of the actuating cable forward by 90° and disengage in an upward direction.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

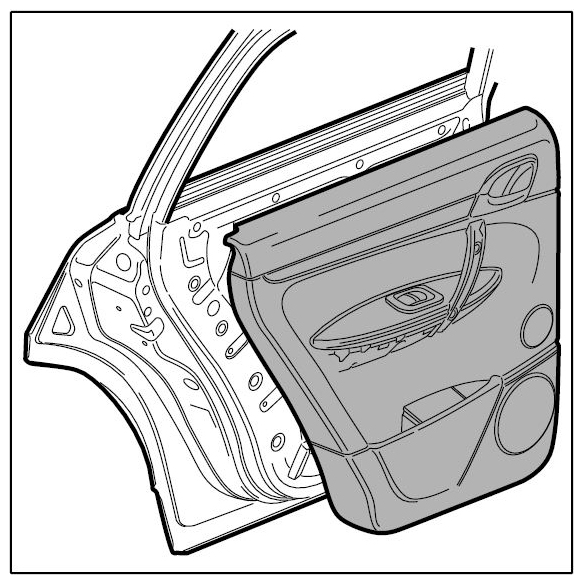

- Remove door trim panel.
