Installing Rear Door Trim Panel

Fig 1: Identifying Rear Door Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The fastening clips have two settings. Before installing the front door trim panel, the fastening clips must be loosened fully because otherwise the door trim panel may not engage fully into the door unit carrier, possibly resulting in noise. The fastening clips must be pulled to the front position.

1. Check fastening clips -10-  for deformation; replace if necessary.

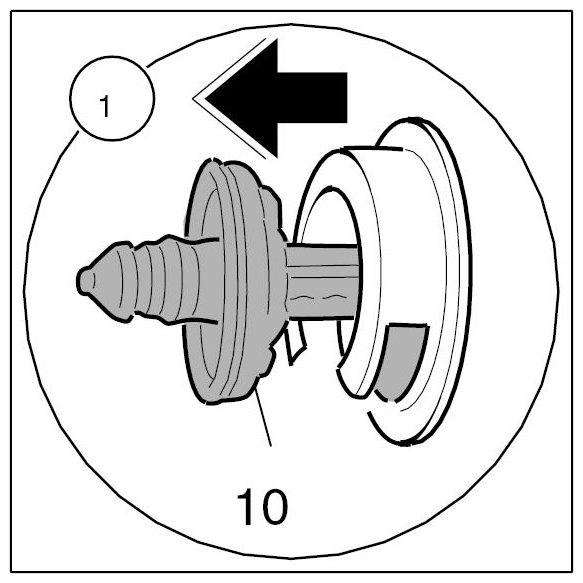

   Fig 2: Removing Fastening Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull fastening clips -10-  to the front position so that they are fully loosened.
3. Positioning door trim panel

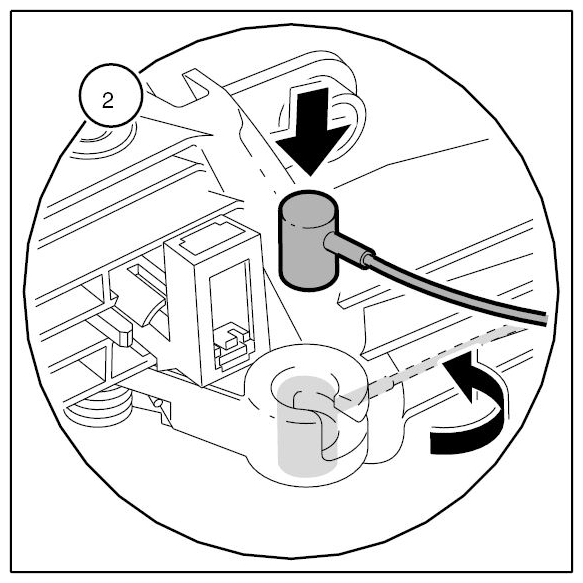

4. Engage pin -9-  of the actuating cable and swivel back by 90°.
   Fig 3: Positioning Door Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Insert T-profile of fastening clip -8-  into the square hole.
   Fig 4: Inserting T-Profile Of Fastening Clip Into Square Hole

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Push fastening clip forward and lock the locking hook.
   Fig 5: Pushing Fastening Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Connect plug for door loudspeaker -7-  to plug connection of door loudspeaker.
   Fig 6: Connecting Plug For Door Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Connect plug -6-  to control module -5-  .
   Fig 7: Connect Plug To Control Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

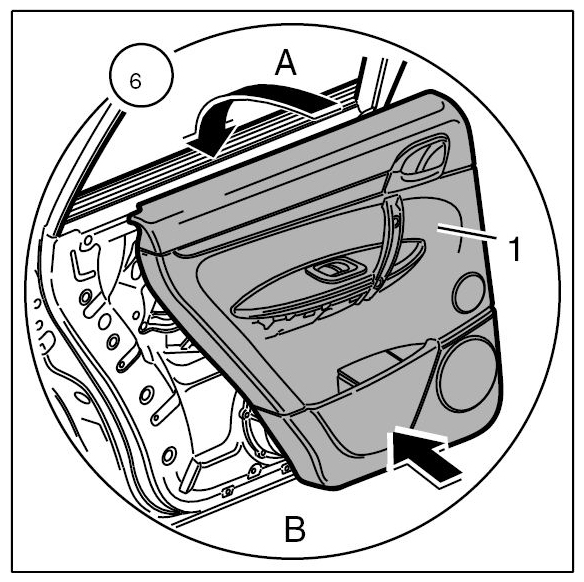

9. Hook rear door trim panel -1-  into sealing channel at top -arrow A-  and clip in at bottom -arrow B-  . Make sure that the guide pins -12-  engage in the sub-frame.
   Fig 8: Hooking Rear Door Trim Panel Into Sealing Channel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

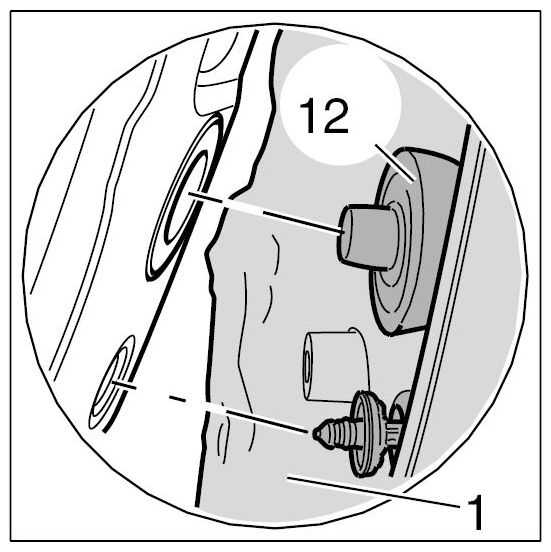

   Fig 9: Identifying Rear Door Trim Panel And Guide Pins

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

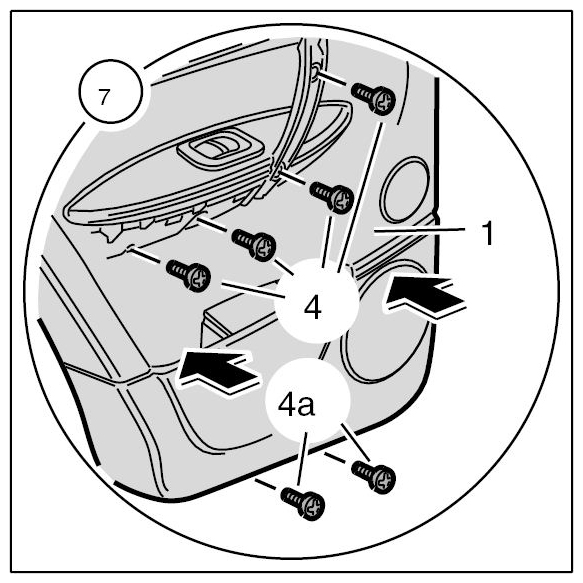

10. Screw in fastening screws -4 and 4a-  and tighten to the specified tightening torque. → Tightening torque: 3.0 ft lbs.+/-0.5 ft lbs.  → Tightening torque: 1.5 ft lbs.+/-0.5 ft lbs.
    Fig 10: Installing Fastening Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

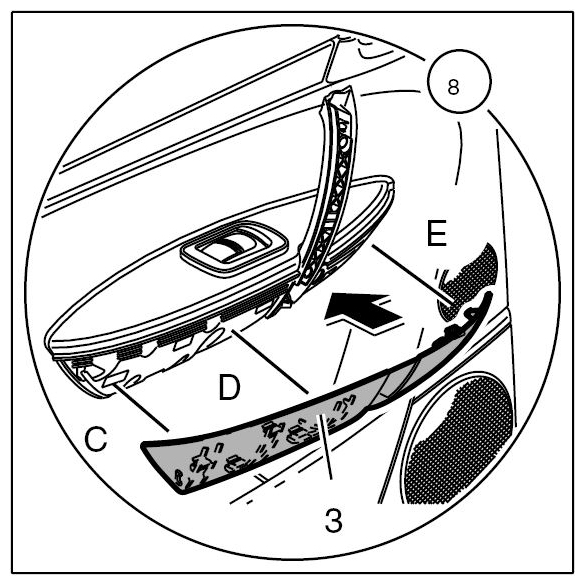

11. Align cover -3-  at the positions -C, D und E-  and clip into the armrest.
    Fig 11: Aligning Cover At Positions

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Position cover -2-  on inner door handle and clip into place.
    Fig 12: Positioning Cover On Inner Door Handle

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
