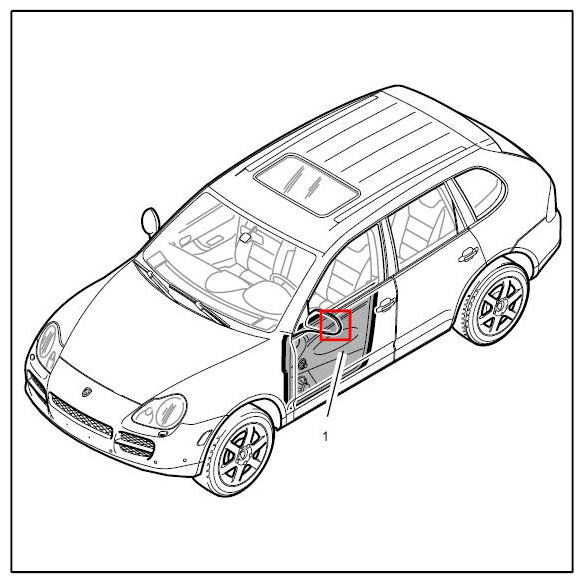

Removing Front Door Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

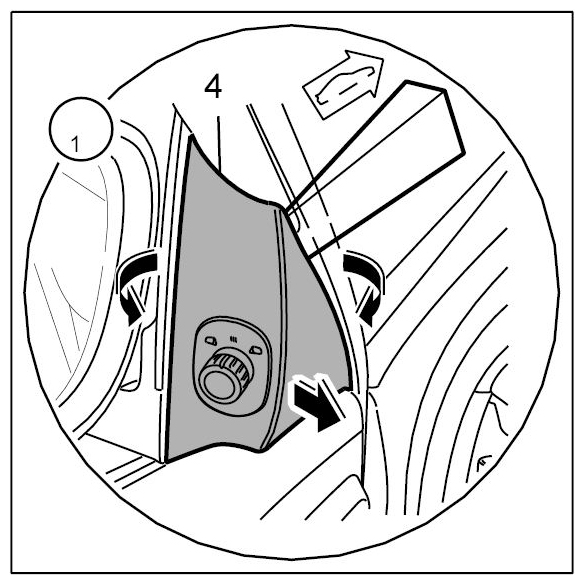

- Carefully lever out trim panel for mirror triangle -4-
using plastic wedge and pull forwards -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

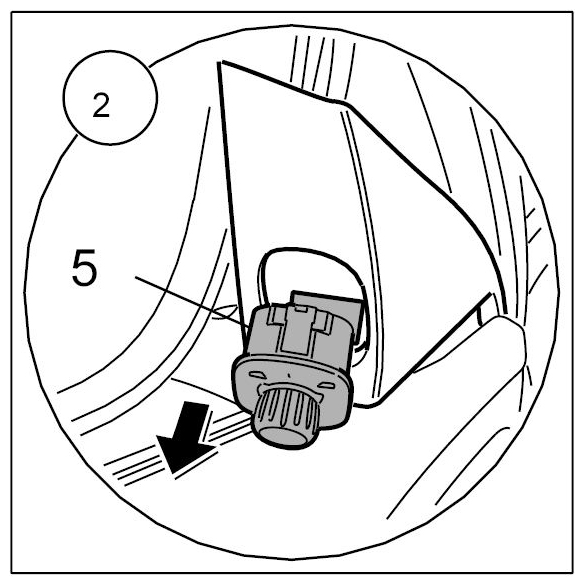

- Unclip switch -5-
out of trim panel for mirror triangle from behind -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

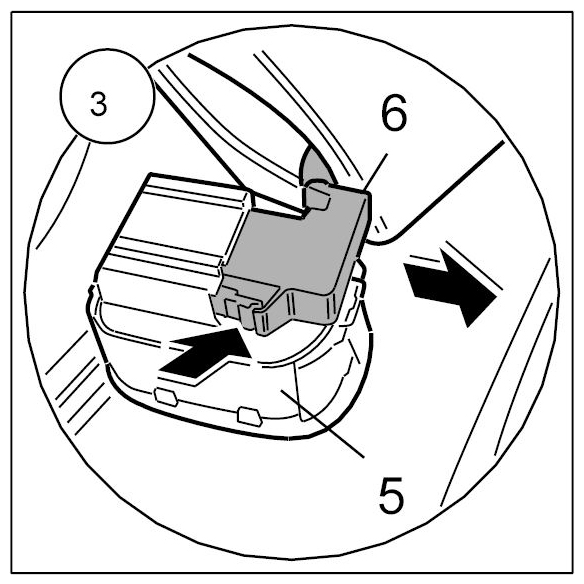

- Unlock plug -6- -arrow-
and pull connector -6- -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove trim panel for mirror triangle.

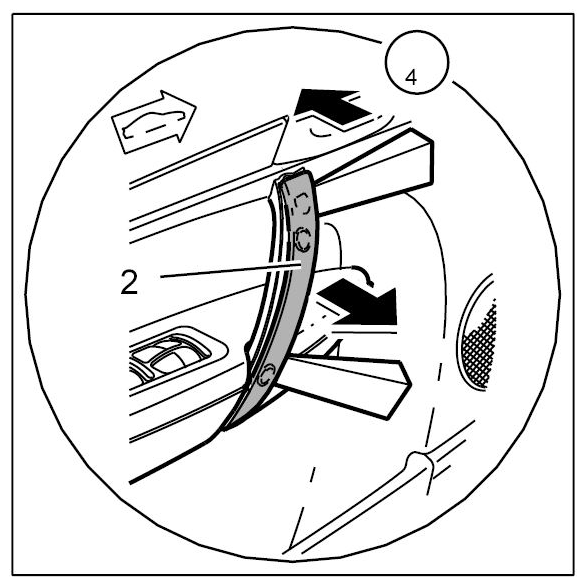

- Carefully lever out cover -2-
of inner door handle using a plastic wedge and remove it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

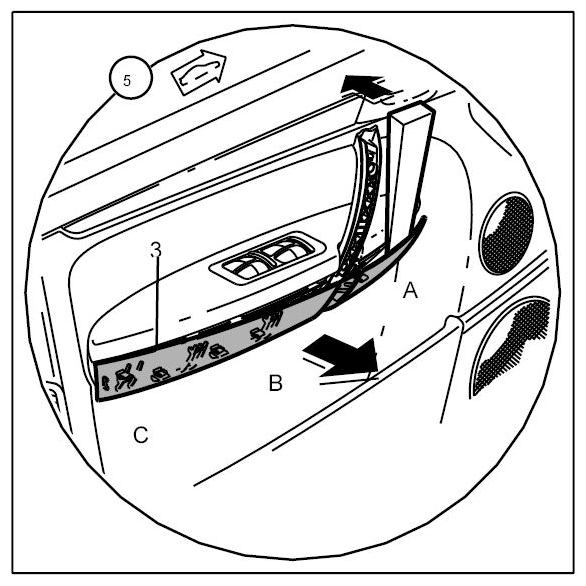

- Lever out the trim -3-
at the positions -A, B and C-
using a plastic wedge.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

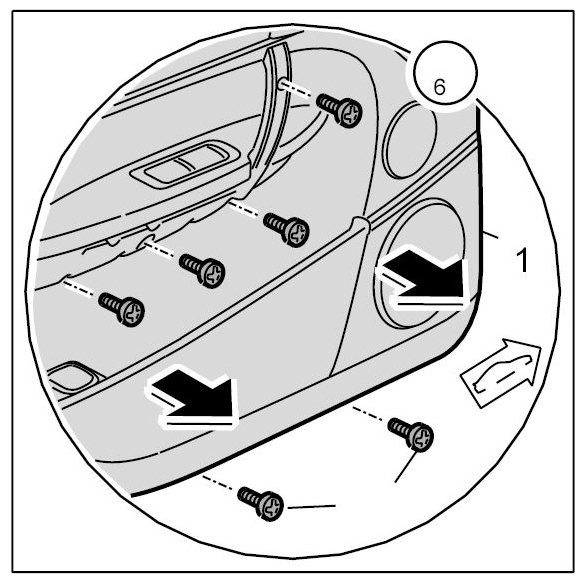

- Unscrew fastening screws -7 and 7A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

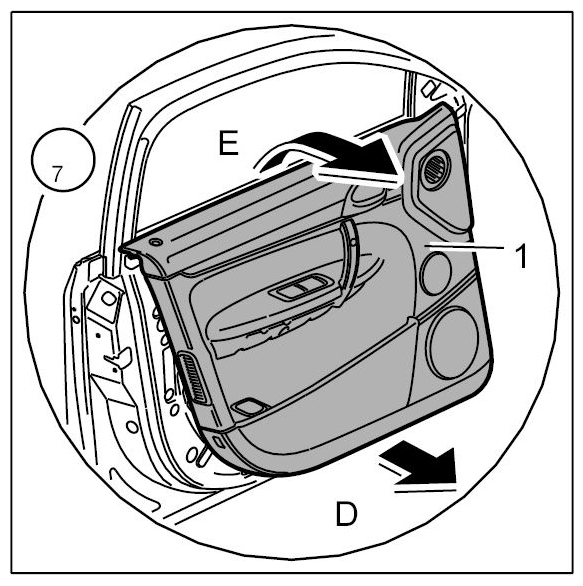

- Unclip front door trim panel -1-
at bottom -arrow D-
and unhook from sealing channel at top -arrow E-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

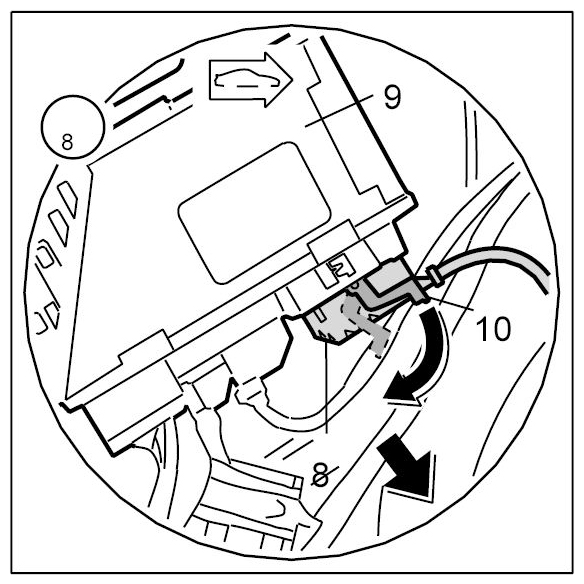

- Unlock plug -8-
by operating locking lever -10-
and remove from control module -9-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

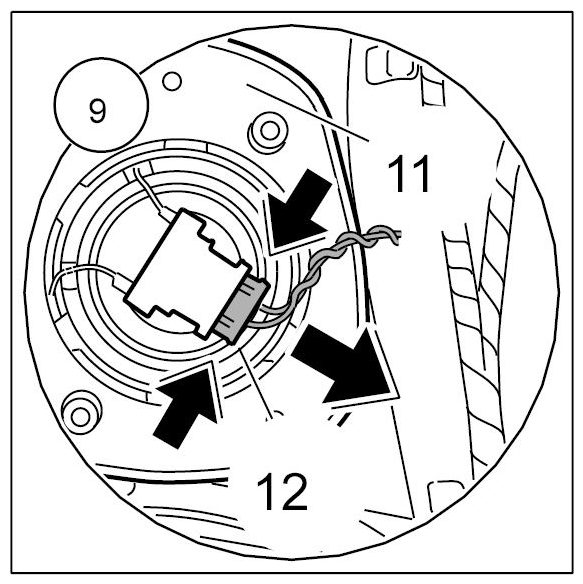

- Release plug for door loudspeaker -12-
at door loudspeaker -11-
and pull it off.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

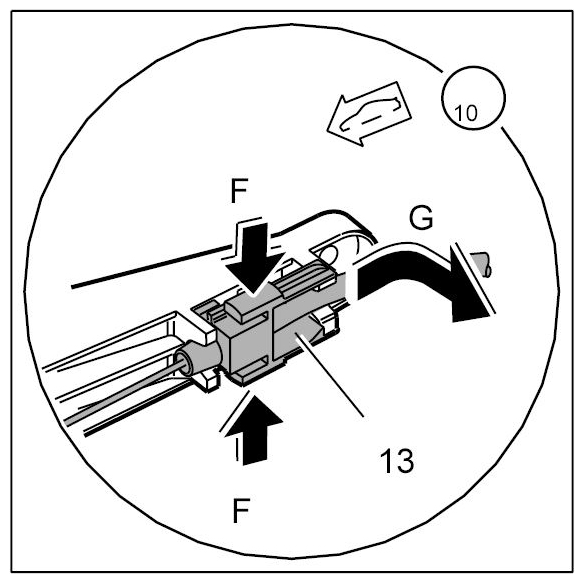

- Unlock fastening clip for actuating cable for door lock -13-
by pressing the locking hook arrows -arrow F-
and disengage from the guide slot arrow -arrow G-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

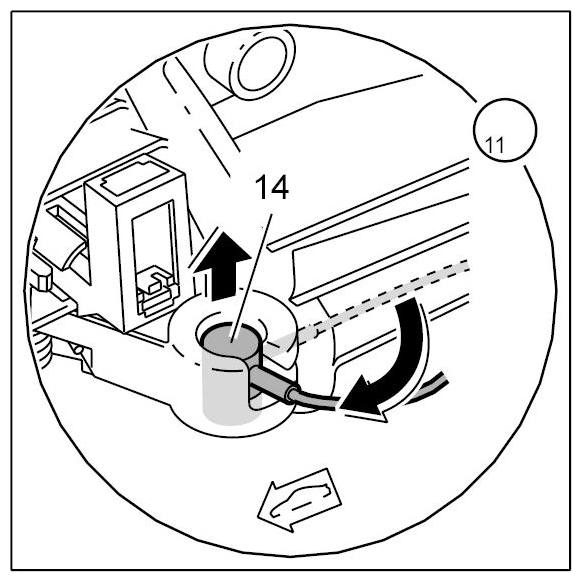

- Swivel pin -14-
of actuating cable forward by 90° and disengage upward.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove door trim panel.
