Removing Front Trim (Engine Compartment)

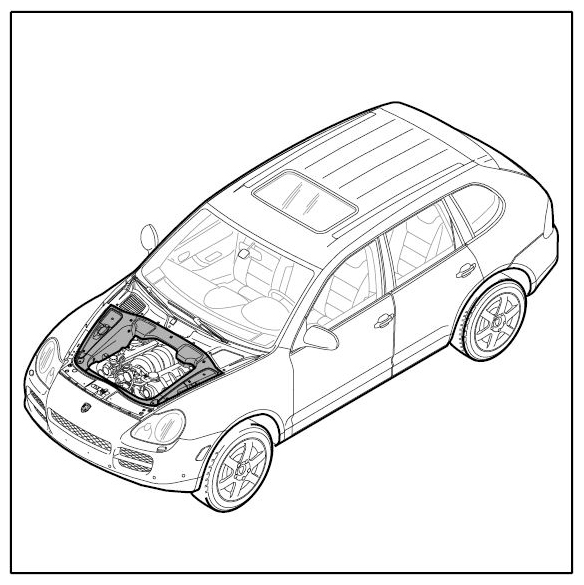

Fig 1: Identifying Front Trim (Engine Compartment)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove trim panel on the right.
   1. 1.1. Open lid of washer fluid container.
   2. 1.2. Unscrew fastening screw -5-  at filler neck of washer-fluid reservoir.
   3. 1.3. Turn fixing clips -2-  by 90° and remove them.
   4. 1.4. Remove trim panel -6-  on the right.

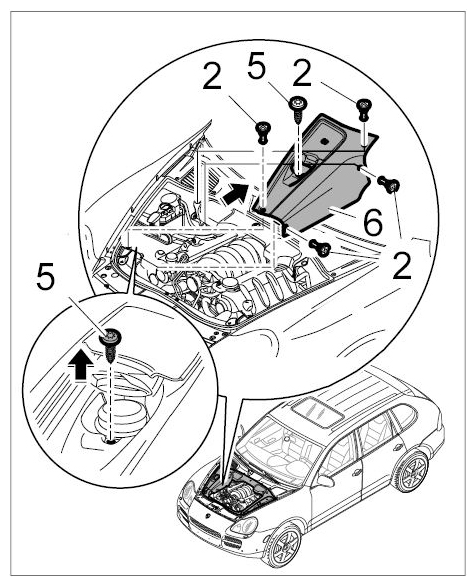

      Fig 2: Removing Trim Panel On Right

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove trim panel on the left.
   1. 2.1. Turn fixing clips -2-  by 90° and remove them.
   2. 2.2. Remove trim panel -4-  on the left.

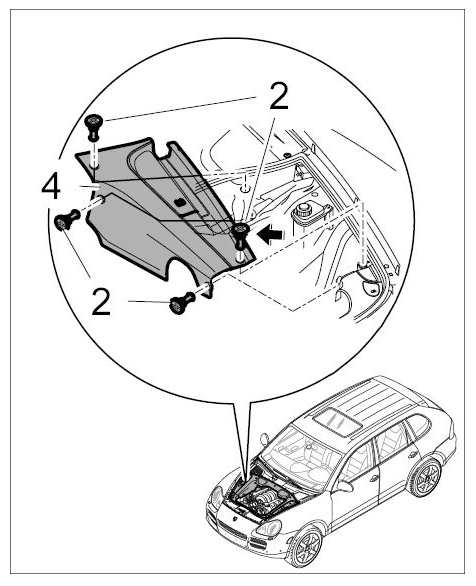

      Fig 3: Removing Trim Panel On Left

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove trim panel at rear.
   1. 3.1. Turn fixing clips -2-  by 90° and remove them.
   2. 3.2. Remove trim panel -3-  at the rear.

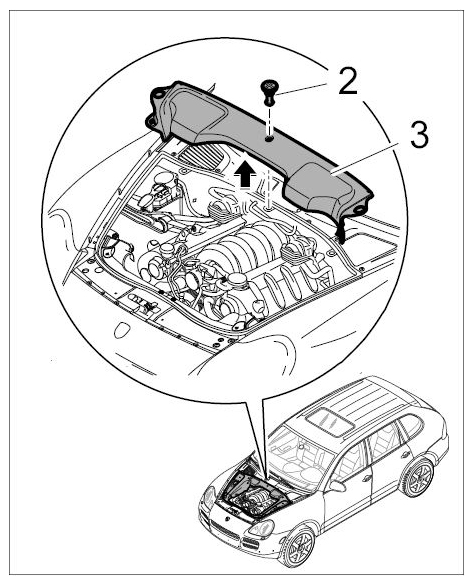

      Fig 4: Removing Trim Panel At Rear

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove front trim panel on right and left.
   1. 4.1. Turn fixing clips -2-  by 90° and remove them.
   2. 4.2. Remove front trim panel -1a, 1b-  .

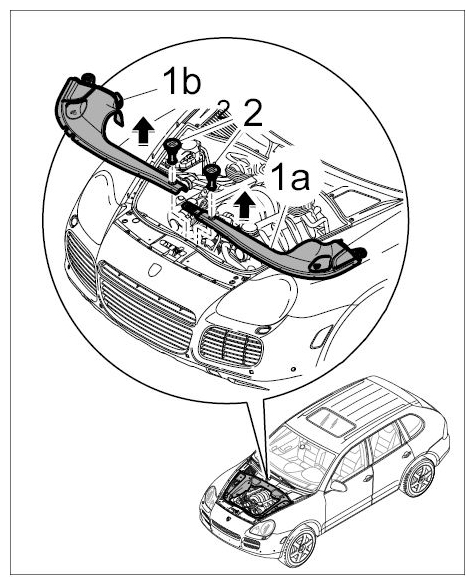

      Fig 5: Removing Front Trim Panel On Right And Left

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
