Removing Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Removing roof joint cover strip

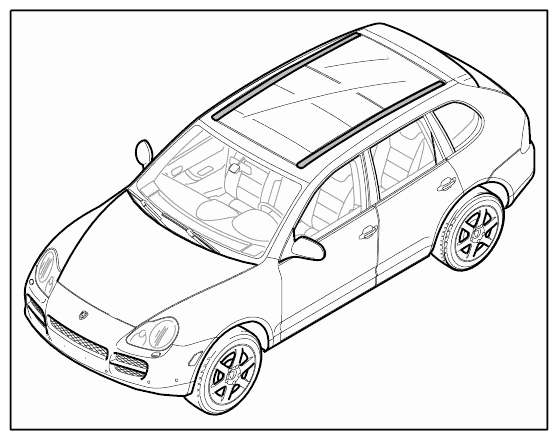

- Vehicles with panoramic roof

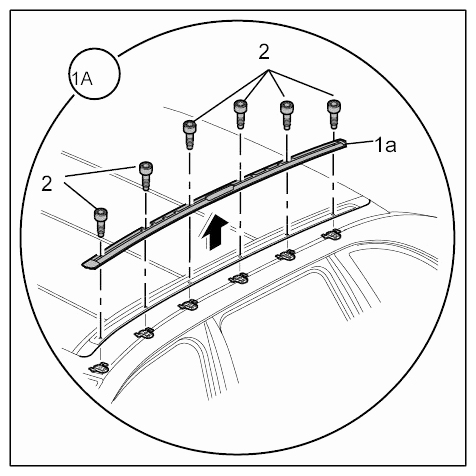

- 1.1. Unscrew fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

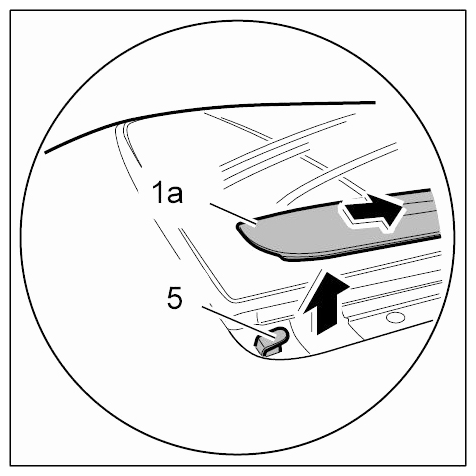

- 1.2. Unhook roof edging strip -1a-
from the holding clip -5-
and remove.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Removing roof joint cover strip

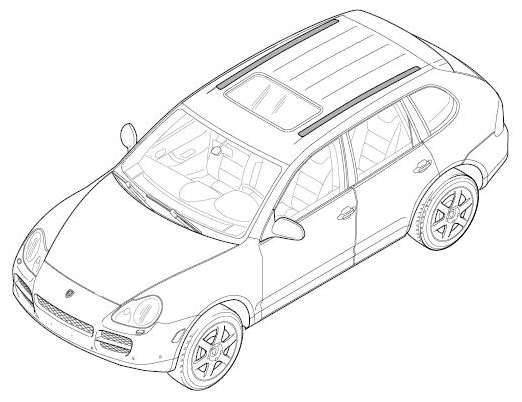

- Vehicles with/without sliding roof

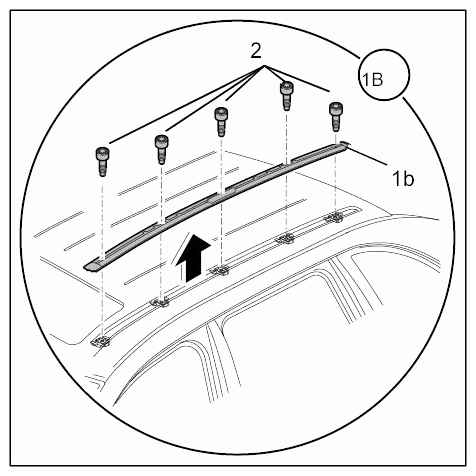

- 2.1. Unscrew fastening screws -2-
.
- 2.2. Remove roof joint cover strip -1b-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
