Installing cover strip

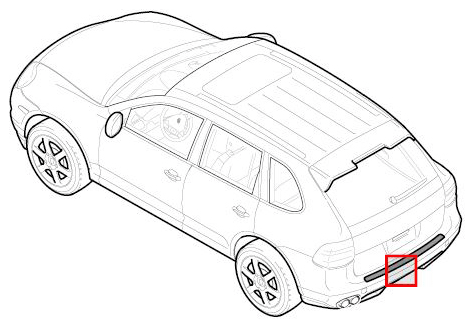

Fig 1: Identifying Installation Position Of Cover Strip
G09411684Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fit cover strip -2-  in -direction of arrow A-  and press it in until the retaining pivots lock with an audible click.

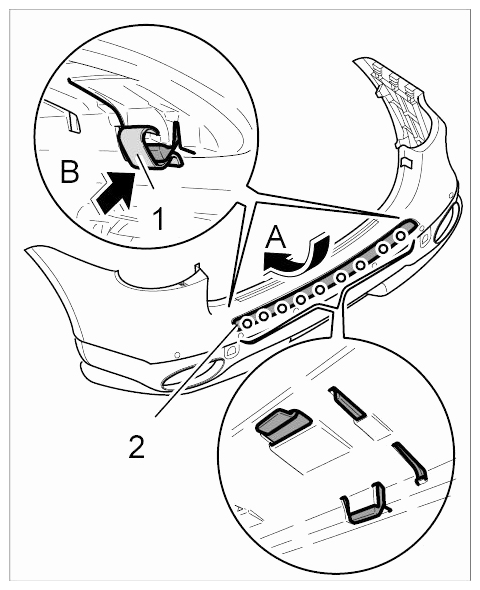

    Fig 2: Installing Cover Strip
    G09411685Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press in fastening clamps -1-  (-arrow B-  ).
