Removing Rear Door

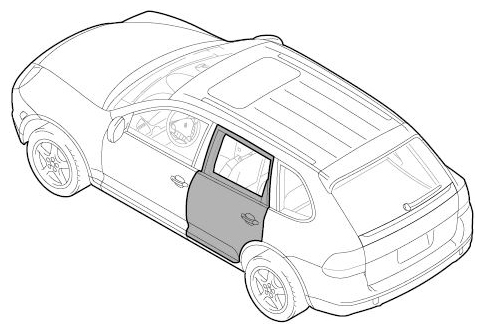

Fig 1: Identifying Rear Door

G09411303

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove ignition key.
Removing door.

Fig 2: Identifying Ignition Key
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Pull off rubber sleeve -1- between door and B-pillar -Arrow A- .

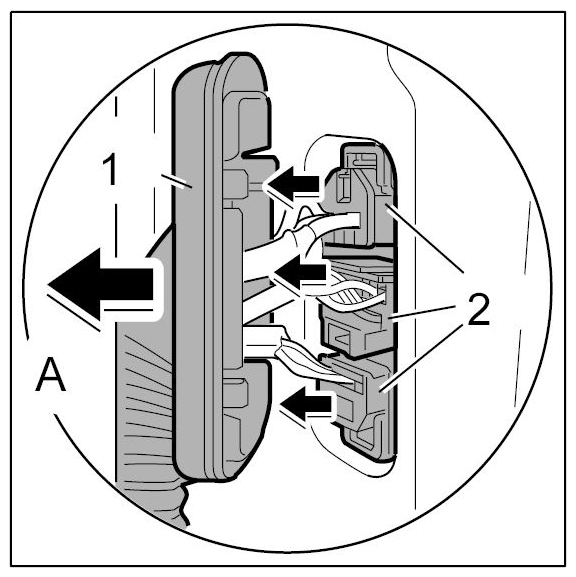

  Fig 3: Removing Rubber Sleeve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Release and disconnect electric push-on connectors -2- .

  Fig 4: Removing Electric Push-On Connectors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Unscrew fastening nut of upper hinge joint -3- using the appropriate special tool. → Tools And Materials

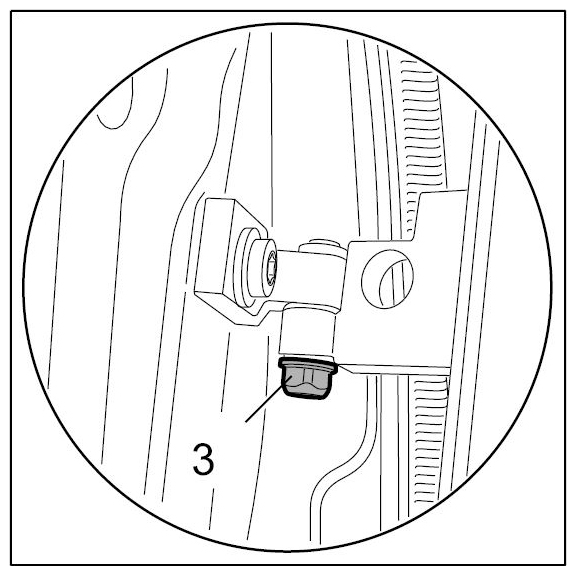

  Fig 5: Identifying Upper Hinge Joint Fastening Nut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Unscrew fastening screw on lower hinge mounting -4- located on door side using the appropriate special tool. → Tools And Materials .

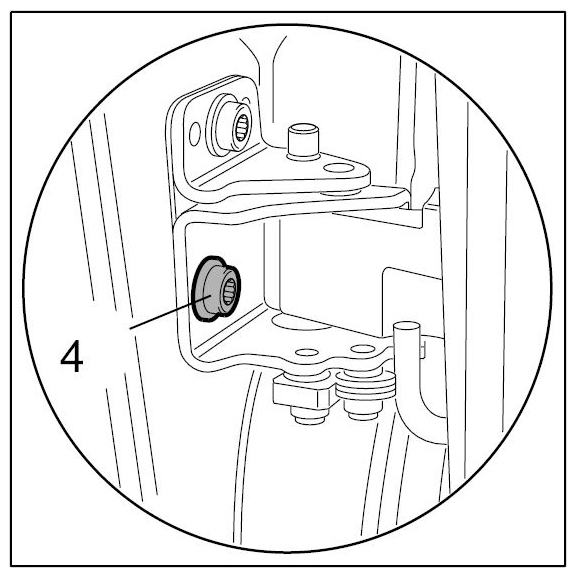

  Fig 6: Identifying Fastening Screw On Lower Hinge Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take off the door.
1. 3.1. Lift the door -arrows- lightly upwards until the hinge bolts are extended out of the hinge halves on the door side.
2. 3.2. Take off the door.

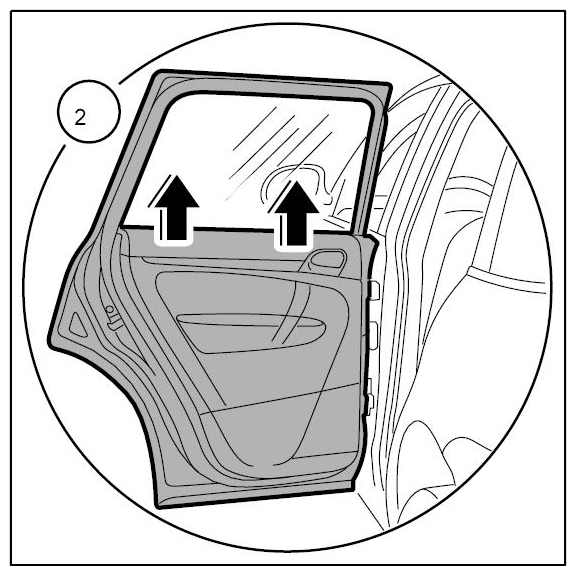

  Fig 7: Removing Door
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

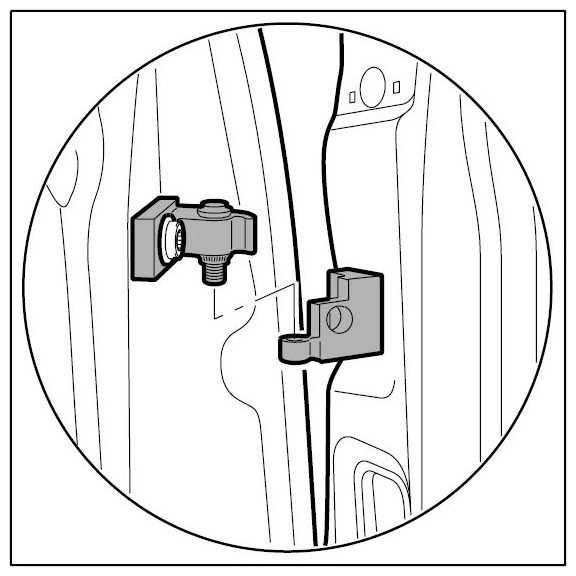

  Fig 8: Identifying Hinge Halves On Door Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
