Removing Rear Door Sub-Frame

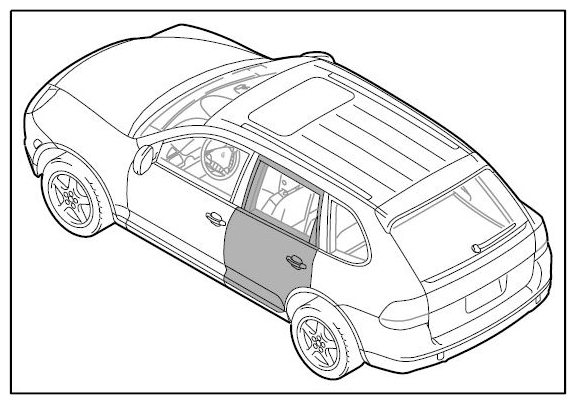

Fig 1: Identifying Rear Door Sub-Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• When removing the rear door unit carrier, make sure that the door window is closed.

1. Remove rear assembly opening covers, detach lock mounting and KESSY wiring harness.
   1. 1.1. For all vehicles:

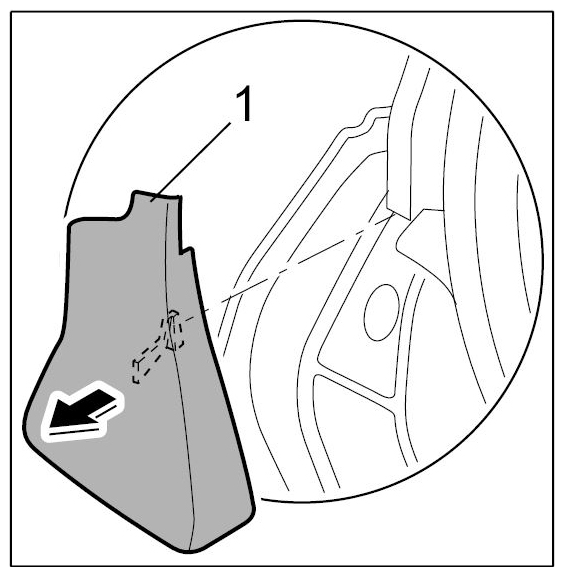

      • unclip top and bottom assembly opening covers -1-  and -2-  .

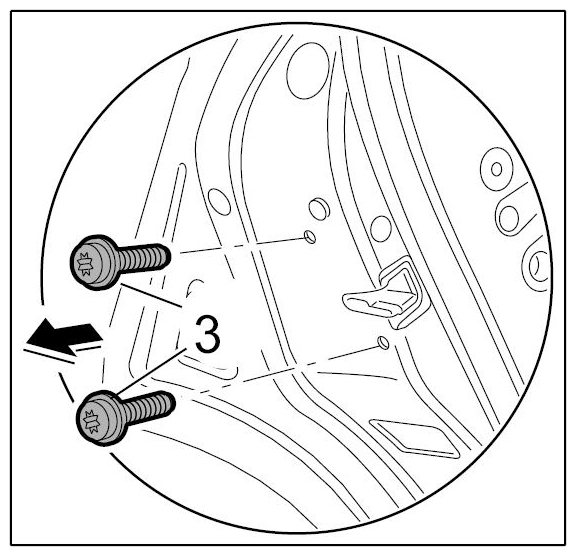

      • Unscrew fastening screws -3-  on door lock.
        Fig 2: Removing Rear Assembly Opening Covers

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.

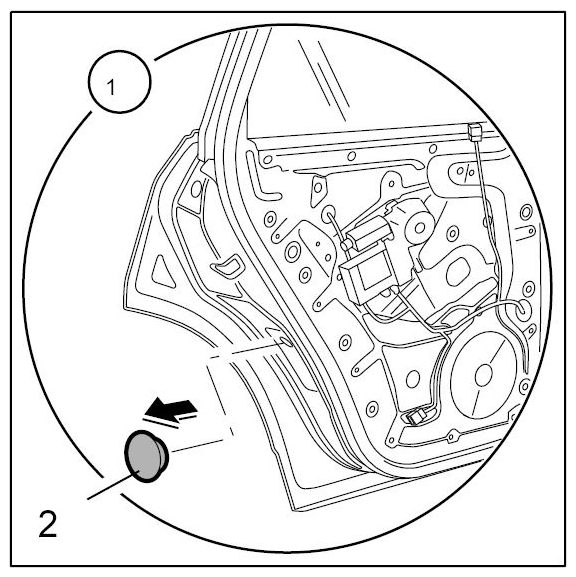

      Fig 3: Removing Top And Bottom Assembly Opening Covers (1 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 4: Removing Top And Bottom Assembly Opening Covers (1 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Also for vehicles with KESSY control module:
      • Release connector (-arrow A-  ) and pull off (-arrow B-  ).
      • Press out rubber sleeve (-arrow C-  ) and slide cable outwards through the opening.

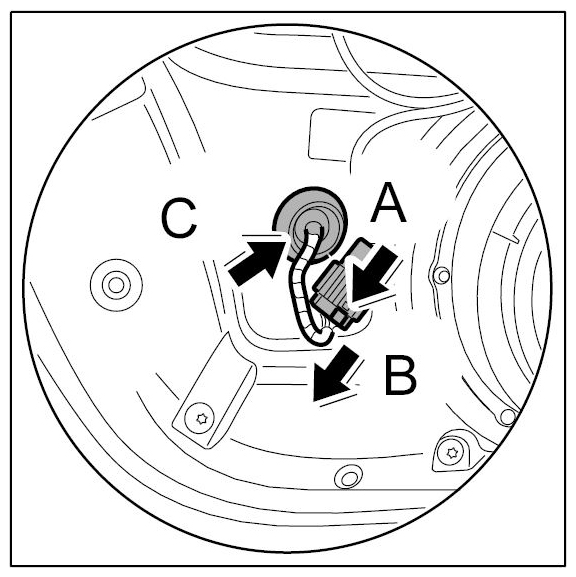

        Fig 5: Removing Connector

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove front assembly opening covers and disconnect electrical connection.
   1. 2.1. Unclip the top and bottom assembly opening covers -4-  and -5-  .

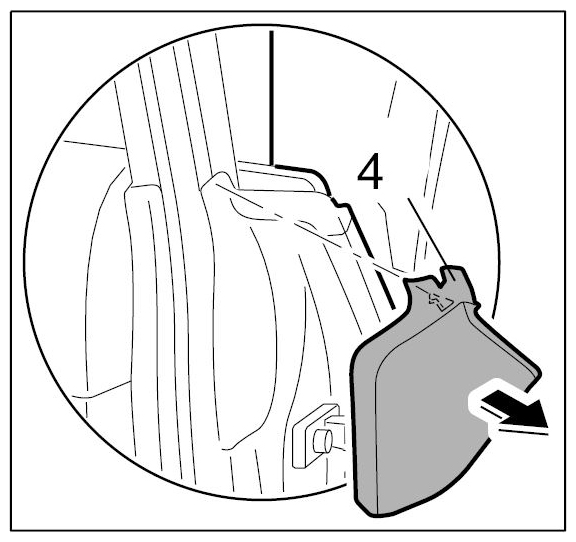

      Fig 6: Removing Top And Bottom Assembly Opening Covers (1 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

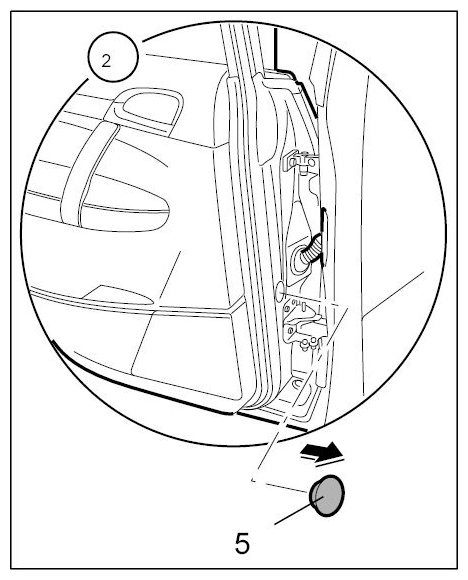

      Fig 7: Removing Top And Bottom Assembly Opening Covers (2 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Pull off the rubber sleeve -7-  between the doors and B-pillar.
      Fig 8: Removing Rubber Sleeve 7 Between Doors And B-Pillar

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 2.3. Release and disconnect electric push-on connectors -6-  .

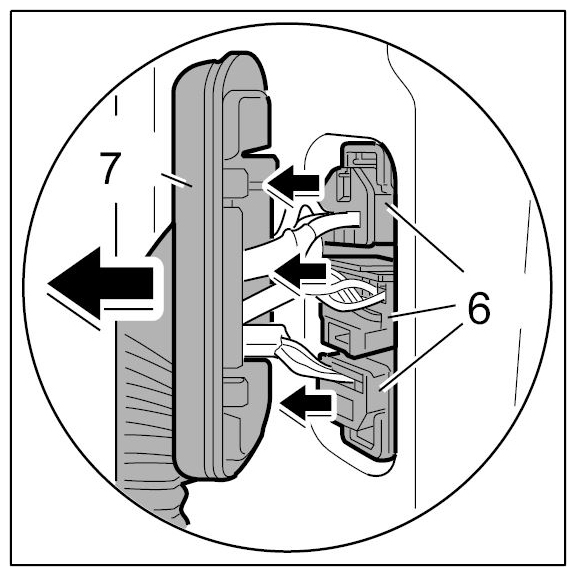

      Fig 9: Removing Electric Push-On Connectors

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release door unit carrier.

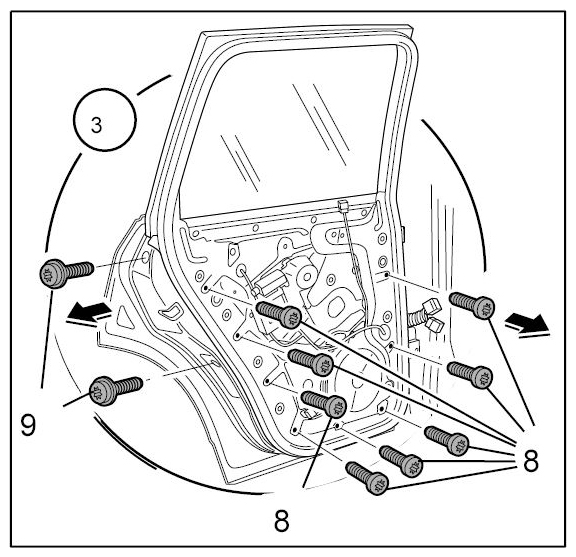

   1. 3.1. Unscrew fastening screws for door sub-frame -8, 9-  and -11-  .
      Fig 10: Removing Door Unit Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 11: Removing Fastening Screws From Door Sub-Frame

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

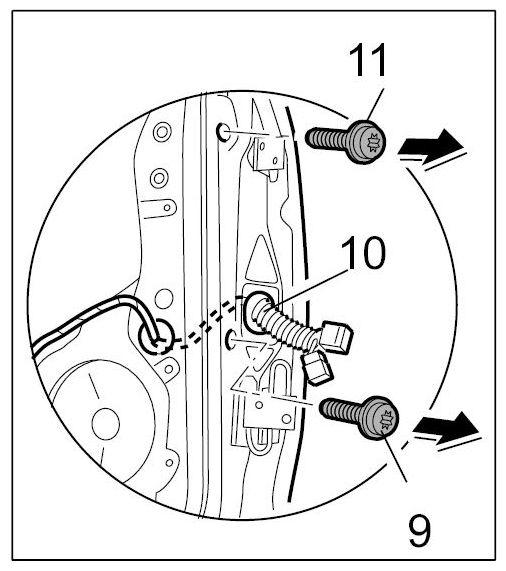

   2. 3.2. Press the rubber sleeve -10-  inwards and push the plug connection back through the door aperture.
      Fig 12: Removing Fastening Screws From Door Sub-Frame

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove door unit carrier.
   1. 4.1. Raise the door sub-frame -12-  evenly at the front and rear until the guide pins -13-  and -16-  are fully released from the holding slots -14-  and -15-  .
      Fig 13: Removing Door Unit Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

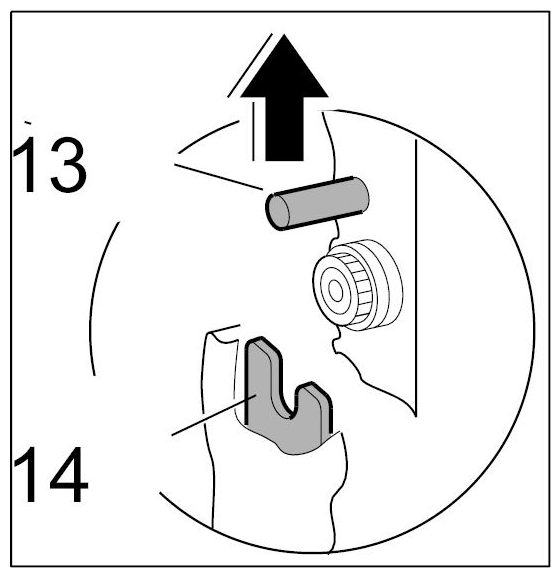

      Fig 14: Removing Guide Pins From Holding Slots

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

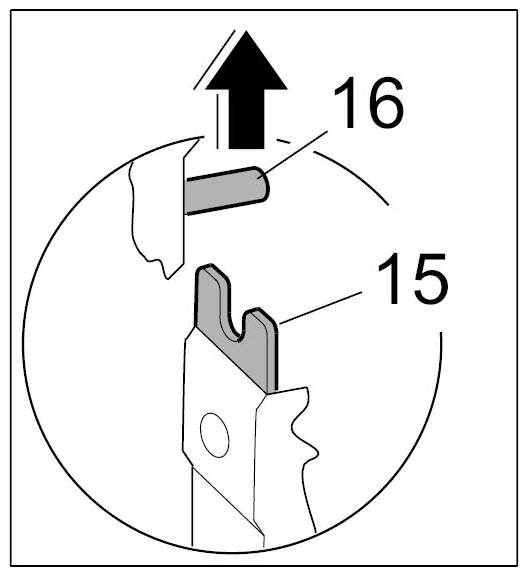

      Fig 15: Removing Guide Pins From Holding Slots

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

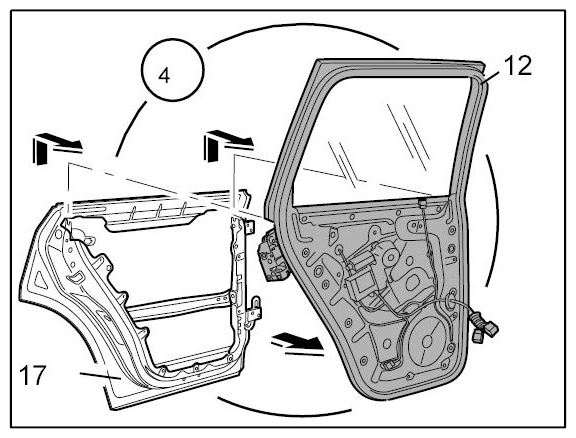

   2. 4.2. Remove the door sub-frame from the basic door frame -17-  .
      Fig 16: Removing Door Sub-Frame From Basic Door Frame

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
