Installing Fuse Element For Auxiliary Battery

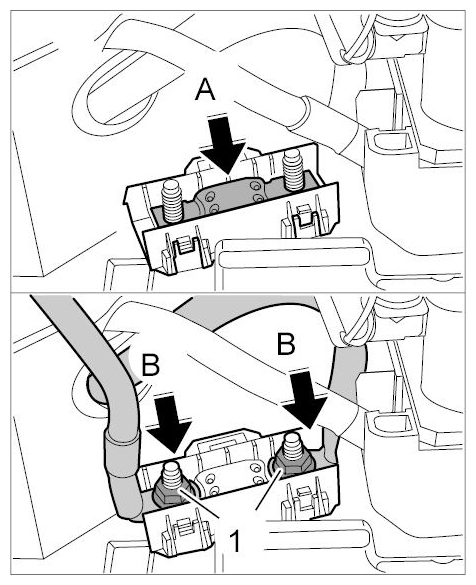

1. Insert the (new) fuse element -Arrow A-  .
   Fig 1: Inserting Fuse Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Place the lines on the threaded bolts -Arrows B-  and tighten with the two fastening nuts -1-  → Tightening torque: 12 ftlb..

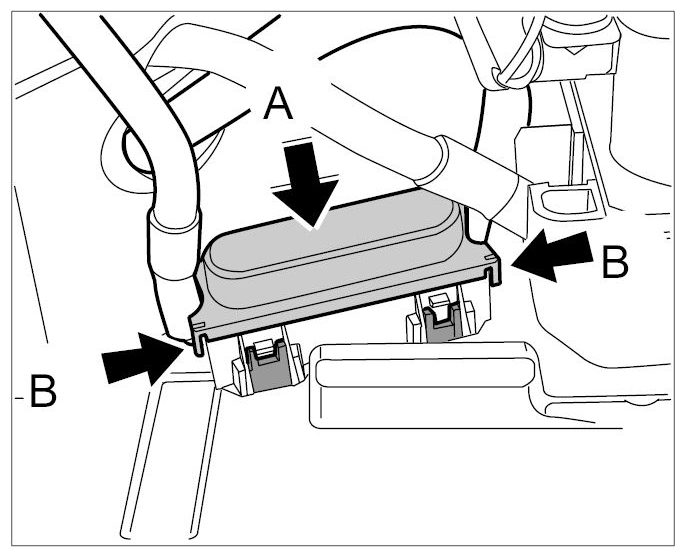

3. Press cover onto the housing -Arrow A-  until locking tabs -B-  are felt to engage.
   Fig 2: Pressing Cover Onto Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install auxiliary battery → Installing Battery .
