Removing Relay Carrier In Plenum Chamber E-Box

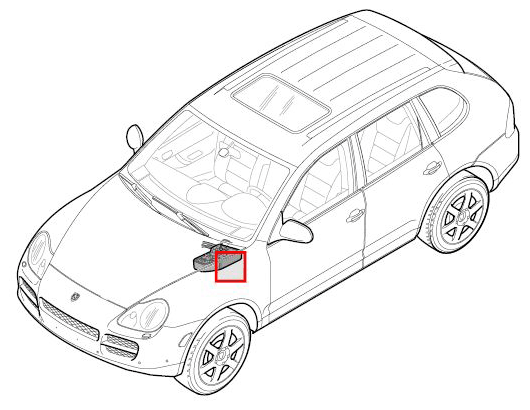

Fig 1: Overview Of Relay Carrier, Plenum Panel E-Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

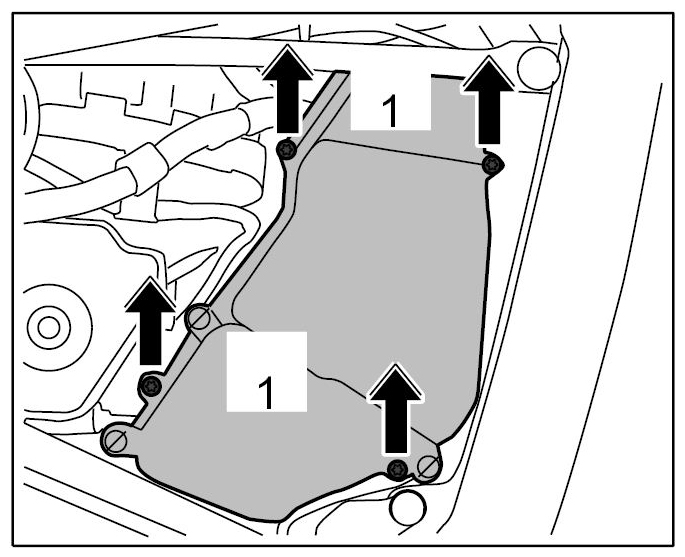

1. Undo fastening screws -1- -arrows-  and remove lid.
   Fig 2: Removing Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

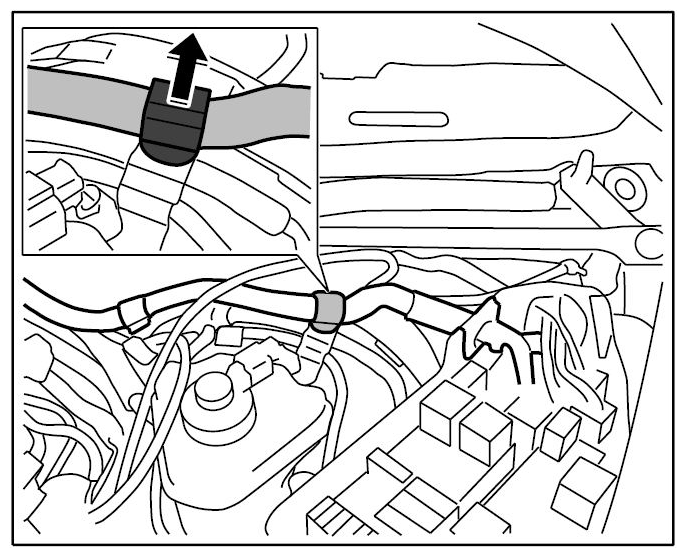

2. Unclip harness -arrow-  .
   Fig 3: Unclipping Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

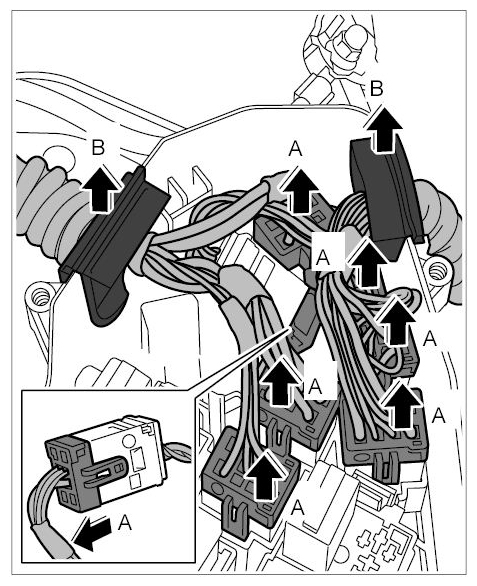

3. Disconnect plugs -arrows A-  and remove both wire harnesses from bracket -arrows B-  .
   Fig 4: Disconnecting Plugs And Removing Wire Harnesses From Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

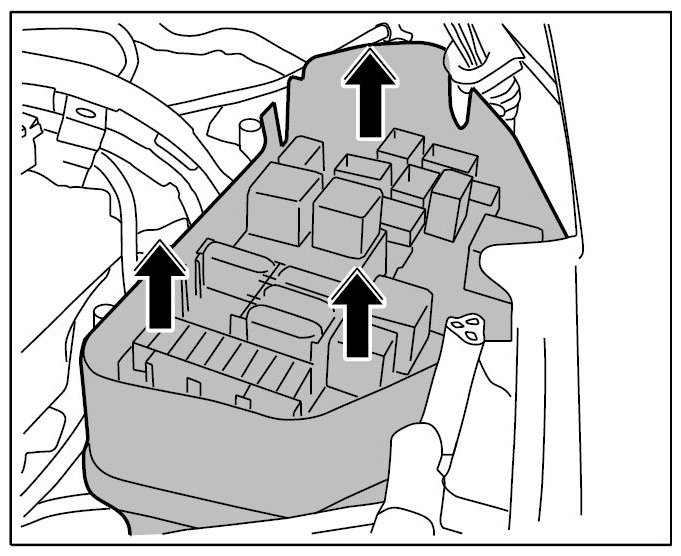

4. Lift relay carrier out and upwards -arrows-  .
   Fig 5: Pulling Relay Carrier Up And Out

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

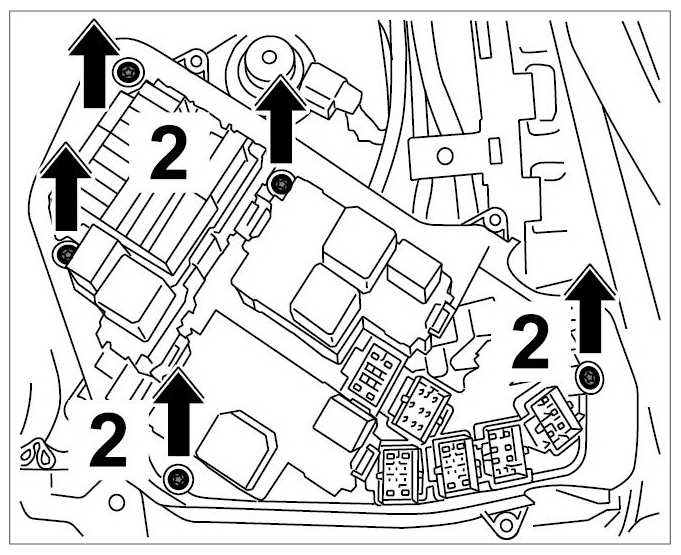

5. Unscrew fastening screws -arrows 2-  .
   Fig 6: Unscrewing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

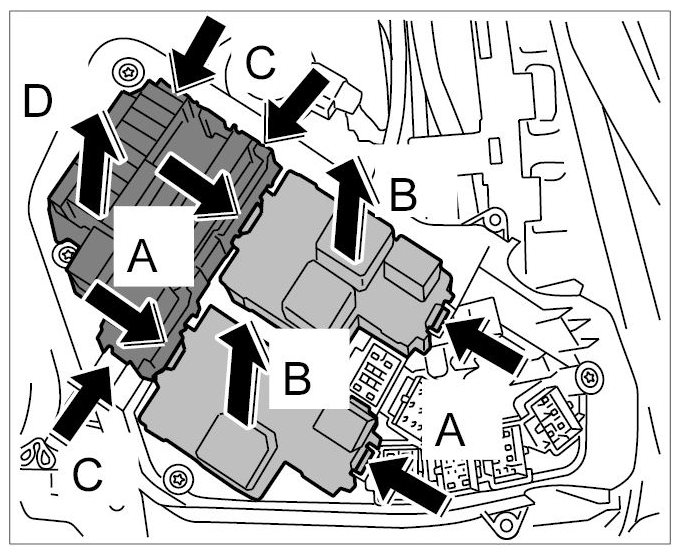

6. Release both relay carriers -arrows A-  and pull them up and out -arrows B-  .
   Fig 7: Releasing Both Relay Carriers And Pull Them Up And Out

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Release the fuse carrier -arrows C-  and pull it up and out -arrow D-  .

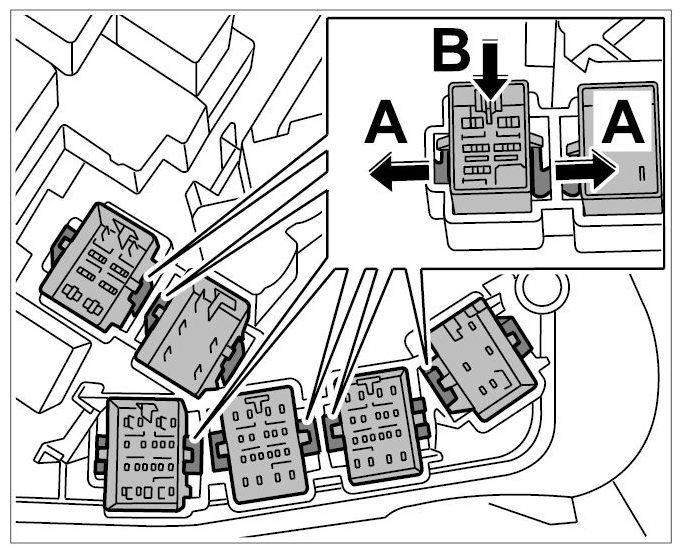

8. Release sockets -arrows A-  and press downwards and out -arrow B-  .
   Fig 8: Releasing Sockets And Press Downwards And Out

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove top half of casing.
10. Place harnesses to the side, pull bottom half of casing upwards out of bracket and remove.
