Installing Wiper Motor

Before attaching wiper motor to wiper linkage, connect wiper motor to electrical plug connection, close bonnet, operate one-touch wipe at least once and let motor run to the end position. Disconnect plug connection again.
Before attaching wiper arms, the wiper motor must be operated a second time at least once with one-touch wipe and run to the end position. Close bonnet.
Information
- If a new wiper motor is being installed, ensure that the correct Porsche original screws are used.

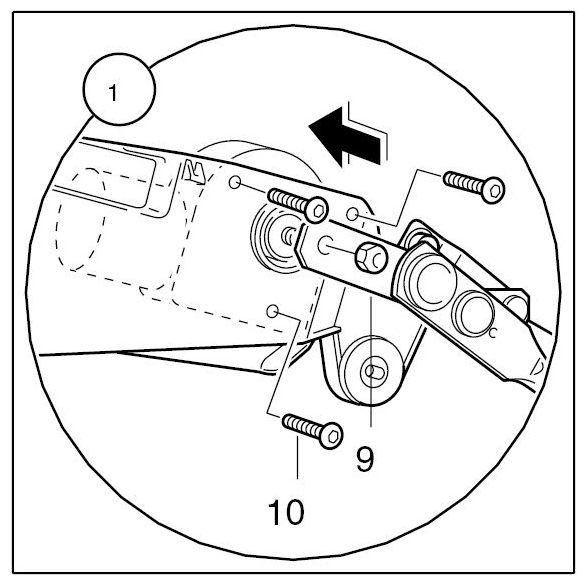

Fit wiper motor to wiper linkage and position it. Screw in fastening screws -10- and tighten to the specified tightening torque. → Tightening torque: 6.5 ftlb.

Fig 1: Installing Fastening Parts For Wiper Linkage
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

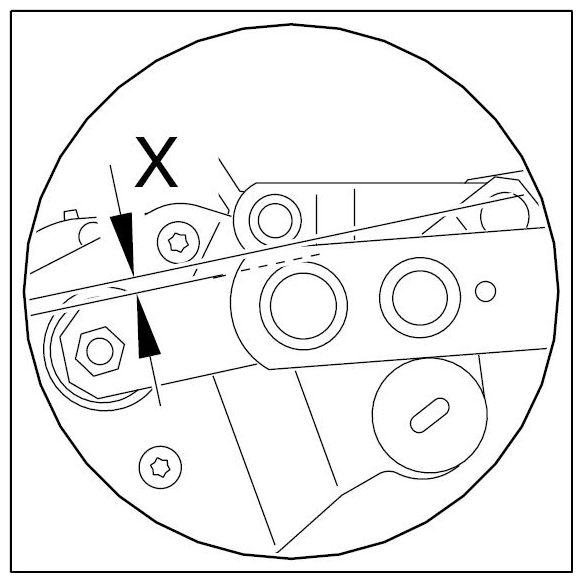

Place linkage on wiper shaft, position it, set dimension -X- = 4 mm between mechanical stop and motor crank (wiper motor) and tighten with fastening nut -9- . → Tightening torque: 13 ftlb.

Fig 2: Dimension Between Mechanical Stop And Motor Crank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

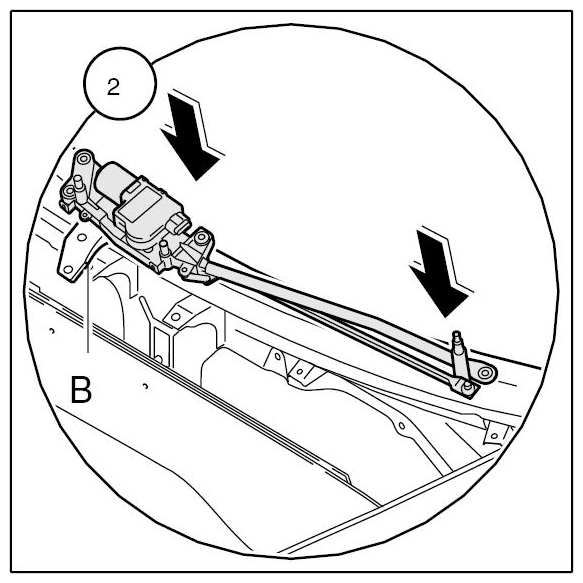

Position wiper system. Engage support -B- on the body, insert wiper motor with linkage downwards on the driver's side, rotate wiper linkage slightly and lay it down.

Fig 3: Installing Wiper Motor With Linkage
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe the order for the fastening screws.

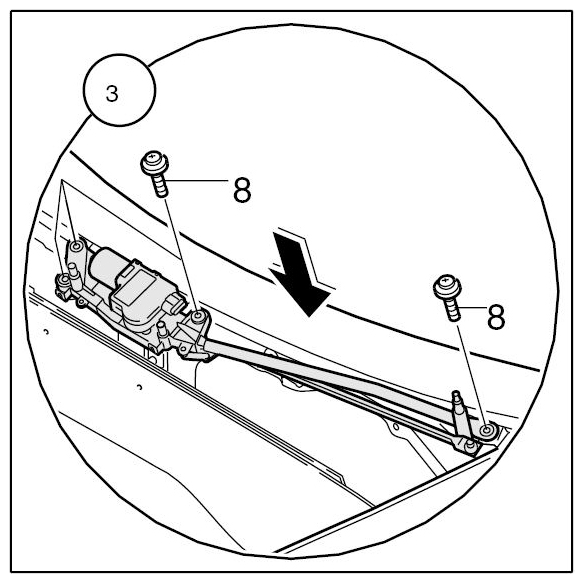

Position fastening screws -8- for wiper system and tighten beginning on the driver's side. → Tightening torque: 7.5 ftlb.

Fig 4: Fitting Fastening Screws For Wiper Linkage
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

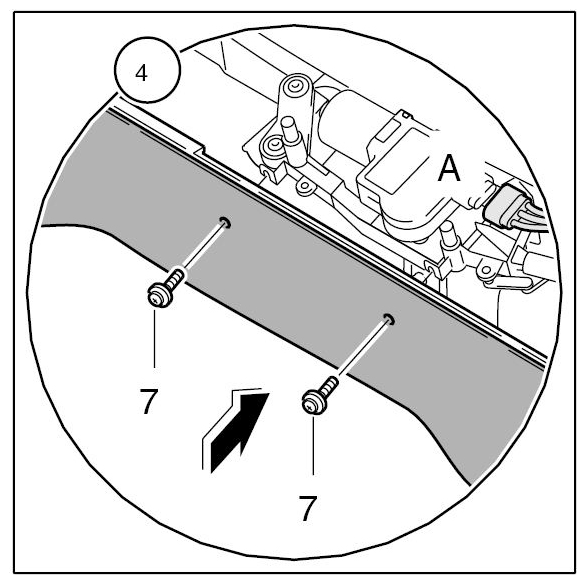

Connect electrical plug connection -A- .

Fig 5: Connecting Plug Connection For Wiper Motor And Tightening Front Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten front fastening screws for wiper system -7- . → Tightening torque: 6.5 ftlb.
