Subsequent Work

  1. Position engine to the compression TDC of cylinder 1.

    Pfeil  - Crankshaft/vibration balancer marking

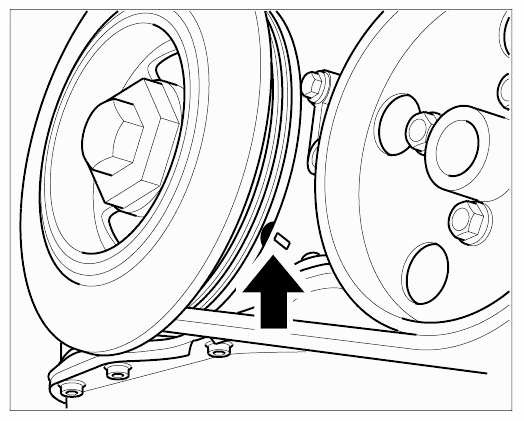

    Fig 1: Locating TDC Marking On Pulley And Housing Cover
    G09408960Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install cylinder head. → WM 157019 REMOVING AND INSTALLING CYLINDER HEAD ON V6 DFI ENGINES

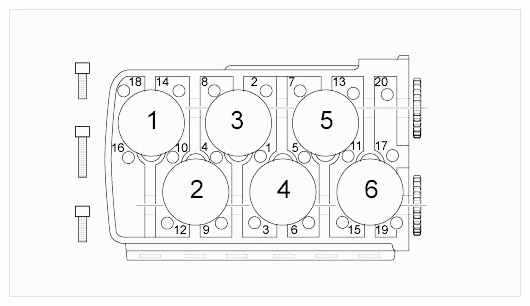

    Fig 2: Identifying Cylinder Head Screws Tightening Sequence
    G09408961Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    1-6  - Pistons of cylinders 1 - 6

    1-20  - Tightening sequence for cylinder-head screws → Initial tightening: 15 Nm (11 ft lbs.) Tightening torque: 30 Nm (22 ft lbs.) Torque angle: 180°

    1. 2.1. Thoroughly clean all sealing faces before assembly.
    2. 2.2. Cylinder head gasket must always be replaced  .
    3. 2.3. Always observe tightening sequence (1-20) for cylinder-head screws -1-20-  and tighten to the specified torque.
    4. 2.3.1. Tighten cylinder-head screws to an initial tightening torque of 15 Nm (11 ft lbs.).
    5. 2.3.2. Tighten cylinder-head screws to 30 Nm (22 ft lbs.).
    6. 2.3.3. Then tighten all cylinder-head screws a second time  to 30 Nm (22 ft lbs.).
    7. 2.3.4. And finally, tighten the cylinder-head screws to a torque angle of 180°.
  3. Fit timing chains. → WM 153519 REMOVING AND INSTALLING TIMING CHAINS ON V6 DFI ENGINES

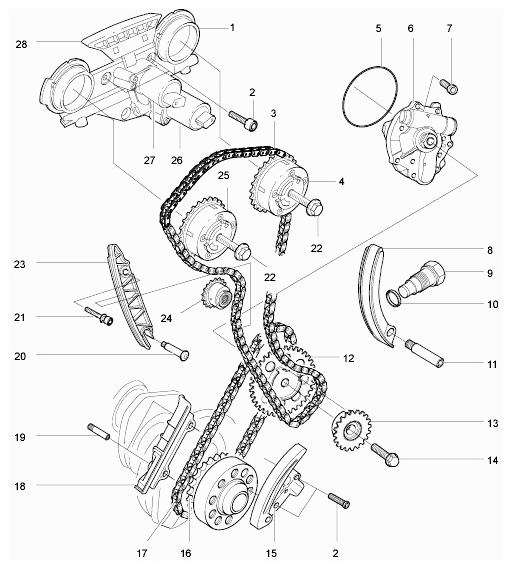

    Fig 3: Overview Of Timing Chain
    G09408962Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Timing chain housing
    2. Oval-head screw on timing chain housing → Tightening torque: 8 Nm (6 ft lbs.)
    3. Timing chain
    4. Outlet camshaft controller (marking 32 A)
    5. Sealing ring
    6. Oil pump
    7. Fastening screw on oil pump → Tightening torque: 8 Nm (6 ft lbs.)
    8. Tensioning rail
    9. Chain tensioner on timing chain → Tightening torque: 40 Nm (30 ft lbs.)
    10. Sealing ring (A22 x 27), always replace
    11. Bearing pin on guide rail → Tightening torque: 10 Nm (7.5 ft lbs.)
    12. Sprocket
    13. Drive wheel for timing chain
    14. Hexagon-head bolt → Initial tightening: 60 Nm (44 ft lbs.) Torque angle: 90°
    15. Chain tensioner for drive chain
    16. Drive gear wheel for drive chain
    17. Drive chain
    18. Guide rail for drive chain
    19. Bolt for guide rail → Tightening torque: 10 Nm (7.5 ft lbs.)
    20. Fastening screw on guide rail → Tightening torque: 20 Nm (15 ft lbs.)
    21. Hexagon-head bolt on guide rail → Tightening torque: 23 Nm (17 ft lbs.)
    22. Hexagon-head bolts on camshaft controllers → Initial tightening: 60 Nm (44 ft lbs.) Torque angle: 90°
    23. Guide rail for timing chain
    24. Drive gear wheel for high-pressure pump
    25. Intake camshaft controller (marking 24 E)
    26. Valve for outlet camshaft controller
    27. Valve for intake camshaft controller
    28. Guide rail
    1. 3.1. Install chain tensioner. → WM 153619 REMOVING AND INSTALLING CHAIN TENSIONER ON V6 DFI ENGINES
    2. 3.2. Install camshaft controllers. → WM 158419 REMOVING AND INSTALLING CAMSHAFT CONTROLLER ON V6 DFI ENGINES
  4. Check the timing. → WM 150502 CHECKING THE TIMING ON V6 DFI ENGINES
  5. Fit upper and lower timing-case cover. → WM 153319 REMOVING AND INSTALLING TIMING-CASE COVER ON V6 DFI ENGINES
    1. 5.1. Fit lower timing-case cover.

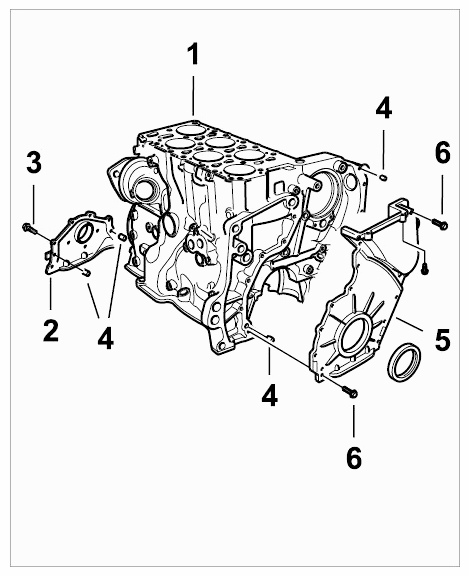

      Fig 4: Exploded View Of Lower Timing-Case Cover
      G09408963Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Cylinder block
      2. Vibration balancer joint flange
      3. Hexagon-head bolt on vibration balancer joint flange
      4. Straight pin, M8 x 18
      5. Lower timing-case cover
      6. Hexagon-head bolt on lower timing-case cover → Tightening torque: 10 Nm (7.5 ft lbs.)
    2. 5.2. Fit upper timing-case cover.

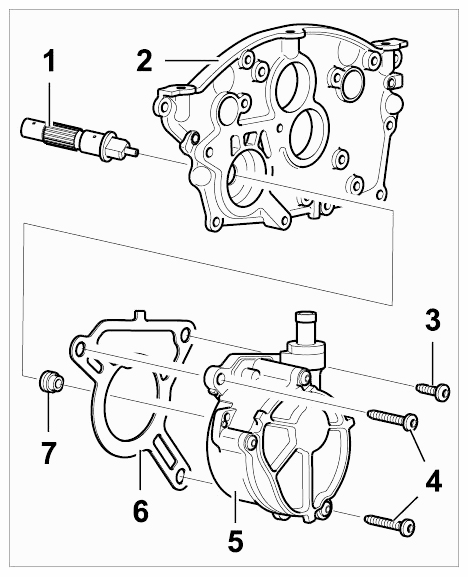

      Fig 5: Exploded View Of Upper Timing-Case Cover
      G09408964Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 1 - Drive shaft
      2. 2 - Upper timing-case cover
      3. 3 - Oval-head screw → Tightening torque: 8 Nm (6 ft lbs.)
      4. 4 - Oval-head screw on vacuum pump → Tightening torque: 8 Nm (6 ft lbs.)
      5. 6 - Seal
      6. 7 - Sealing ring
  6. Install oil pan. → WM 175019 REMOVING AND INSTALLING OIL PAN ON V6 DFI ENGINES

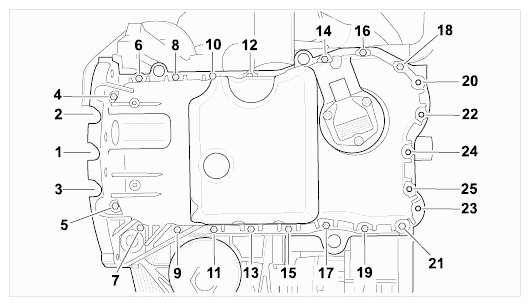

    Fig 6: Identifying Oil Pan Hexagon-Head Bolts Tightening Sequence
    G09408965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    1-25  - Hexagon-head bolts on oil pan → Tightening torque: 12 Nm (9 ft lbs.)

  7. Install cylinder head cover. → WM 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER ON V6 DFI ENGINES

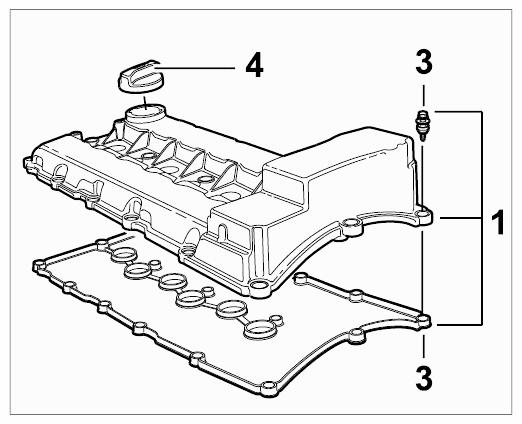

    Fig 7: Identifying Cylinder Head Cover, Gasket And Screws
    G09408966Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Cylinder head cover
    2. Cylinder head gasket
    3. Fastening screw on cylinder head cover → Tightening torque: 10 Nm (7.5 ft lbs.)
    4. Cover
  8. Install fuel distribution pipe and fuel injectors. → WM 243019 REMOVING AND INSTALLING FUEL DISTRIBUTION PIPE (FUEL RAIL) ON DFI ENGINES

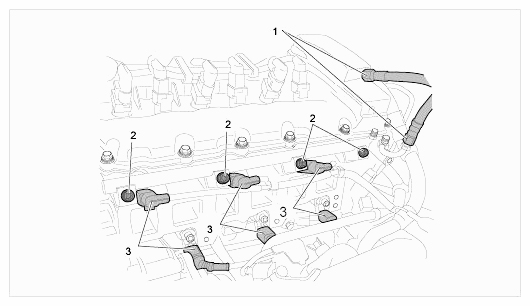

    Fig 8: Identifying Fuel Low-Pressure Line, Injection Valves And Fuel Distribution Pipe Bolts
    G09408967Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Fuel low-pressure line → Tightening torque: 22 Nm (16 ft lbs.) Tightening torque: 35 Nm (26 ft lbs.)
    2. Cheese head bolts on fuel distribution pipe → Initial tightening: 30 Nm (22 ft lbs.) Torque angle: 90°
    3. Injection valves
  9. Install intake-air distributor. → WM 244619 REMOVING AND INSTALLING DFI INTAKE-AIR DISTRIBUTOR
  10. Install guide tube for oil dipstick. Sealing ring must always be replaced. WM 171719 REMOVING AND INSTALLING GUIDE TUBE FOR OIL DIPSTICK ON DFI ENGINES
  11. Install bar ignition modules. → WM 282020 REMOVING AND INSTALLING DFI BAR IGNITION MODULES

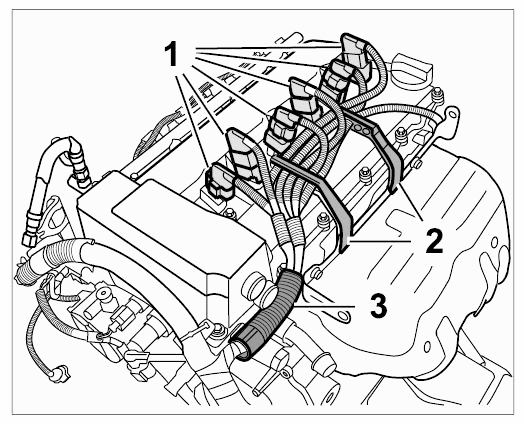

    Fig 9: Identifying Bar Ignition Module Connectors, Engine Wire Harness And Retaining Clips
    G09408968Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Connectors for bar ignition modules
    2. Retaining clips
    3. Engine wire harness
  12. Fit engine wire harness. → Removing wire harness for engine
  13. Remove engine from the mounting bracket. → 1001IN SUPPORTING V6 3.6-LITRE DFI ENGINE ON MOUNTING BRACKET
  14. Mount the transmission. → WM 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
  15. Install the engine. → WM 100119 REMOVING AND INSTALLING 3.6-LITRE DFI ENGINE
  16. Perform a test drive and check for leaks and correct function.
    1. 16.1. Clean the engine and carry out a thorough check for leaks after the test drive.
