Component Overview

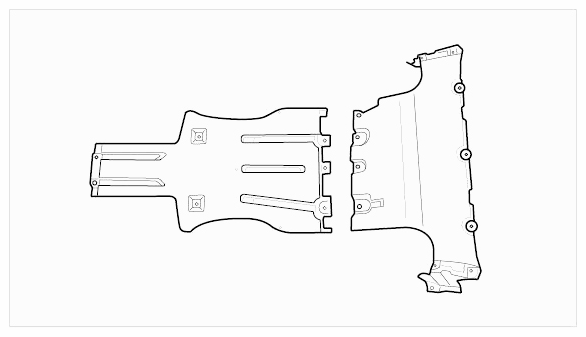

Fig 1: Component Overview Of Engine Cover (Complete)
G09408935Courtesy of PORSCHE CARS NORTH AMERICA, INC.

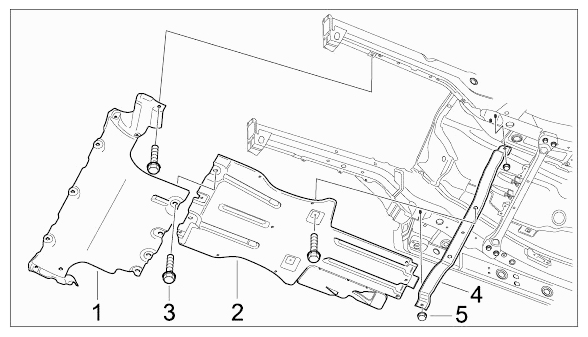

Fig 2: Component Overview Of Engine Cover Screws
G09408936Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Engine guard, front
  2. -2-  - Engine guard
  3. -3-  - Fastening screw M6
  4. -4-  - Transverse strut
  5. -5-  - Fastening nut M6
