Installing Oil Pan

  1. Position oil pan and screw in screws by hand. Align oil pan and tighten.

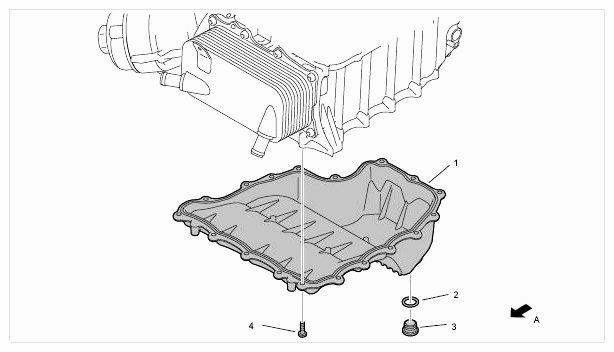

    Fig 1: Identifying Oil Pan Components
    G09409619Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Oil pan with reusable seal inserted
    2. Sealing ring
    3. Oil drain plug, M18 x 1.5 → Tightening torque: 50 Nm (37 ft lbs.)
    4. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ft lbs.)
    1. Direction of travel
