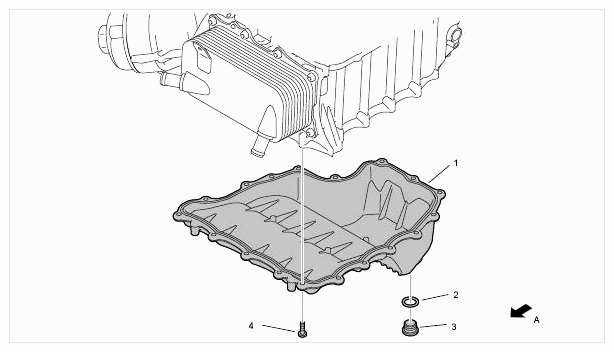

Component Overview
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Oil pan with reusable seal inserted
- Sealing ring
- Oil drain plug, M18 x 1.5 → Tightening torque: 50 Nm (37 ft lbs.)
- Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ft lbs.)
- Direction of travel
