Component Overview

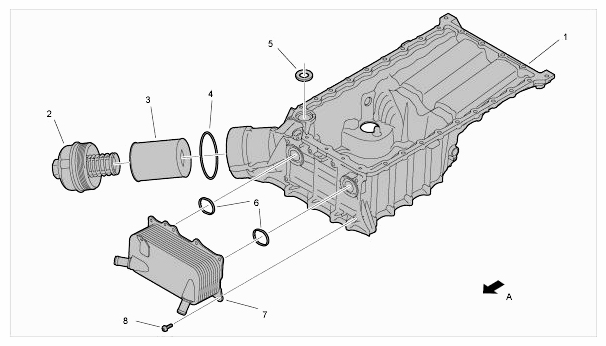

Fig 1: Identifying Oil/Coolant Heat Exchanger (Oil Cooler)
G09409567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil guide housing
  2. Oil-filter housing → Tightening torque: 25 Nm (19 ft lbs.)
  3. Oil filter
  4. Oil-filter sealing ring
  5. Oil duct adapter (cannot be replaced)
  6. Heat exchanger seal
  7. Oil/coolant heat exchanger
  8. Screw, M6 x 20; self-tapping screws ex-works; metric screws can also be used → Tightening torque: 10 Nm (7.5 ft lbs.)
  1. Direction of travel
