Removing Oil Pressure Control Valve (Solenoid Valve) On 4.8-Litre Dfi Engines

Information

The oil pressure control valve is fitted in the oil guide housing under the generator between the engine carrier -1-  and oil filter -2-  .

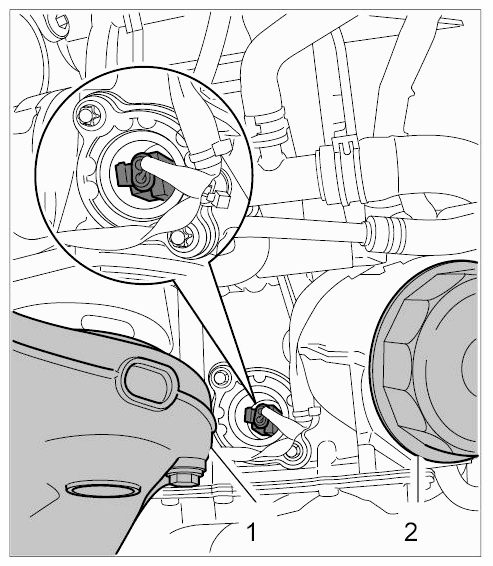

Fig 1: Identifying Installation Position Of Oil Pressure Control Valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Carefully grip the cable plug on the oil pressure control valve with a pointed-nose pliers and release it. Pull off cable plug.
2. Expose cable and set it aside. -cable-

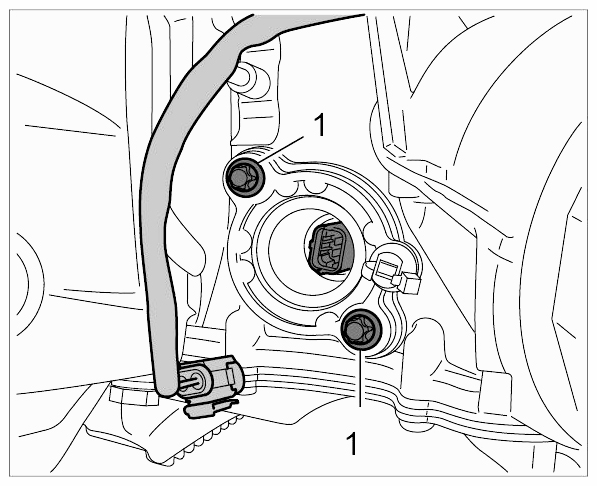

   Fig 2: Identifying Cable On Front Of Oil Pressure Control Valve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove screws on joint flange. -1-
4. Carefully lever off the joint flange with a screwdriver → Overcome the resistance of the two sealing rings on the oil pressure control valve while doing this.

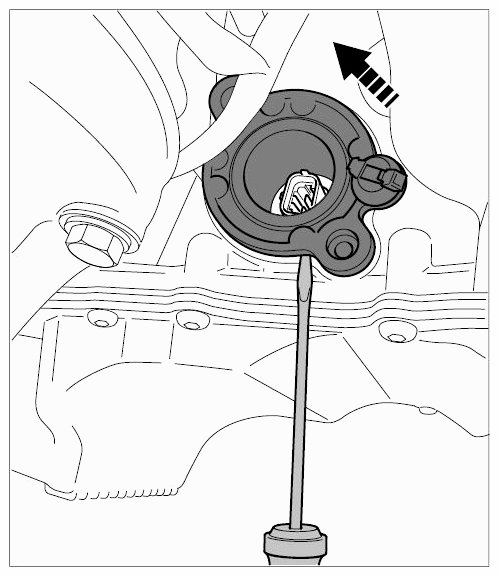

   Fig 3: Levering Off Joint Flange

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit special socket socket-wrench insert 9753  on a ratchet through the opening in the oil guide housing and loosen cap screw on oil pressure control valve.

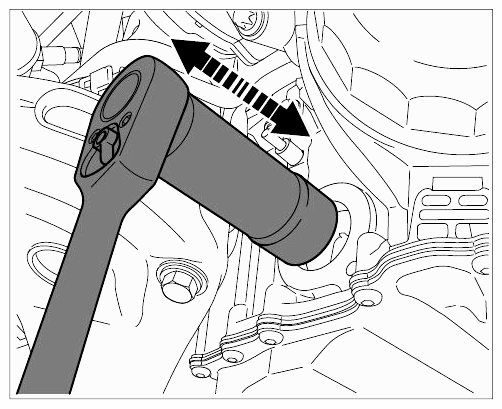

   Fig 4: Fitting Special Socket Socket-Wrench Insert 9753 On Ratchet Using Special Socket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Grip oil pressure control valve with a relay puller 9235  and turn carefully to remove it.

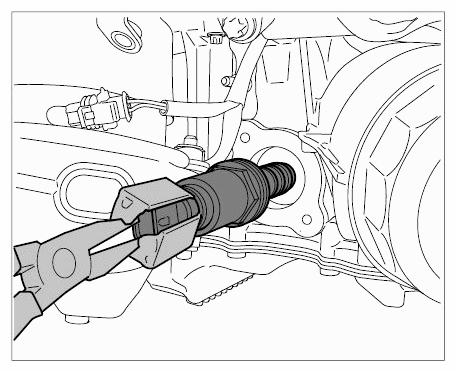

   Fig 5: Removing/Fitting Oil Pressure Control Valve

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
