Removing Oil Pump

  1. Unscrew the fastening screws on the oil pump -arrows-  .

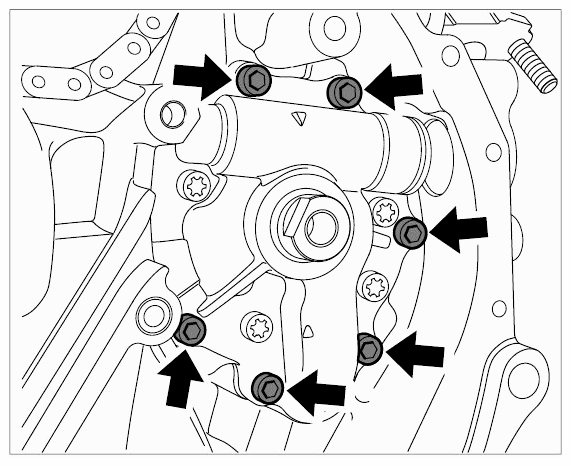

    Fig 1: Locating Fastening Screw On Oil Pump On V6 DFI Engine
    G09409507Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw threaded bolt -1-  into the oil pump shaft.

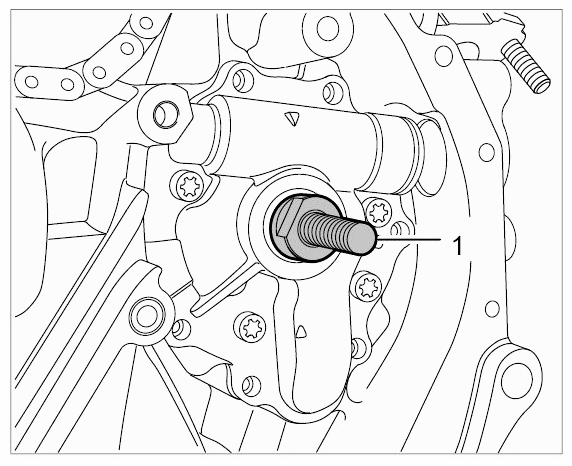

    Fig 2: Locating Threaded Bolt On Oil Pump On V6 DFI Engine
    G09409508Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position striker -2-  and carefully knock the oil pump out. Striker VW 771/1 Threaded part VW 771/15

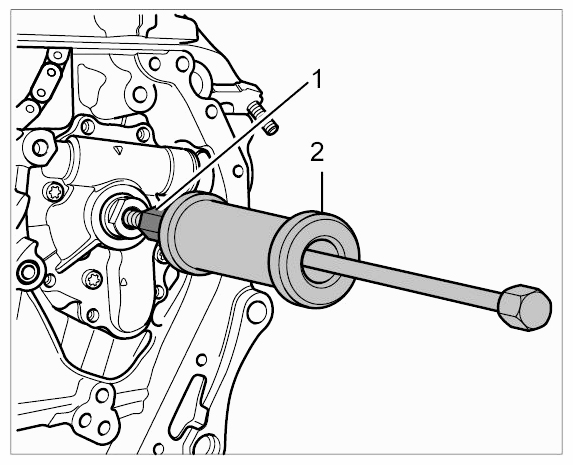

    Fig 3: Position Striker
    G09409509Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull striker off the oil pump.
