Removing Oil Pressure Sensor

  1. Pull off cable plug for oil pressure sensor.
  2. Place a cloth around the components. Collect dripping oil.
  3. Remove oil pressure sensor (oil pressure sender) with adapter -3 and 1-  . To do this, remove the two screws -4-  and pull the components straight off. Replace sealing rings.

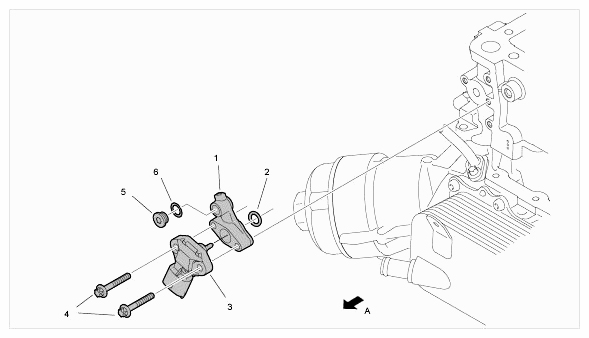

    Fig 1: Identifying Oil Pressure Sensor And Oil Pressure Measuring Point
    G09409530Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Oil pressure sensor adapter
    2. O-ring
    3. Oil pressure sender with temperature sensor
    4. Screw, M6 x 40
    5. Stopper; test connection
    6. Sealing ring
    1. Direction of travel
