Installing Oil Pressure Sensor

  1. Clean all traces of oil from installation location of oil pressure sensor.

    Information

    Do not turn the oil pressure sensor in the adapter. Risk of breakage!

    Do not break off sensor tips! Insert carefully.

  2. Move oil pressure sensor (oil pressure sender) with adapter and new sealing rings into installation position -3 and 1-  . Position and fit the two screws -4-  .

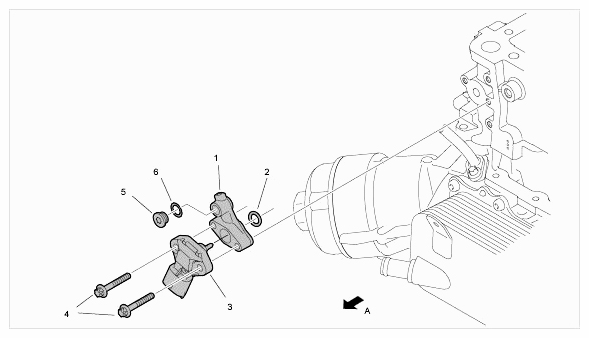

    Fig 1: Identifying Oil Pressure Sensor And Oil Pressure Measuring Point
    G09409531Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Oil pressure sensor adapter
    2. O-ring
    3. Oil pressure sender with temperature sensor
    4. Screw, M6 x 40 → Tightening torque: 10 Nm (7.5 ft lbs.)
    5. Stopper → Tightening torque: 15 Nm (11 ft lbs.)
    6. Sealing ring
    1. Direction of travel
  3. Connect cable plug for oil pressure sensor.
