Air cleaner housing for V6

  1. Remove the complete air cleaner housing.
    1. Pull out oil dipstick. -1-

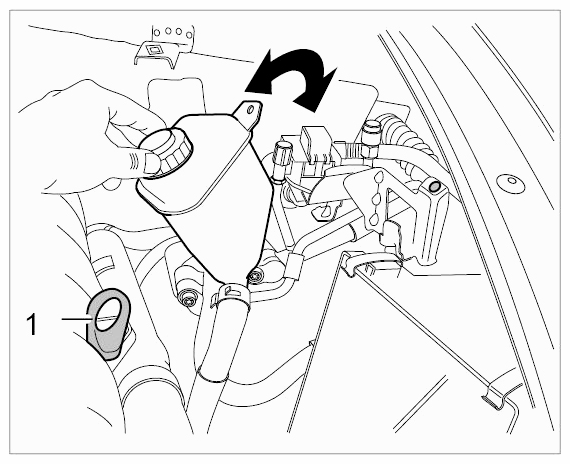

      Fig 1: Removing Oil Dipstick
      G09410016Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. Loosen fastening screw on power-steering oil reservoir and set the reservoir aside. Dipstick, power-steering oil reservoir
    3. Remove ground point for jump-lead starting underneath the wing next to the air cleaner housing with a cap nut.
    4. Remove screw on air cleaner housing -arrow-  . Pull air cleaner housing up out of the rubber holders

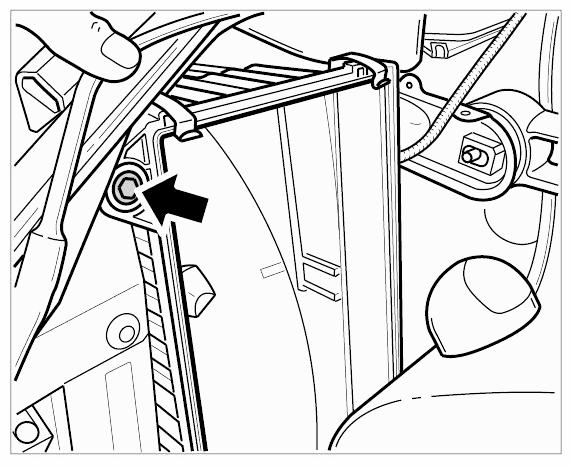

      Fig 2: Locating Air Cleaner Housing Mounting Screw (Right)
      G09410017Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    5. Press off air intake at the bottom of the air cleaner housing -arrow-  .

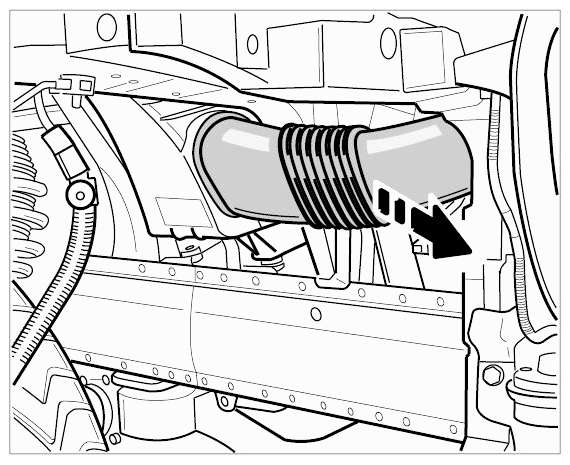

      Fig 3: Pressing Off Air Intake At Bottom Of Air Cleaner Housing
      G09410018Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    6. Turn the air cleaner housing and pull it up and out.

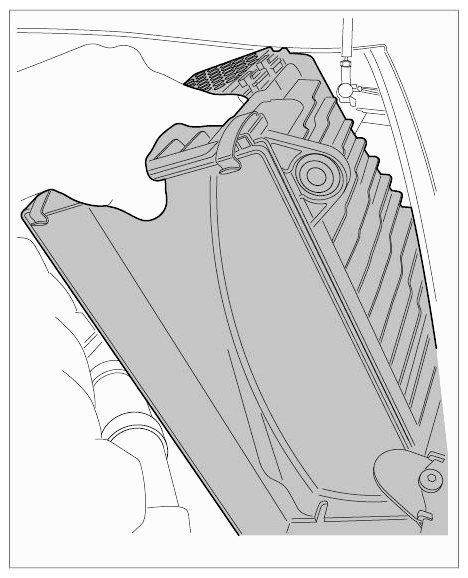

      Fig 4: Identifying Air Cleaner Housing
      G09410019Courtesy of PORSCHE CARS NORTH AMERICA, INC.
