Air cleaner housing for V6

Fit air cleaner housing in installation position.

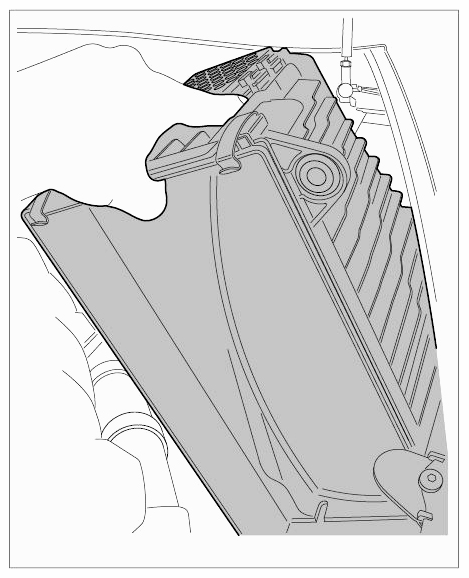

Fig 1: Identifying Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Introduce the two retaining bolts on the underside into the take-up bores in the body. Check the wheel well to make sure that the rubber washers are present and ensure that the bolts are properly fitted.

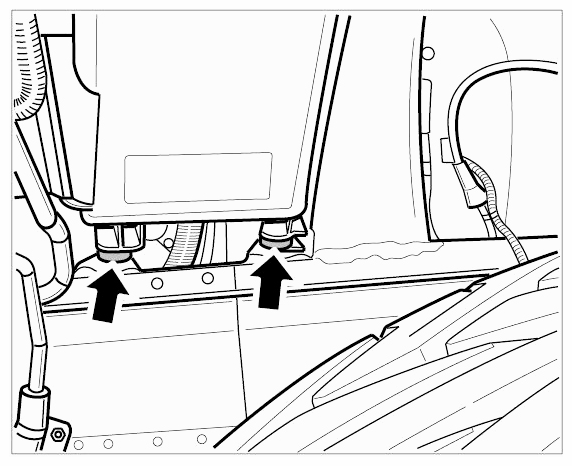

Fig 2: Locating Rubber Washers Fastening Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the fastening screw on the air cleaner housing. → Tightening torque: 10 Nm (7.5 ftlb.)

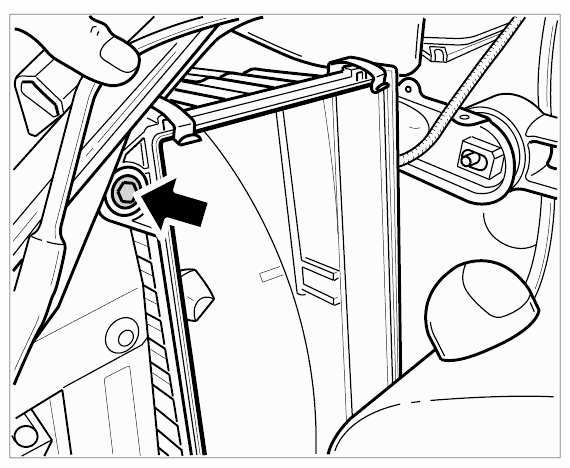

Fig 3: Locating Air Cleaner Housing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Replace the air guide on the air cleaner housing from the wheel well. Check that the air guide is installed correctly. Lubricate the bulb of the air cleaner housing with glycerine if necessary to make fitting easier.

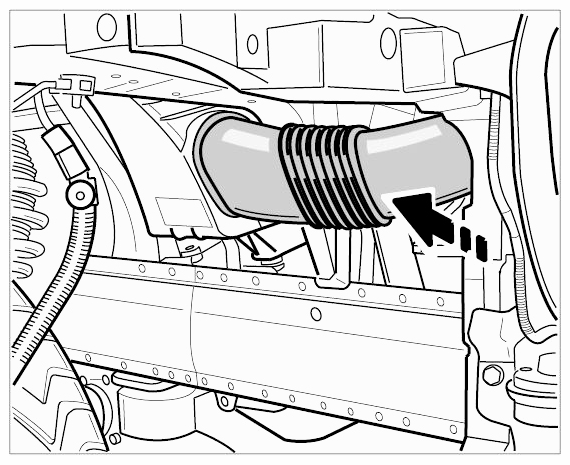

Fig 4: Removing Air Guide On Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure ground point, fit power-steering supply tank and insert oil dipstick.
