Removing Coolant Temperature Sensor

WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

→ Do not smoke, eat or drink in the work area.

WARNING: Hot fluid
  • Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

The coolant temperature sensor is installed in the coolant guide behind the engine wire harness. -2-

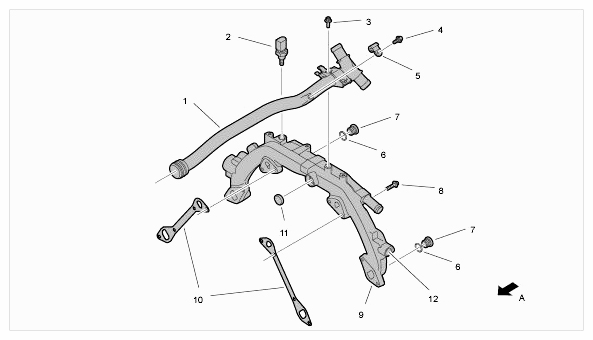

Fig 1: Identifying Coolant Guide Components
G09409760Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Coolant pipe with sealing ring
  2. Coolant temperature sensor
  1. 9 - Coolant guide (collection pipe)
  1. Pull off the cable plug for the temperature sensor -37-  between the bulkhead and the engine wire harness duct. To do this, carefully pull the cable duct forward and release and pull off the cable plug with a hook assembly tool T10118  .

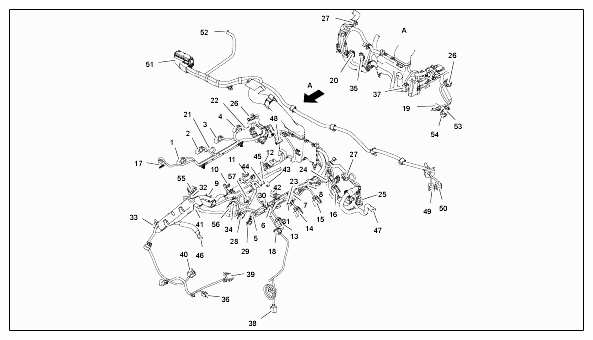

    Fig 2: Identifying Wire Harness Assignment
    G09409761Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 37 - Coolant temperature sensor
    2. A - Direction of travel
  2. Unscrew the coolant temperature sensor using a suitable socket. Close off the threaded bore so that only a small amount of coolant leaks out.
