Removing Radiator

Do not open the air-conditioning system if at all possible when removing the radiator module.  Do not bend the lines

Do not bend the lines when installing the radiator module.

Information

• The retaining clips should be mounted again immediately so that they are not confused.

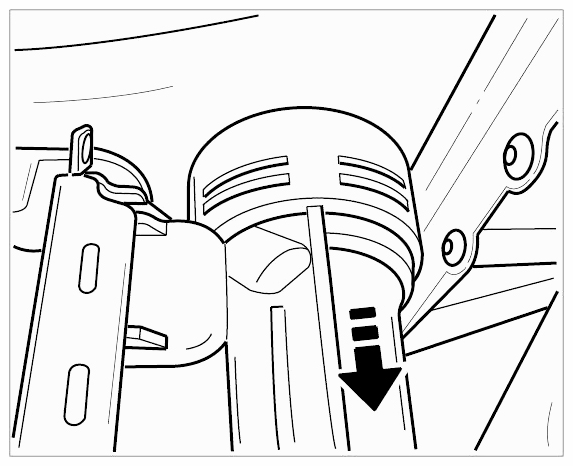

1. Remove coolant hoses on the radiator. To do this, pull out the safety clips on the two coolant flanges and pull off the hoses. Then fit the safety clips again so that they are not confused.
   Fig 1: Removing Radiator Coolant Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

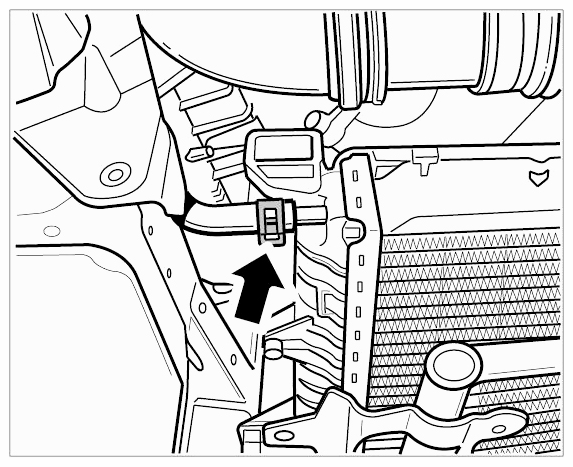

2. Pull off the top right vent hose on the radiator.
   Fig 2: Locating Breather Hose On Radiator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

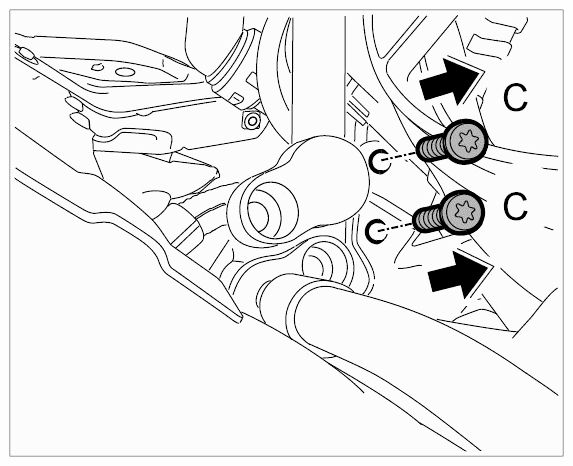

3. Unscrew both fastening screws -C- for securing condenser to the coolant radiator (left direction of travel).
   Fig 3: Removing Coolant Radiator Condenser Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

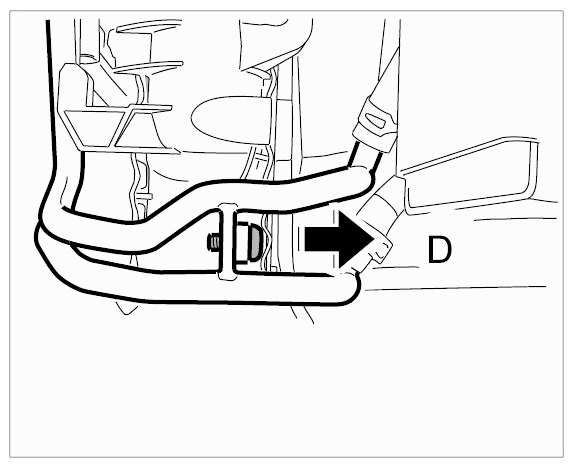

4. Unscrew the fastening screw -D-  (left direction of travel) for securing power steering radiator lines to coolant radiator.
   Fig 4: Removing Power Steering Radiator Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

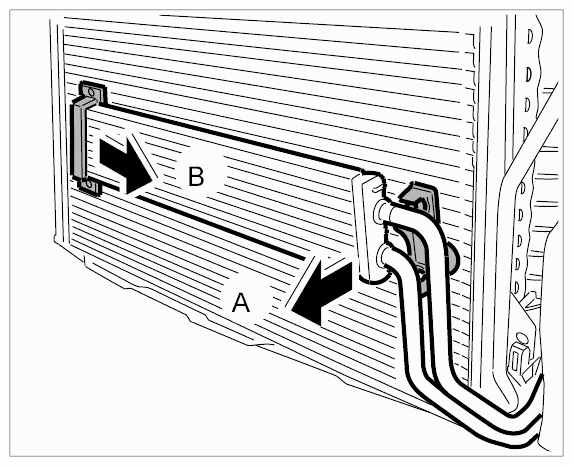

5. Unclip the power-steering cooler. To do this, unclip the lines to the front out of the holder -A-  and push it to the left out of the holder -B-  . Hang the radiator carefully downwards.
   Fig 5: Unclip Power-Steering Cooler Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

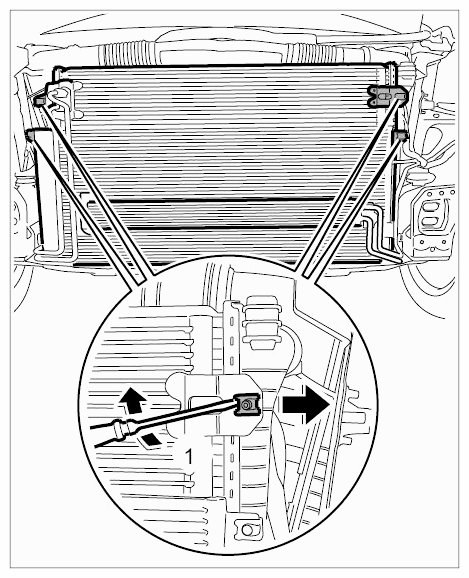

6. Lift both locks for the ATF cooler and air-conditioning condenser with a screwdriver -1-  and push them down -arrow-  .
   Fig 6: Removing ATF Cooler And Air-Conditioning Condenser Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Fix the remaining radiators in the installation position using tie wraps.

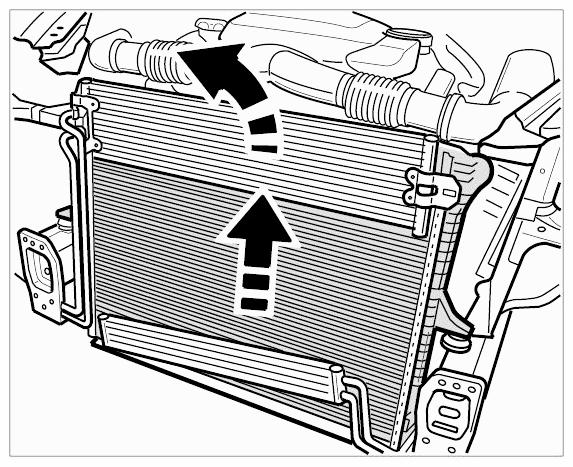

7. Lift up the radiator and take it out of the vehicle by moving it up and to the right. When doing this, watch out for the connection lines of the air-conditioning system on the left side.
   Fig 7: Lifting Cooler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

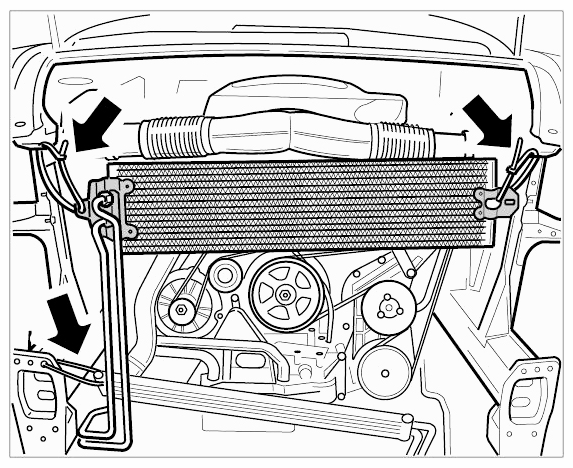

   Fig 8: Securing Power Steering System ATF Cooler And Radiator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
