Home >> Porsche >> 2008 >> Cayenne Base, Automatic >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Cooling System (Mechanical) >> 19 - Engine - Cooling >> WM 193817 Draining And Filling Coolant On DFI Engines (Includes Bleeding) (Except Cayenne Diesel, Cayenne S TRANSSYBERIA Tip, Cayenne TRANSSYBERIA Man, Cayenne GTS Tip "PORSCHE Design Edition 3") >> Tools And Materials >> Tools

Tools And Materials: Tools

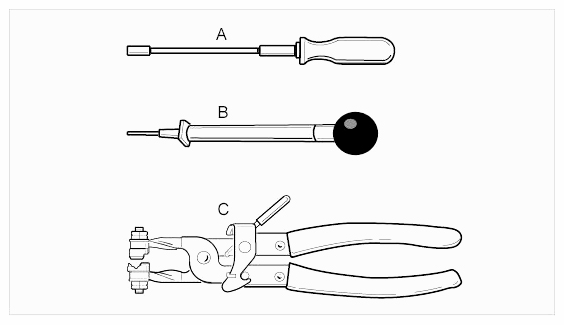

Fig 1: Identifying Special Tools
G09409663Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Flexible screwdriver a/f 7 (for loosening or tightening screw hose clamps) Flexible screwdriver a/f 7 Nr.73-1
  2. -B-  - Antifreeze testing device (for checking the antifreeze content in the cooling system. The design can deviate from that shown in the picture.)
  3. -C-  - Spring band clamp pliers (for opening and closing spring band clamps) Assembly tools for spring band clamps Nr.72

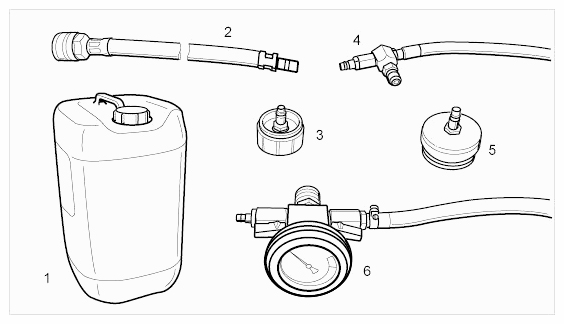

    Fig 2: Identifying Special Tools
    G09409664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Canister (canister with lifting tube, capacity approx. 30 l, with volume scale)
  2. -2-  - Hose extension
  3. -3-  - Adapter K 22 (Included with the radiator vacuum filling device) Not used for the Cayenne.
  4. -4-  - Venturi nozzle (Included with the radiator vacuum filling device)
  5. -5-  - Adapter K 65 (Included with the radiator vacuum filling device) For the Cayenne!  => (Installed in place of the cap on the coolant reservoir.)
  6. -6-  - Pressure gauge (Included with the radiator vacuum filling device)
