Tools And Materials: Notes

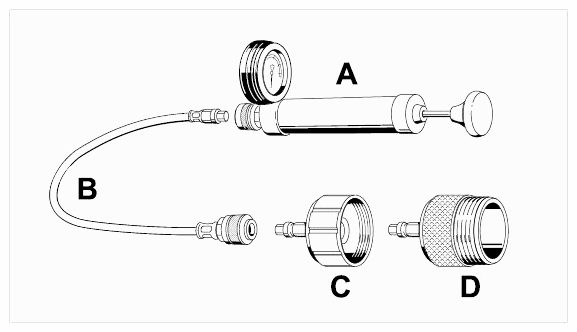

Fig 1: Identifying Tools
G09409624Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Cooling system leak tester (pump) Cooling system tester WE 1069
  2. -B-  - Hose extension FZ 100
  3. -C-  - K22 cap adapter (for sports cars)
  4. -D-  - K60 cap adapter (comes with filling device 9696  )

Antifreeze tester => Antifreeze and battery acid tester FT 2030 WE 1037  or Antifreeze and battery acid tester SUN-Duo-Check WE 1036
