Checking Engine Coolant Level

Information

Test conditions for checking engine coolant level =>

• Engine cold
• Vehicle parked horizontally on level ground

1. Remove maintenance flap over the coolant expansion tank.

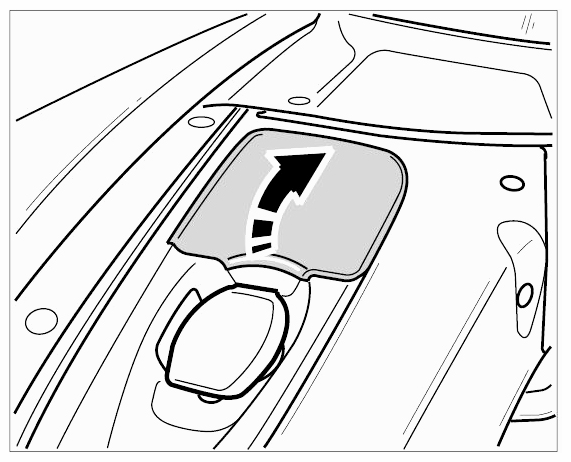

   Fig 1: Removing Maintenance Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew cap on coolant expansion tank.

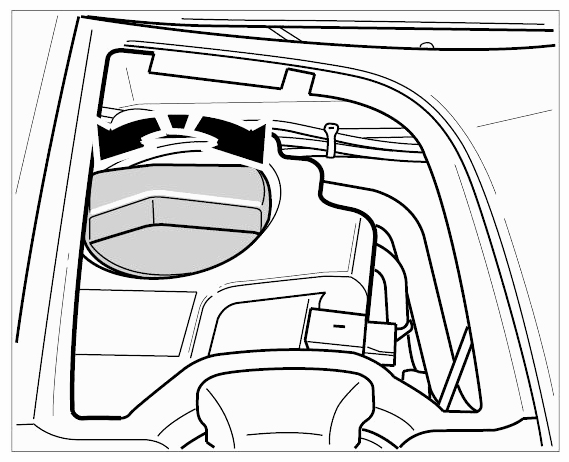

   Fig 2: Identifying Coolant Expansion Tank Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Check the engine coolant level. A graduated disc with a "Min" and "Max" marking is located in the opening of the expansion tank. → The coolant must be above the "Min" level. If the coolant is below the "Min" level, top up with approved antifreeze. If there is considerable coolant loss, the cause must be investigated.

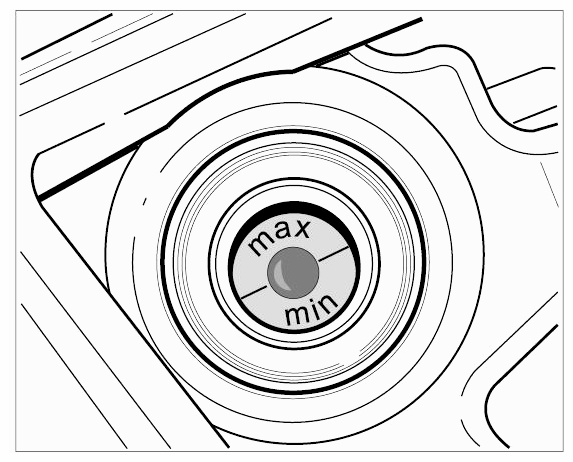

   Fig 3: Identifying Graduated Disc In Opening Of Expansion Tank

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Screw cap back on the coolant expansion tank.
   Fig 4: Identifying Coolant Expansion Tank Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Close the maintenance flap.
