Checking Coolant Antifreeze

Information

The following diagram shows the scale used by Leitenberger. Antifreeze and battery acid tester FT 2030 WE 1037
The scale can vary slightly, depending on the manufacturer.
The ETHYLENE scale must be used for Porsche antifreeze.
Other commercially available testers can also be used provided correct results are guaranteed.

Fig 1: Identifying Refractometer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

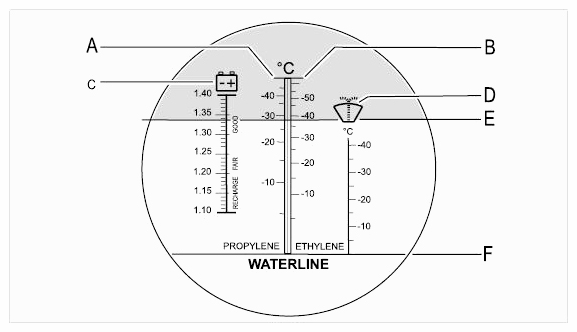

Item	Designation of the display	Explanation
-A-	Scale for propylene-based coolant	Do not use for engine type M48.
-B-	Scale for ethylene-based coolant	Coolant with Porsche approval for Cayenne Use for engine type M48.
-C-	Scale for battery acid	The charge state of a battery can be checked here. The values on the left side indicate the electrolyte gravity. The battery must be recharged once the electrolyte gravity falls below 1.20.
-D-	Scale for alcohol-based windscreen cleaner	The freezing point of the windscreen cleaner can be read off here.
-E-	Light/dark limit	In conjunction with the points of intersection of the relevant scales, it specifies the value to be established.
-F-	Waterline	The light/dark limit must be located here when sprinkled with distilled water.

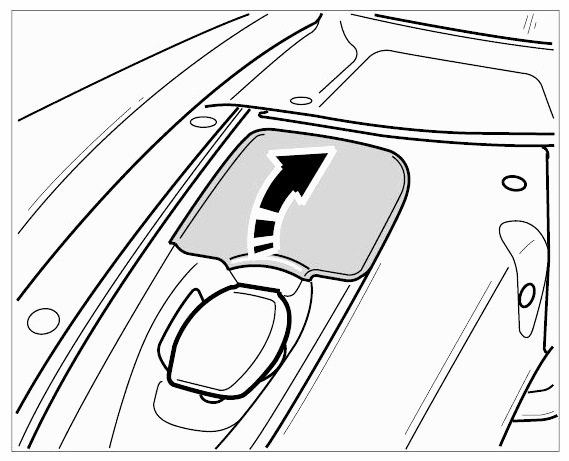

Remove maintenance flap over the coolant expansion tank.

Fig 2: Removing Maintenance Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

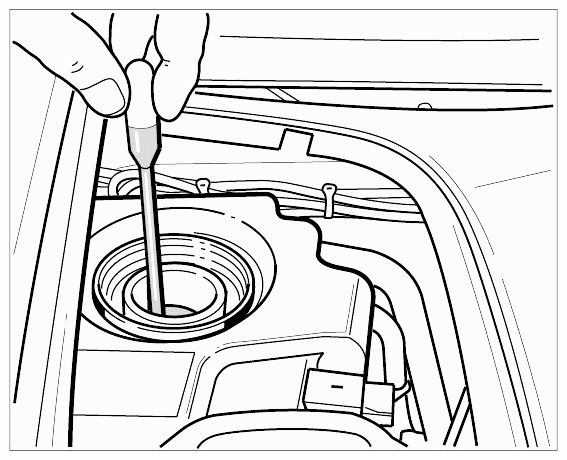

Using a pipette, take a sample from the coolant expansion tank.

Fig 3: Taking Sample From Coolant Expansion Tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

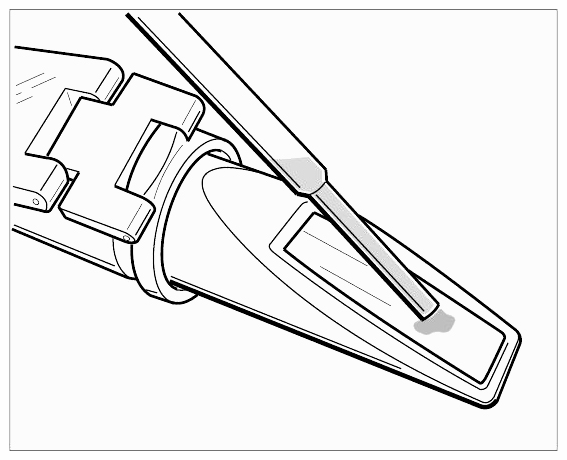

Deposit a few drops on the test surface.

Fig 4: Removing Depositing Drops On Test Surface
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

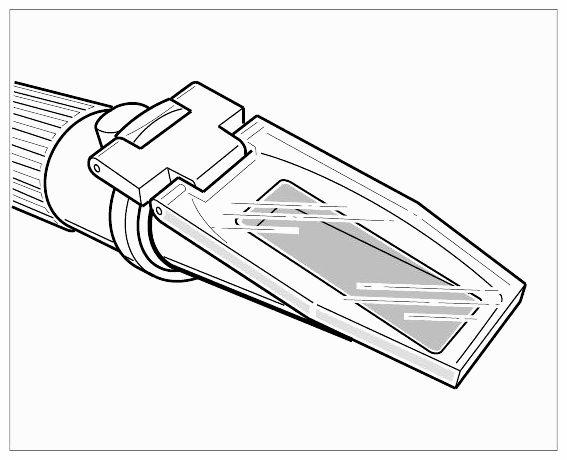

Close the light-diffusing lens. A closed film must form.

Fig 5: Closing Light-Diffusing Lens
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Using the refractometer, view against a very bright light source. A very clear light/dark limit emerges. The point of intersection between this line and the display scale marks the freezing point of the coolant.
A freezing point that is too low must be adjusted accordingly.
Close the maintenance flap.

Information

The following table specifies how much coolant must be replaced by pure antifreeze in order to adjust the freezing point to - 37 °C.

Measured antifreeze protection in °C	Antifreeze quantity to be added (in litres)
- 5	9
- 10	8.5
- 15	7.5
- 20	7
- 25	5
- 30	3.5
- 35	1.5
