Installing Boost Pressure Sensor

  1. Insert boost pressure sensor into the Y-pipe and install screw.
  2. Connect boost pressure sensor connector -position arrow-  .

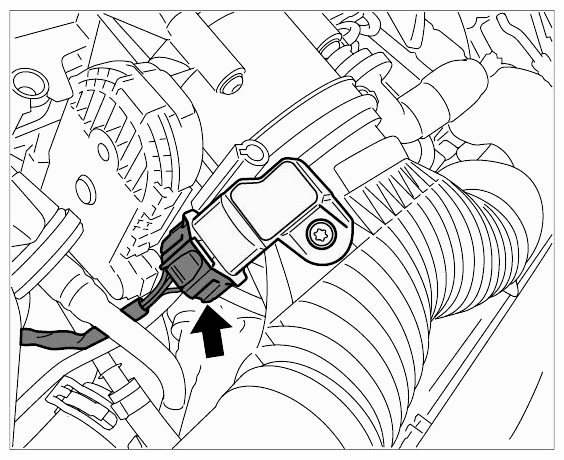

    Fig 1: Locating Boost Sensor Connector
    G09410004Courtesy of PORSCHE CARS NORTH AMERICA, INC.
