Removing The Starter

→ Disconnect the battery.

→ Prevent battery from reconnecting.

→ Cover the battery.

→ Remove ground terminal and cover the terminals.

→ Route electric lines without tensile strength.

→ Secure electric lines to existing lines/components.

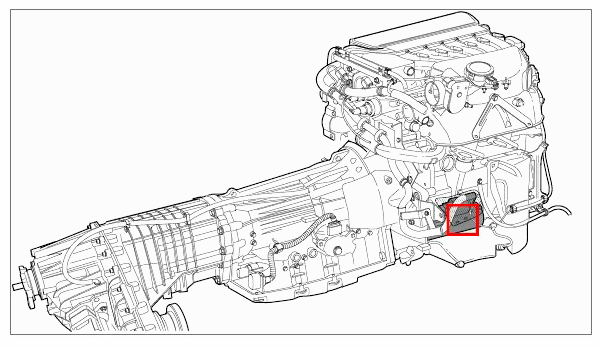

Fig 1: Identifying Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Open the press-studs -Arrow-  and remove the heat insulation cover on the solenoid switch.

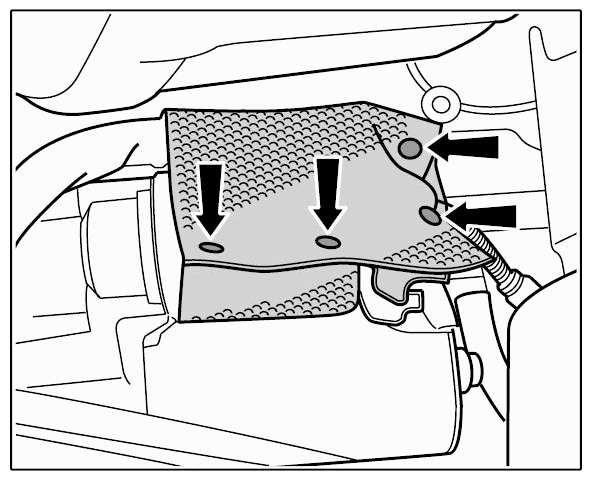

   Fig 2: Identifying Heat Insulation Cover Push Button

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull off protection cap -Arrow A-  .

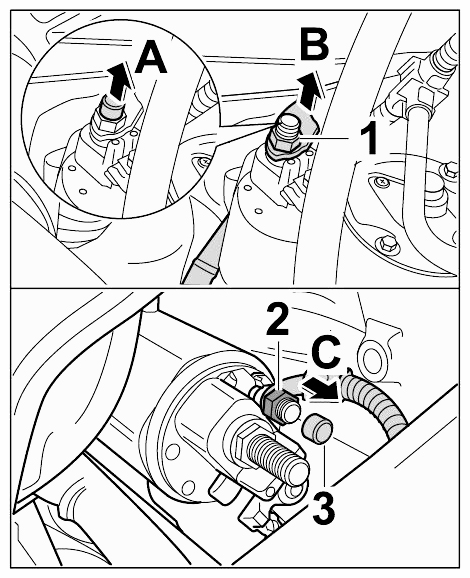

   Fig 3: Disconnecting Lines On Starter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw off the fastening nut -1-  and take the line off the threaded pin -Arrow B-  .
4. Pull off protection cap -3-  (-Arrow C-  ).
5. Screw off the fastening nut -2- and take the line off the threaded pin -Arrow C-  .
6. Undo fastening screw -Arrow 3-  and pull holder away in a downward direction -Arrow A-  .

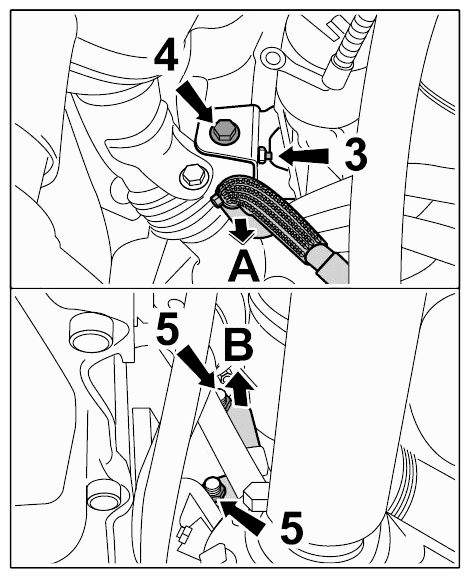

   Fig 4: Pulling Holder From Starter

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Unscrew the fastening screw -Arrow 4-  .
8. Screw off the fastening nuts -Arrows 5-  and take out the holder -Arrow B-  . To do this, turn the holder slightly if necessary.
9. Unscrew fastening screw -Arrow 6-  on the transmission side of the starter.

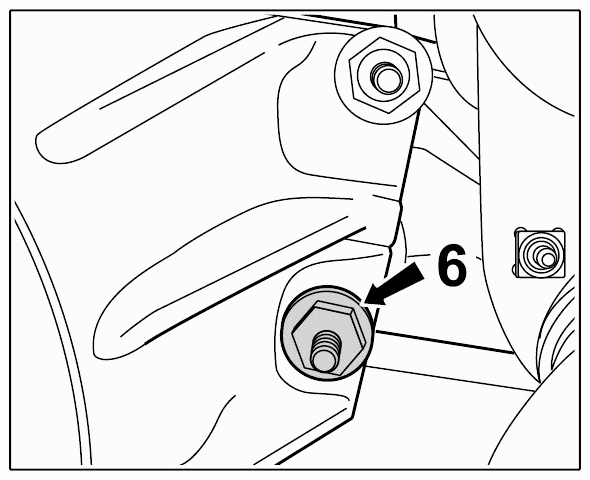

   Fig 5: Locating Starte7r Fastening Screw (On Transmission Side)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Unscrew the fastening screw -Arrow 7-  .

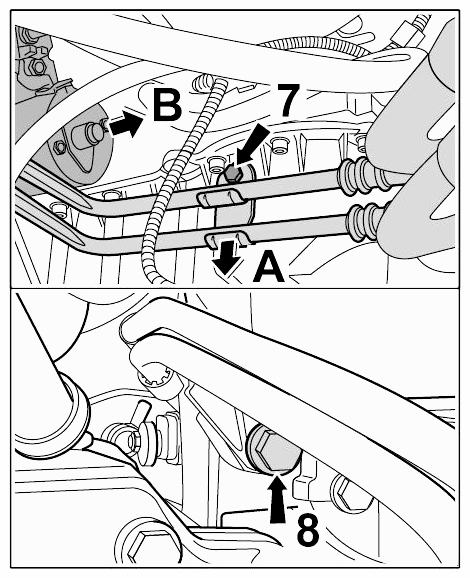

    Fig 6: Removing Starter

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Unscrew lower fastening screw -Arrow 8-  of the starter.
12. Pull the line carefully downwards -Arrow A-  and remove the starter -Arrow B-  . Turn the starter if necessary.
