Installing Stabiliser

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

• The entire threaded joints of the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on the wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -X-  , from lower edge of wing to middle of axle 506 mm ±10 mm corresponds to vehicle position.

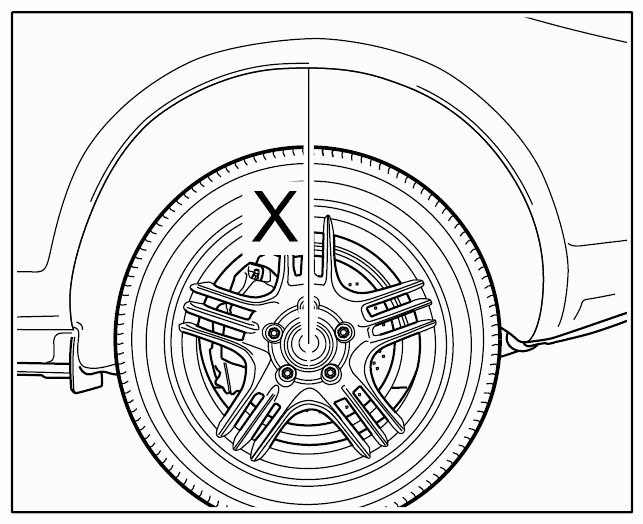

  Fig 1: Identifying Vechicle Position Mark

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Visually inspect all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws which are fitted with torque angle tightening procedure).
• Use correct tightening torques and torque angle  . → WM 4200TW TIGHTENING TORQUES FOR REAR AXLE

1. Fit the → see Fig 2 anti-roll-bar halves at the previously applied marking on the anti-roll bar. The larger outer diameter of the halves of stabiliser bearing is on the wheel side.

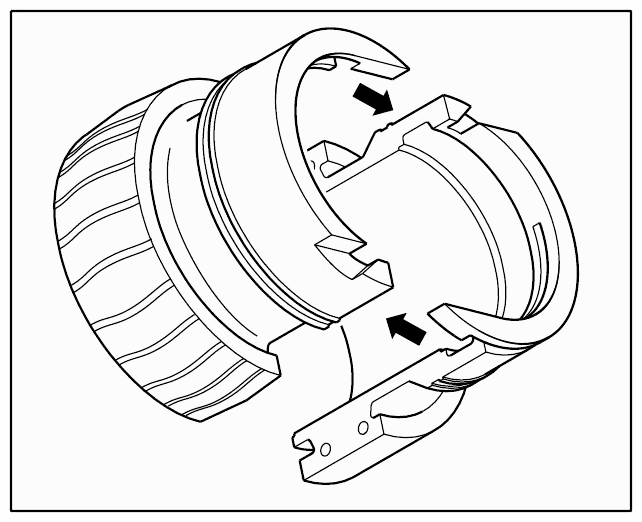

   Fig 2: Fitting Anti-Roll-Bar Halves

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Engage stabilizer bearing halves at the take-up points provided -arrow-  .

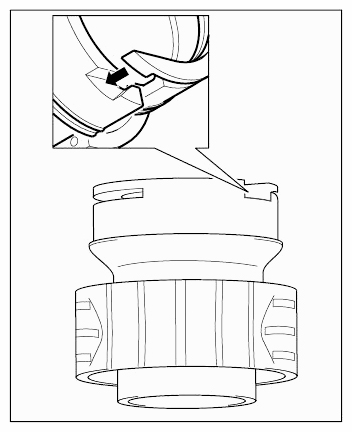

   Fig 3: Locating Stabilizer Bearing Halves At Take-Up Points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Position anti-roll bar and fit clamps with the four fastening screws. Fit connecting rods to anti-roll bar.
4. Tighten the four anti-roll bar fastening screws.
