WM 398819 Removing And Installing Four-Wheel Final Drive (Except Cayenne GTS Tip "PORSCHE Design Edition 3"): Tools
| Designation | Type | Number | Description | |
|---|---|---|---|---|

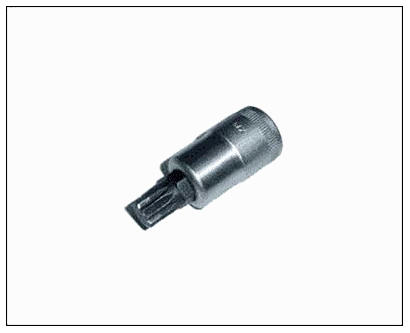

| multiple-tooth socket-wrench insert M12 | Commercially available tool | Nr.31 | ||

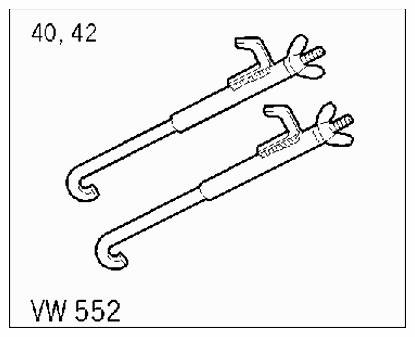

| spring compressor | VW tool | VW 552 |
TECHNICAL VALUES
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Final drive to front-axle carrier | Initial tightening | 90 Nm (67 ft lbs.) | |||
| Final drive to front-axle carrier | Final tightening | 90° |
