Changing Oil For Four-Wheel Final Drive

Place oil collecting container underneath the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil drain plug -B- and drain the oil.

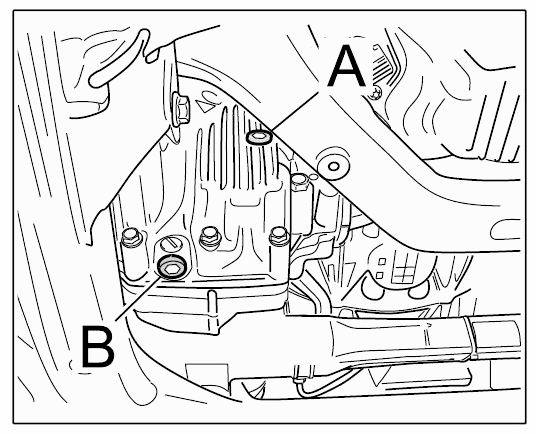

Fig 1: Identifying Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil drain plug -B- with a new sealing ring. → Tightening torque: 35 Nm
Unscrew oil inspection plug using the special inserts model AB 170 tool.

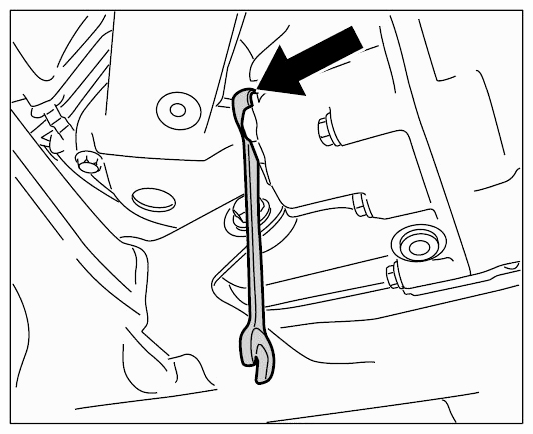

Fig 2: Loosening Oil Inspection Plug Using Special Inserts Model AB 170 Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Use only oil approved by Porsche.
Using the ATF filling device for filling transmission 161 , fill with oil up to the lower edge of the oil inspection plug -A- .

Fig 3: Inspecting Oil And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew oil inspection plugs -A- using the special inserts model AB 170 tool accessory for torque wrench: open ring wrench insert a/f 13 + adapter 98-1 and screw in a new sealing ring. → Tightening torque: 35 Nm

Fig 4: Identifying Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
