Topping Up Oil For Final Drive

→ Let the fluid cool down.

→ Wear personal protective gear.

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

• Vehicle must be horizontal in order to fill rear final drive.

1. Unscrew oil inspection plug -A-  .

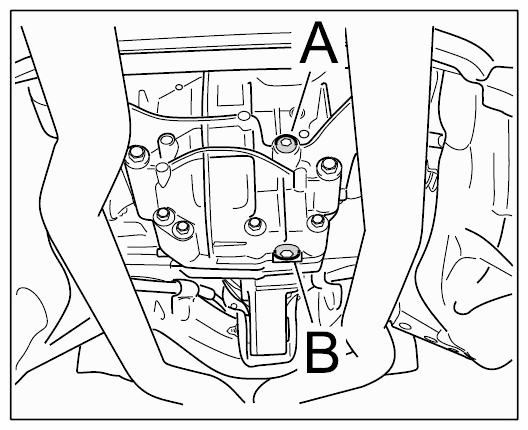

   Fig 1: Identifying Rear Final Drive Control/Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Use only oil approved by Porsche.

2. Use the ATF filling device for filling transmission Nr.161  to fill with oil up to the lower edge of the inspection plug -A-  .
3. Screw in oil inspection plug -A-  with a new sealing ring. → Tightening torque: 35 Nm (26 ft lbs.)

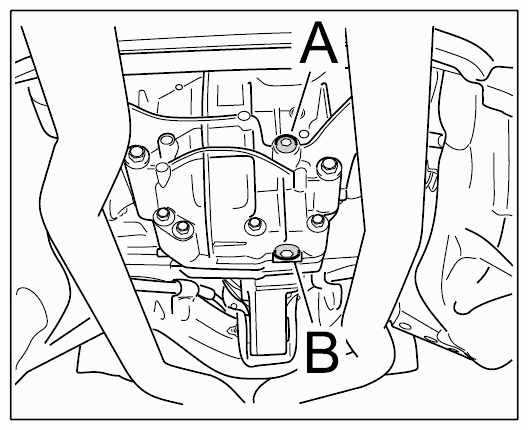

   Fig 2: Identifying Rear Final Drive Control/Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
