Installing all-wheel final drive

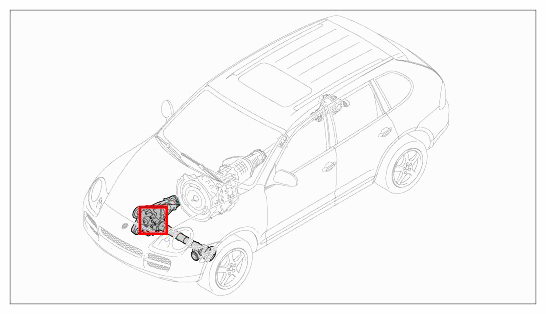

Fig 1: Overview Of Front-Axle Final Drive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

CAUTION: Risk of damage to ATF lines and pressure line for power steering.

→ Protect ATF lines with water hose or similar.

→ The servo line must not be crushed or stretched.

Information

A second fitter is required for removing/installing the four-wheel final drive.

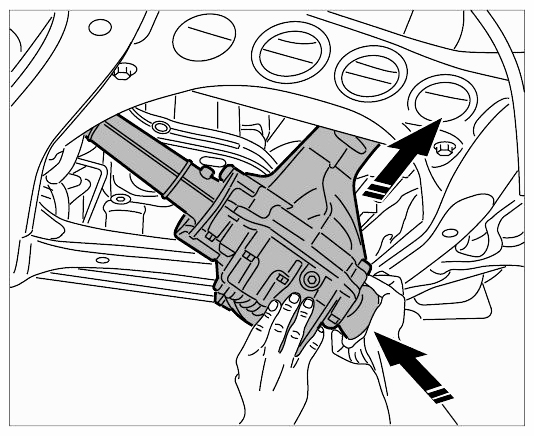

Swivel left flange of final drive in over the front-axle carrier.
Rotate drive flange upwards and install final drive through the front-axle carrier.

Fig 2: Installing All-Wheel Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

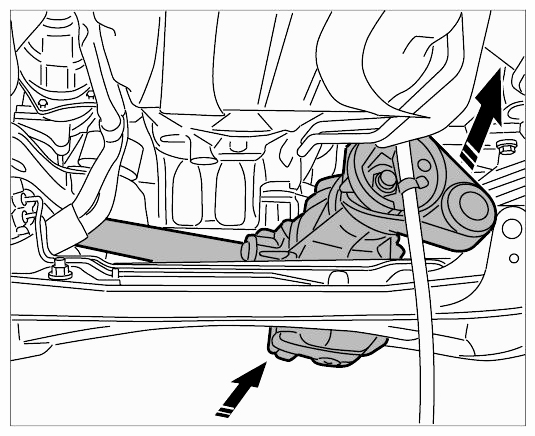

Insert right drive shaft into output flange and place final drive into the mounts on the front-axle carrier.

Fig 3: Installing All-Wheel Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

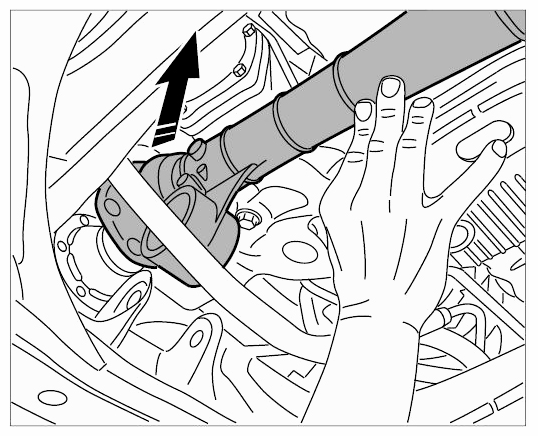

Fit left drive shaft by lifting the final drive output flange.

Fig 4: Fitting Left Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The front right fastening screw for the four-wheel final drive -left arrow- can only be screwed in with the front-axle carrier lowered.

  Fig 5: Locating VAG Bolts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

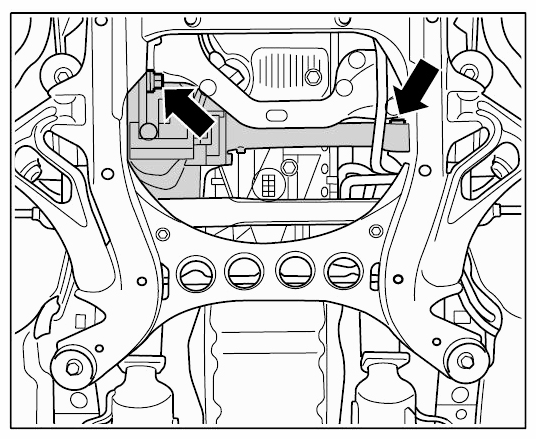

Insert fastening screws -arrows- for all-wheel final drive and screw for drive flange.

Fig 6: Locating VAG Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Supports 1, 4 and 7 must be fitted to the unit lifting platform.
Raise front-axle carrier with unit lifting platform until it is touching the body. Connect vent line at the same time.
Information
- For details of tightening torques for running gear parts, see → WM 4000TW Tightening torques for front axle .

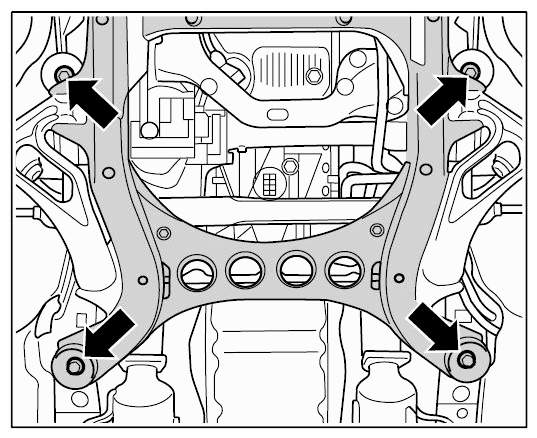

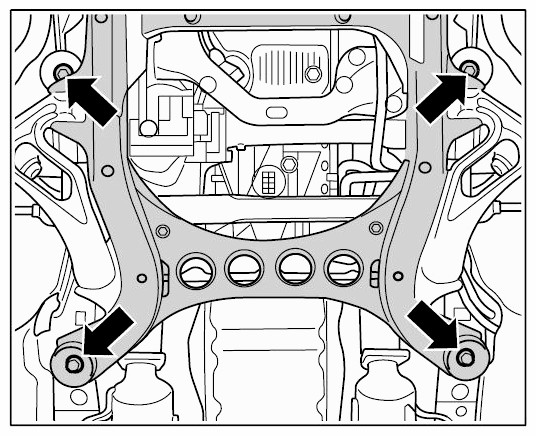

Screw in bolts -arrows- on front-axle carrier.

Fig 7: Locating Front-Axle Carrier Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

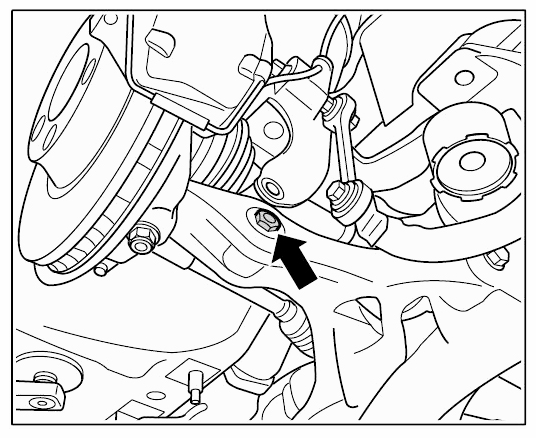

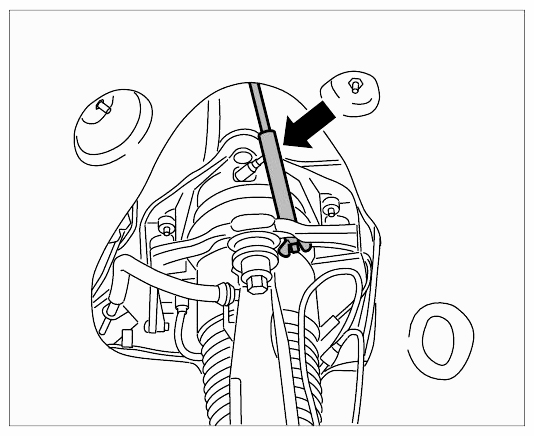

Screw in bolt -arrow- connecting spring strut to trailing arm.

Fig 8: Locating Connecting Spring Strut To Trailing Arm Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

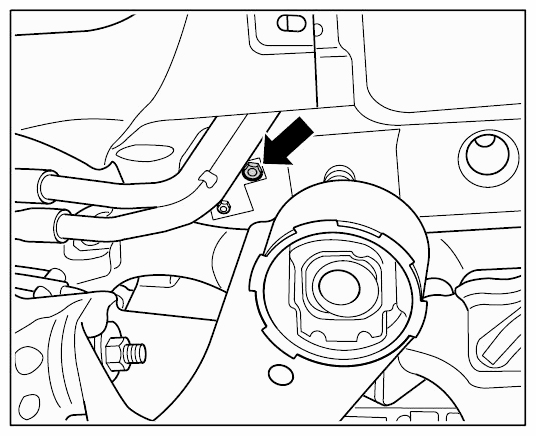

Fit holders -arrow- for coolant pipes to the body.

Fig 9: Locating Coolant Pipe Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

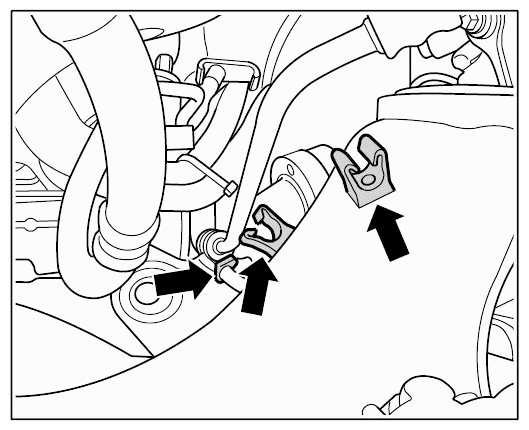

Engage servo line in the three holders -arrows- on the front-axle carrier.

Fig 10: Locating Servo Line Holders
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

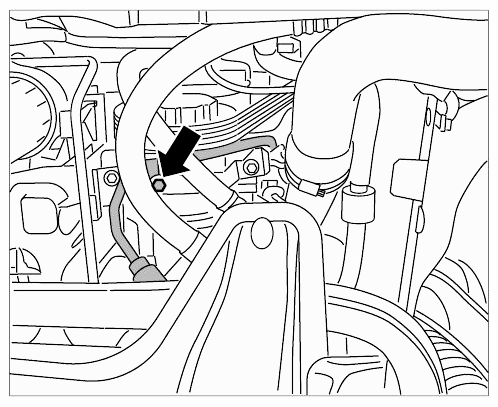

Screw servo line holders -arrow- on to air-conditioning compressor and clip in the line.

Fig 11: Locating Air-Conditioning Compressor Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Screws which are tightened with a torque angle must be replaced with new ones.
Tighten fastening screw for all-wheel final drive. → Initial tightening: 90 Nm (67 ft lbs.) → Final tightening: 90°
Information
- For details of tightening torques for running gear parts, see → WM 4000TW Tightening torques for front axle .
Screw in drive shaft screws.

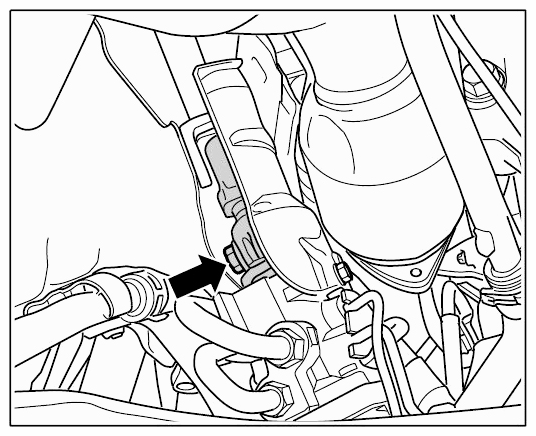

Connect steering column to steering gear. Screw in new screw.

Fig 12: Locating Steering Column Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover plate on the steering.

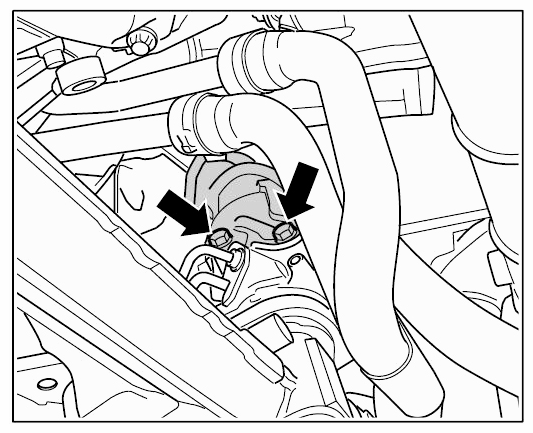

Fig 13: Locating Steering Cover Plate Mounting Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect Servotronic plug to the steering gear.
Remove special tool spring compressor VW 552 from the spring strut.

Fig 14: Locating Installation Position Of Spring Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

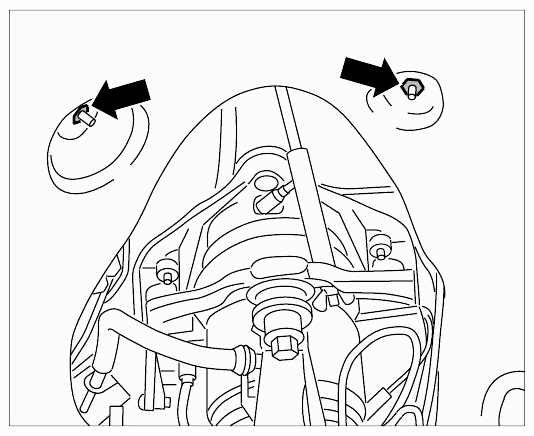

Screw in plastic nuts -arrows- on front right wheel housing liner.

Fig 15: Locating Wheel Housing Liner Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

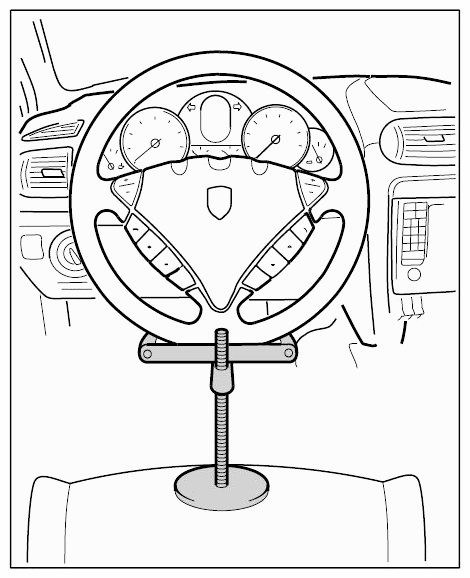

Remove steering-wheel holder -figure- .

Fig 16: Supporting Steering Wheel Using Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- For details of tightening torques for running gear parts, see → WM 4000TW Tightening torques for front axle .
Tighten bolts -arrows- on front-axle carrier.

Fig 17: Locating Front-Axle Carrier Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
