Tools And Materials

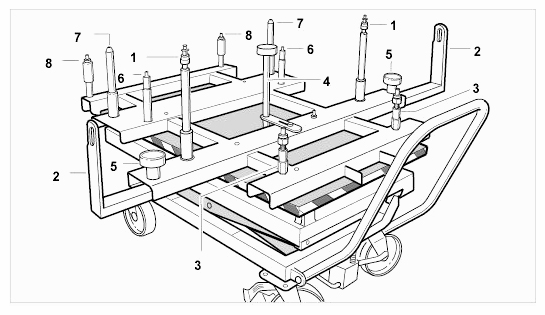

Fig 1: Identifying Lifting Platform
G09411004Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Assembly mandrel  => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier
  2. Wheel hub holder  => Secures the spring struts to prevent them from tipping. Inserted from the side into the second cross member from the front
  3. Assembly mandrel  => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier
  4. Support  => Not used here.
  5. Wishbone support  => Used in conjunction with -5-  to protect the wheel suspension and spring struts from damage.
  6. Assembly mandrel  => For mounting on the front-axle carrier at the rear. Item 3 in base carrier
  7. Assembly mandrel  => Guide for positioning the lifting platform into the body; first moves into a bore in the body for centring roughly. Item 4 in base carrier
  8. Assembly mandrel  => For mounting on the transmission cross member. Item 5 on base carrier

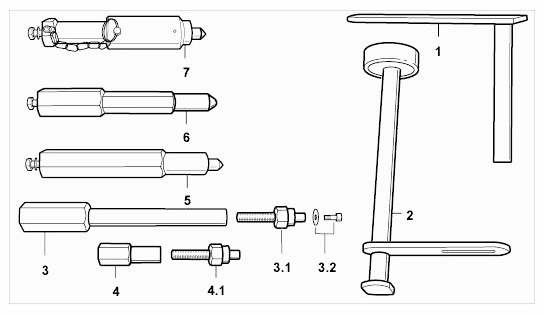

    Fig 2: Overview Of Tool
    G09411005Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Wheel hub holder  => Secures the spring struts to prevent them from tipping.
  2. Support  => Prevents the engine from tipping backwards. Not generally used.
  3. Lateral mounting mandrel for engine carrier  => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier
    1. 3.1 - Support with height adjustment  => Screwed into part 3.
    2. 3.2 - Protection against tipping  => Screwed into Part 3.1. Prevents the engine from tipping forward.
  4. Front front-axle carrier mounting  => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier
    1. 4.1 - Support with height adjustment  => Screwed into part 4.
  5. Rear front-axle carrier mounting  => Item 3 in base carrier
  6. Mounting in the body  => Item 4 in base carrier
  7. Mounting for transmission cross member  => Item 5 in base carrier

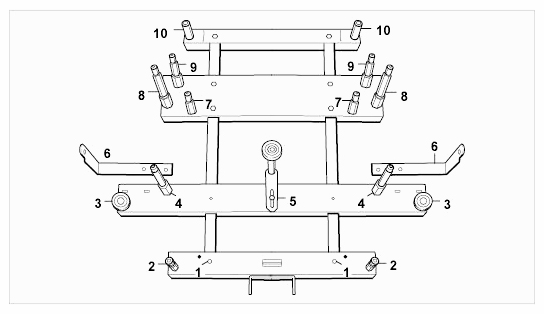

    Fig 3: Identifying Base Carrier And Mounting Mandrels Complete Structure
    G09411006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    2, 5 und 8  - Not used for removing engine!

    1 - Screw in mounting mandrel for front-axle carrier at the front (instead of "2")
