Installing Sealing Ring For Cardan Flange

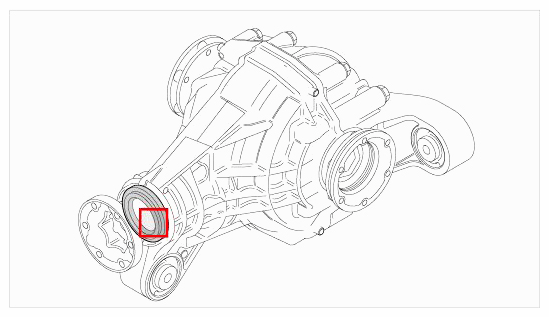

Fig 1: Overview Of Cardan Flange Sealing Ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive in sealing ring with special tool pressure piece T10182 until special tool touches transmission housing.

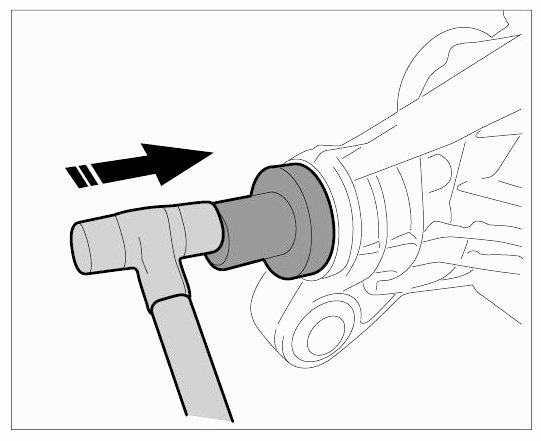

Fig 2: Installing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in flange and screw in nut.
Information
- A second fitter is required for loosening/tightening the flange
Position marking on nut and drive shaft -arrow- again so that the rolling moment determined prior to removal is reached once again.

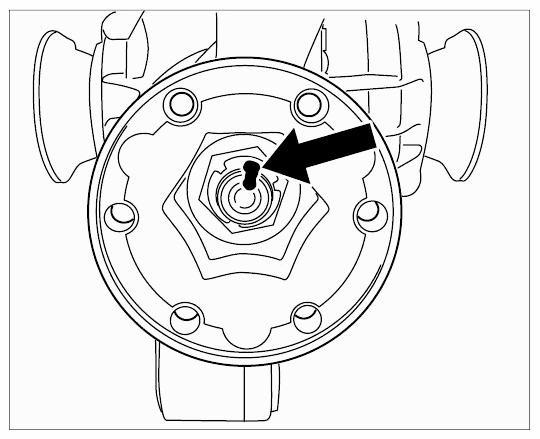

Fig 3: Locating Marking Nut On Drive Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- If the rolling moment has to be corrected, this should be done via the tightening torque of the nut.
Check rolling moment with special tool torque screwdriver for measuring friction moment Nr.89. → Rolling moment: 2.4 Nm-0.2 Nm+0.2 Nm

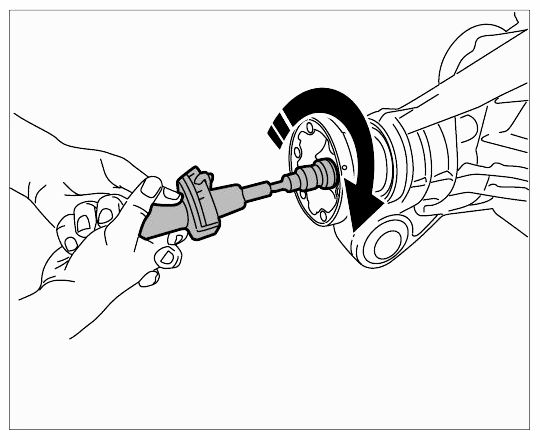

Fig 4: Checking Rolling Moment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
