Installing Sealing Ring For Cardan Flange

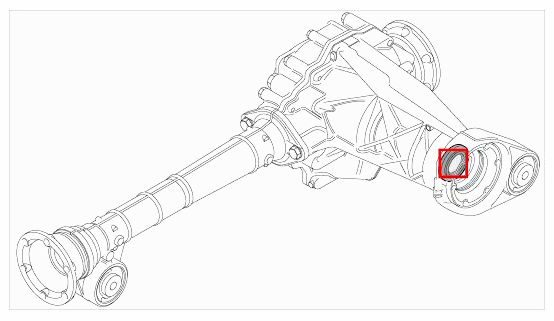

Fig 1: Overview Of Cardan Flange Sealing Ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

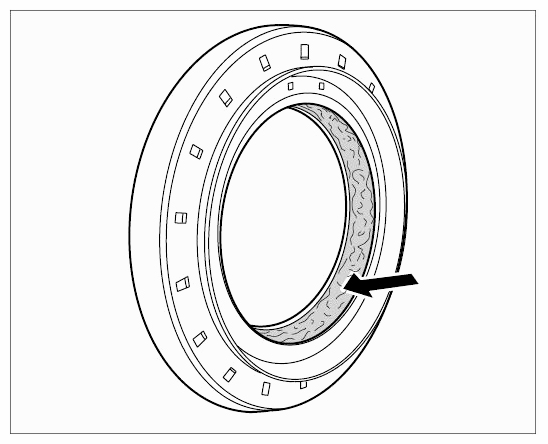

Fill space between dust and sealing lips with grease.

Fig 2: Locating Greased Area On Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

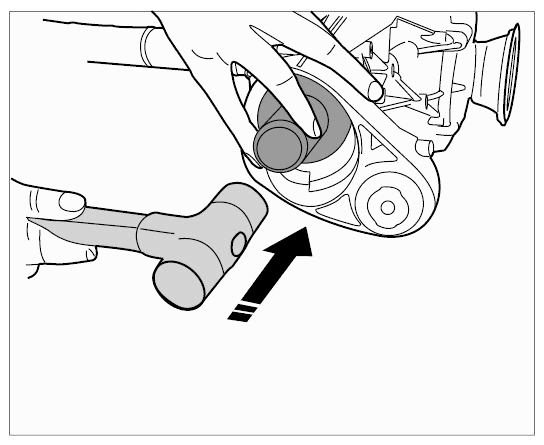

Drive sealing ring in as far as the mounting face with special tool pressure piece T10183.

Fig 3: Driving Sealing Ring Using Special Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push in drive flange and tighten nut.

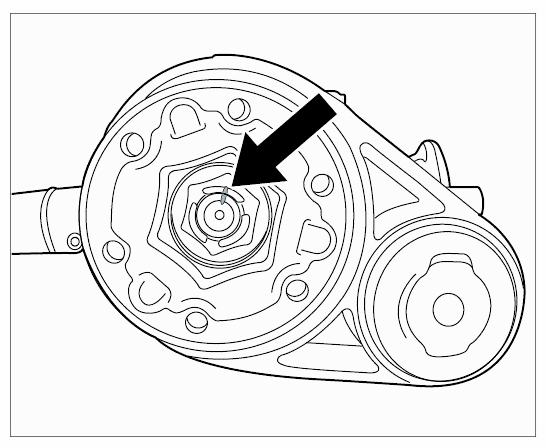

Position marking on nut and drive shaft -arrow- again so that the rolling moment determined prior to removal is reached once again.

Fig 4: Locating Marking Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- If the rolling moment has to be corrected, this should be done via the tightening torque of the nut.

Check rolling moment with special tool torque screwdriver for measuring friction moment 89.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rolling moment		Adjustment value	2.0 Nm (1.5 ft lbs.)	+0.5 Nm (+0.5 ft lbs.)
