Removing Rear Final Drive

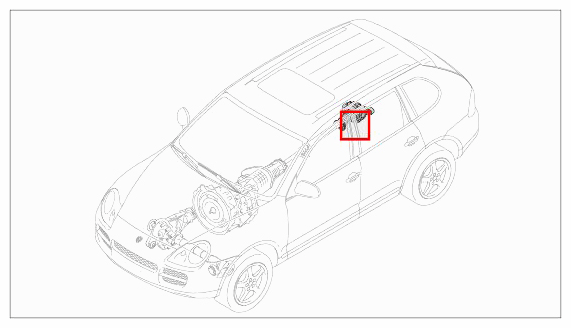

Fig 1: Overview Of Rear Final Drive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move selector lever to position N.
Loosen fastening screws for fixing cardan shaft centre bearing holder to body.

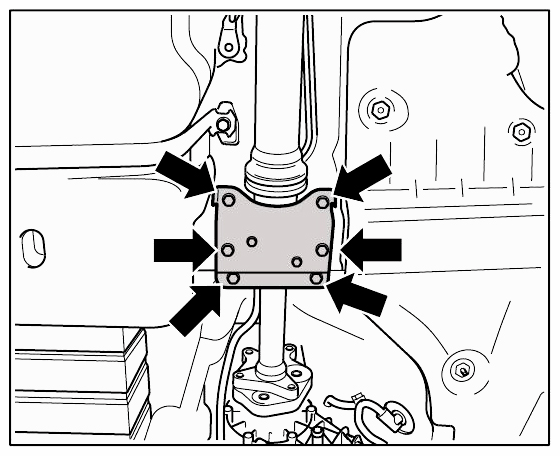

Fig 2: Locating Cardan Shaft Holder To Body Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen bolts for fixing centre bearing to holder.

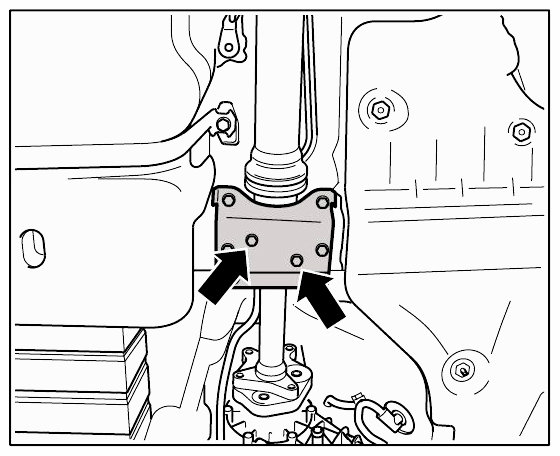

Fig 3: Locating Centre Bearing To Cardan Shaft Holder Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The colour marking, match point, on the cardan shaft and on the flange of the rear final drive must be installed in alignment -arrows- . This will neutralise the residual imbalance of the components.

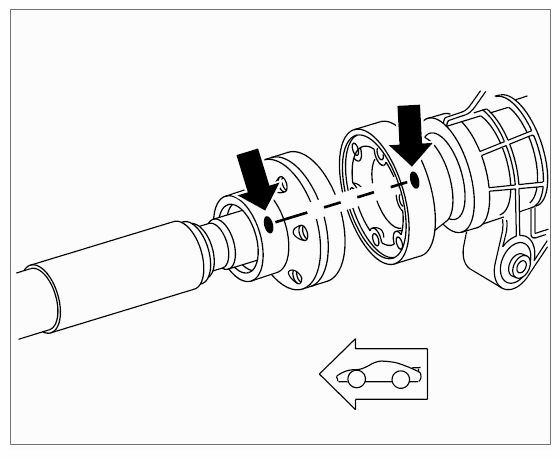

  Fig 4: Locating Matching Points On Cardan Shaft
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- To loosen the cardan shaft on the rear axle transmission, a second fitter should counter the fastening screws on the triangular flange of the transfer box.
Remove cardan shaft from rear axle differential and tie it up.

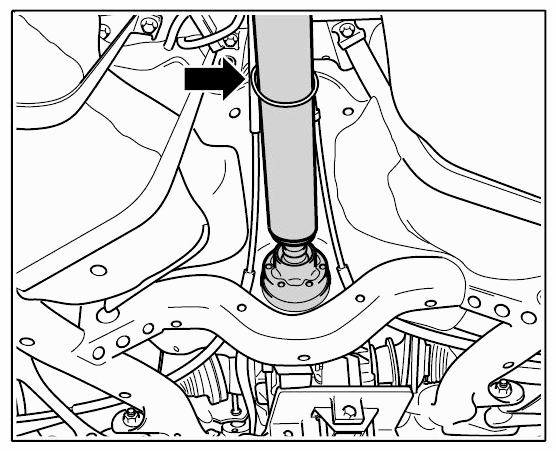

Fig 5: Tying Up Rear Cardan Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- To loosen the drive shaft bolts on the rear axle transmission, a second fitter should sit in the vehicle and block the rear-axle final drive by actuating the foot brake.
Remove both drive shafts on transmission side and tie them up.

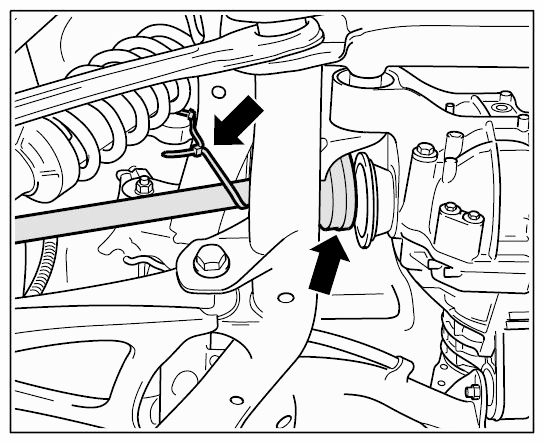

Fig 6: Removing Rear Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support transmission jack and rear axle differential with a retaining strap.
Unscrew fastening screws for final drive. To do this, counter with a ring wrench.

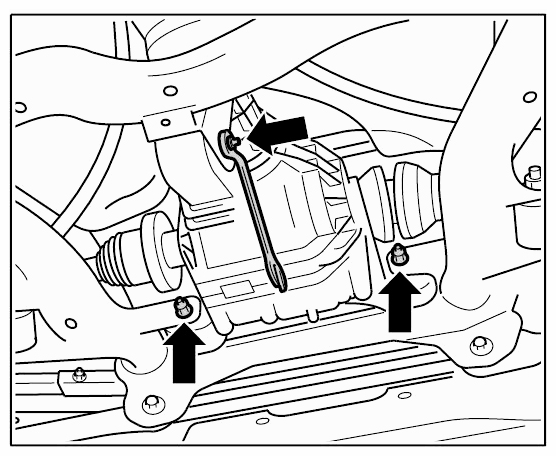

Fig 7: Loosening Rear Final Drive Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tip drive flange upwards -arrow- and gradually drain rear axle differential. Remove vent line at the same time.

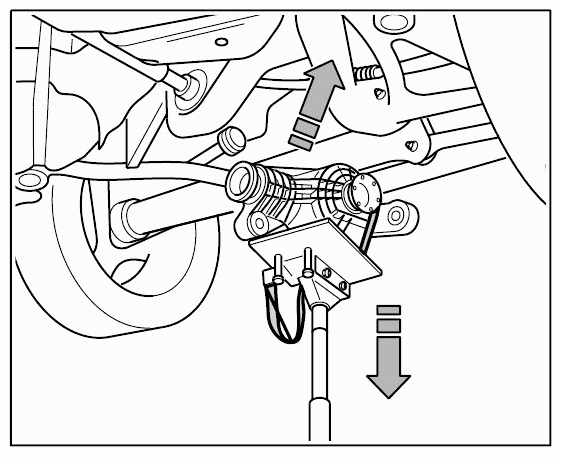

Fig 8: Removing Rear Final Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transmission and pull off vent line.

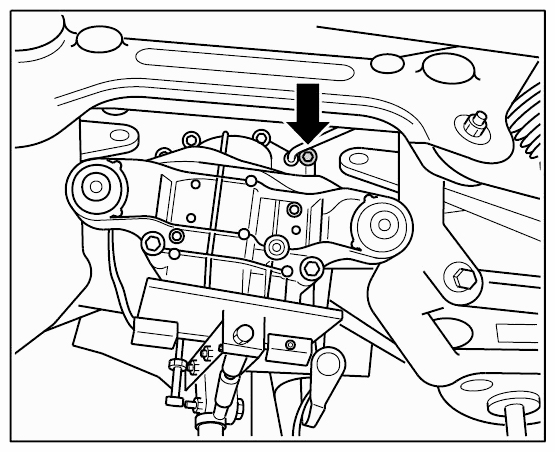

Fig 9: Removing Vent Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
