Installing Rear Final Drive

Information

• Screws which are tightened with a torque angle must be replaced with new ones.

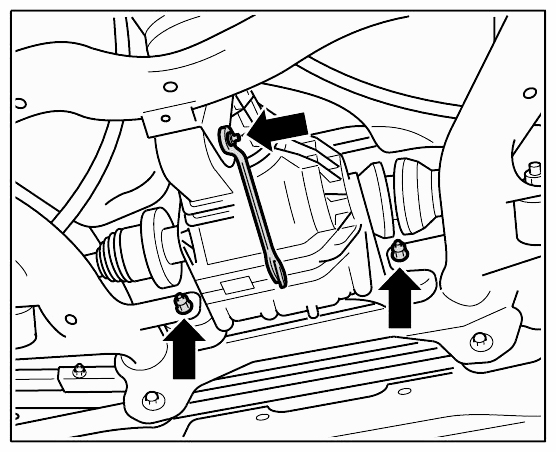

  Fig 1: Tightening Rear Final Drive Fastening Screws

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The colour marking, match point, on the cardan shaft and on the flange of the rear final drive must be installed in alignment -arrows- . This will neutralise the residual imbalance of the components.

Fig 2: Locating Matching Points On Cardan Shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Secure rear axle transmission on the transmission jack with a retaining strap.
2. Run in rear axle differential by gradually tipping the drive flange upwards -arrow-  . Connect the bleeder line at the same time.
   Fig 3: Installing Transmission

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw in new fastening screws on the final drive. To do this, counter with ring wrench. → Initial tightening: 90 Nm (67 ft lbs.)  → Final tightening: 90°

   Information

   • To tighten the drive shaft bolts on the rear final drive, a second fitter should sit in the vehicle and block the rear-wheel drive assembly by actuating the foot brake.
4. Attach drive shafts using new screws. → WM 4200TW TIGHTENING TORQUES FOR REAR AXLE (ALL MODELS)

   Information

   Align the colour marking (matchpoint) on the cardan shaft and on the flange of the rear final drive during installation.

   Information

   • To attach the cardan shaft to the rear final drive, a second fitter should counter the fastening screws on the triangular flange of the transfer box.
5. Attach cardan shaft using new screws. → Initial tightening: 30 Nm (22 ft lbs.)  → Final tightening: 90°
   Fig 4: Installing Cardan Shaft To Rear Final Drive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. New  fastening screws must be used to secure the cardan shaft centre bearing holder to the body. → Tightening torque: 60 Nm (44 ft lbs.)
   Fig 5: Locating Cardan Shaft Holder To Body Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Centre bearing must be installed without tension.
   • Fit special tool centring tool 9680 -Werkzeug in Einbaulage- in the order specified.
     Fig 6: Identifying Installation Position Of Special Tool

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Position special tool centring tool 9680  .
   Fig 7: Alignment Special Tool (9680)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Press on special tool centring tool 9680  in sequence according to numbering -1, 2-.
   Fig 8: Pressing Special Tool (9680)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Tighten threaded joints -arrow-  connecting holder to centre bearing. → Tightening torque: 20 Nm (15 ft lbs.)
   Fig 9: Locating Cardan Shaft Holder To Centre Bearing Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Remove special tool centring tool 9680.
    Fig 10: Removing Special Tool (9680)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
