Removing And Installing Connecting Link

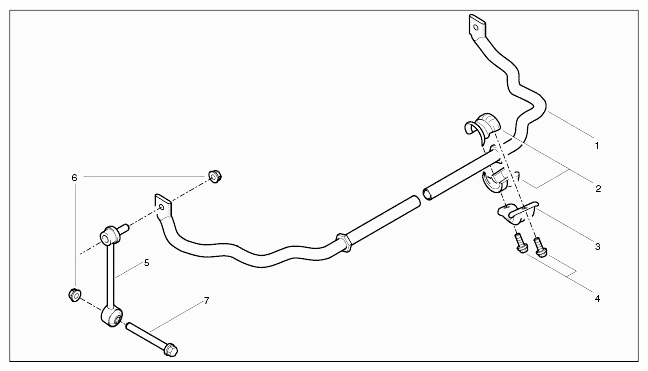

Fig 1: Exploded View Of Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Anti-roll bar
2. Anti-roll bar mount
3. Clip
4. Fastening screws
5. Connecting link
6. Fastening nut
7. Fastening screw

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

The spring strut screws are under tension. Carefully lever out the lower spring strut connection.

1. Raise the wheel carrier with a suitable lift until the fastening screw -2-  on the connecting link -1-  can be removed easily from the wheel bearing housing (spring strut threaded joint). Use a lift with a rubber base → see Fig 2 to prevent slipping.

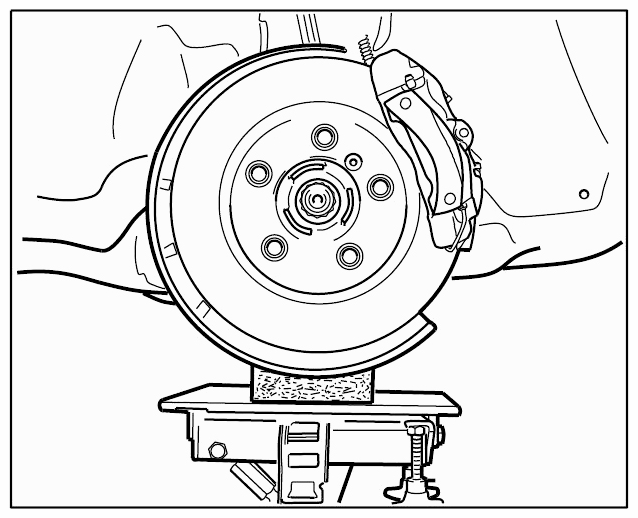

   Fig 2: Placing Wheel Carrier On Rubber Base

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen the connecting link -1-  at the anti-roll bar -3-  and remove it.

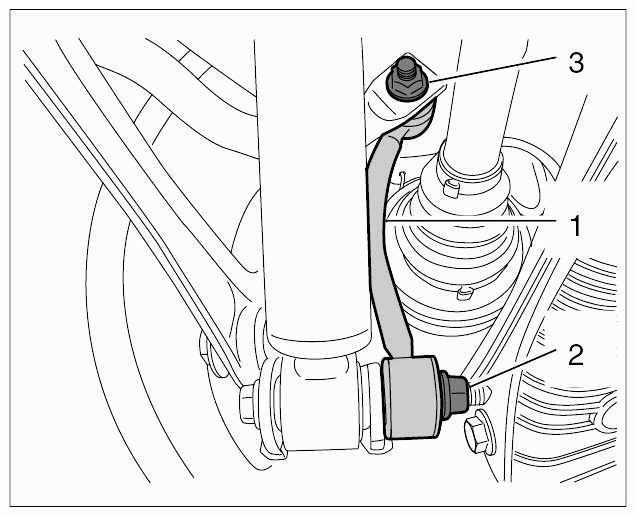

   Fig 3: Identifying Connecting Link And Anti-Roll Bar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The entire threaded parts of the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -X-  , from lower edge of wing to centre of wheel → Control value: 506 mm+/-10 mm corresponds to vehicle position.

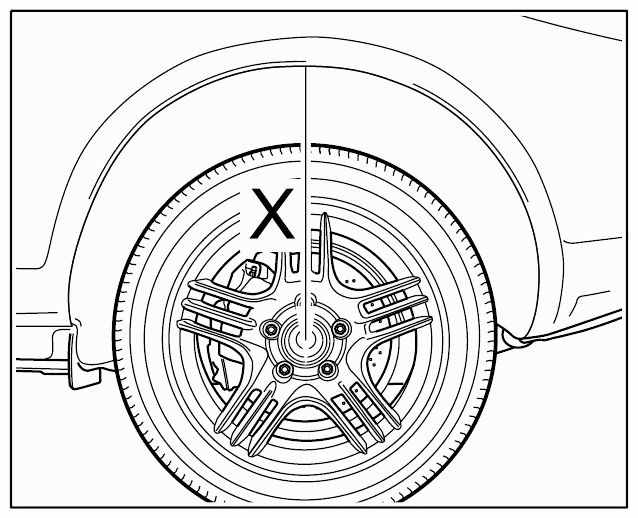

     Fig 4: Identifying Vehicle Position Mark

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • Carry out a visual inspection of all parts.
   • Replace self-locking nuts.
   • Replace all expansion screws (screws fitted using torque angle tightening procedure).
   • Use correct tightening torques and torque angle  . → WM 4200TW TIGHTENING TORQUES FOR REAR AXLE
   • Make sure the bevel pinions from the ball joints are clean. Clean with a lint-free cloth if necessary. Do not use cleaning agent.

Installation is performed in reverse order.
