Component Overview
The steel springs do not apply for the Cayenne Turbo.
Standard Cayenne Turbo equipment: Air springs with level regulation and vertical adjustment.

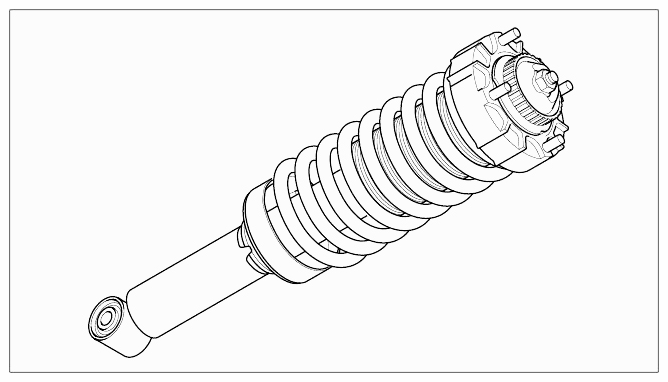

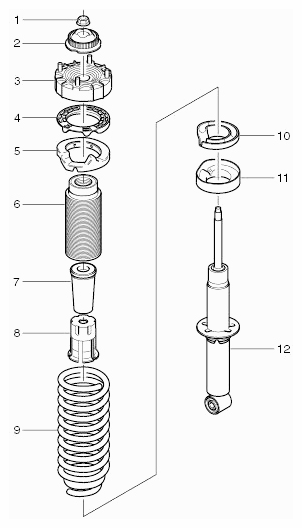

| No. | Designation | Qty. | Removal | Fitting |
|---|---|---|---|---|
| -1- | Hexagon nut M12 x 1.5 | 1 | Before loosening the lock nut, tension coil spring using spring clamp for spring struts. When loosening the nut, counter it at the piston rod using an arm bracket 9630. | Use new lock nut. Tighten to 60 Nm (44 ft lbs.) ± 5 Nm (3.5 ft lbs.). First position spring-strut mount 2. |
| -2- | Supporting mount | 1 | Remove complete assembly (mount no. 2., with mount plate no. 3, top support no. 4 and top concave washer no. 5). | |
| -3- | Concave support | 1 | ||
| -4- | Top support | 1 | Place in correct position with spring retainer no. 5. | |
| -5- | Concave washer, top | 1 | ||
| -6- | Protective sleeve | 1 | ||
| -7- | Rubber stop | 1 | ||
| -8- | Cap | 1 | Fit to shock absorber. | |
| -9- | Coil spring | 1 | ||
| -10- | Concave washer, bottom | 1 | ||
| -11- | Bottom support | 1 | Observe colour allocation. Only coil springs and the bottom shim should be installed together with colour coding (depending on tolerance class of springs). Fit in correct position with spring plate no. 10. | |
| -12- | Vibration damper | 1 | The vibration dampers for the right and left sides are identical parts. |
