Installing Rear Lid Seal

Information

• A new seal must always be installed.

1. Installing new seal:
   1. 1.1. Position new seal for rear lid -1-  with the connection point -2-  in the top centre part of the sheetmetal flange -3-  . The seal air vents must face towards the outside of the vehicle.
   2. 1.2. Press new seal -1-  onto sheetmetal flange.

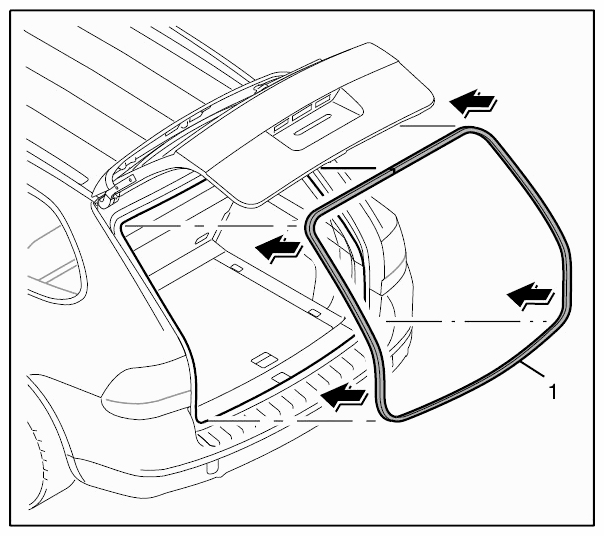

      Fig 1: Positioning Seal For Rear Lid

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

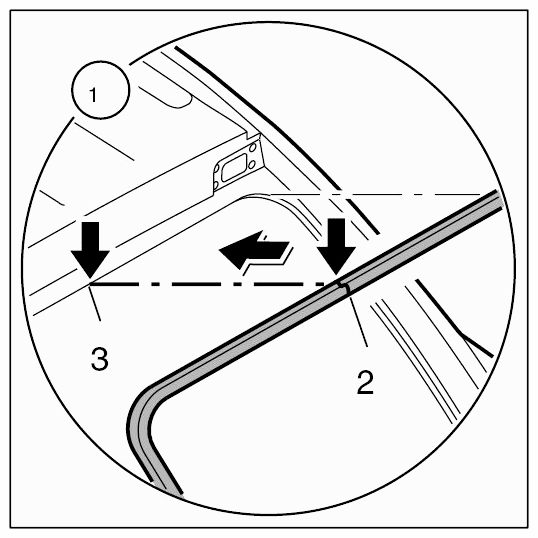

      Fig 2: Identifying Sheetmetal Flange And Connection Point

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check whether the installation is correct.
   1. 2.1. Pay particular attention to the areas near the tight roundings for correct installation; there must be no deformation or stretching.
   2. 2.2. Check the air vents; they must not be closed or covered.
3. Close rear lid.
