Flanging Edges Of Wheel Arch

WARNING: Danger of tyre damage
  • The tyres will be damaged if wing folds are not reworked!

→ Flange the wheel arch edges.

  1. Flange the wheel arch edges in the marked area -A-  .

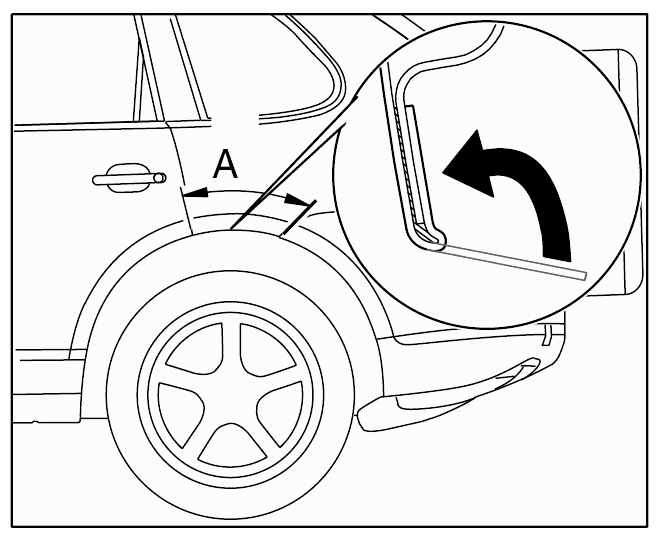

    Fig 1: Identifying Wheel Arch Edges
    G09421190Courtesy of PORSCHE CARS NORTH AMERICA, INC.
