Preparing Connection Areas Of The Body For Installing The Rear Side Member

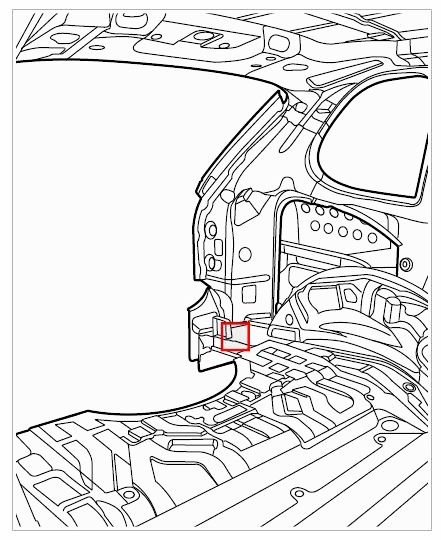

Fig 1: Overview Of Side Member - Inside

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit rear side member to the body.
Information
- To fit the rear side member, the frame head (impact absorber mount) must be secured to the straightening set .
1. 1.1. Secure the frame head of the rear side member to the straightening set.
  Information
  - Thick body panels (> 1.5 mm) must not be butt-welded without a welding gap.
  - Always allow a welding gap of s = approx. 1x material strength when fitting new parts.
  Information

  The length of the new part (section) must be taken into account when measuring the cut on the rear side member.
2. 1.2. Measure and mark the cut on the rear side member. Take the length of the new part into account when doing so.
3. 1.3. Cut through the rear side member in area -A- using the oscillating body saw.

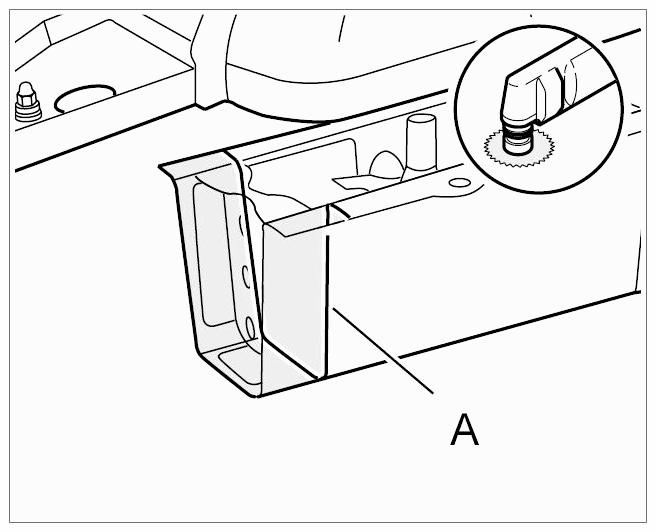

  Fig 2: Cutting Through Rear Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove remaining piece of rear side member.

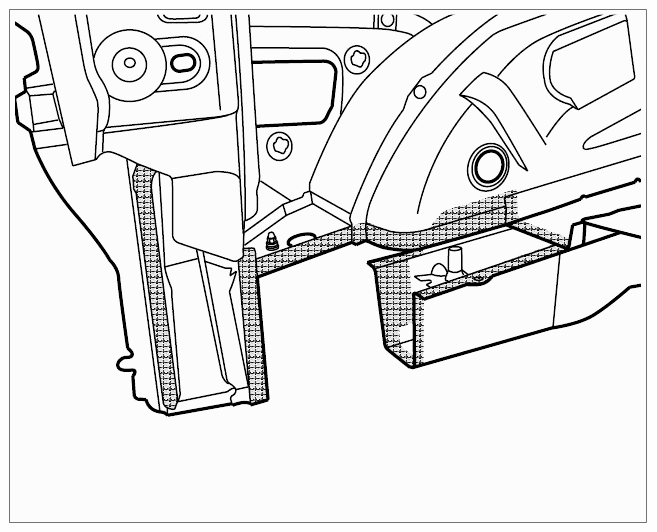

Fig 3: Overview Of Side Member - Inside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean welding and sealing areas.
1. 3.1. Clean undersealing, adhesive residue and paint off the connecting flanges of the body in the marked areas using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

  Fig 4: Preparing Connection Areas On Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 4.1. Coat all spot-weld flange areas with zinc powder paint.
