Preparing Connection Areas Of The Body For Installing The Rear Side Member

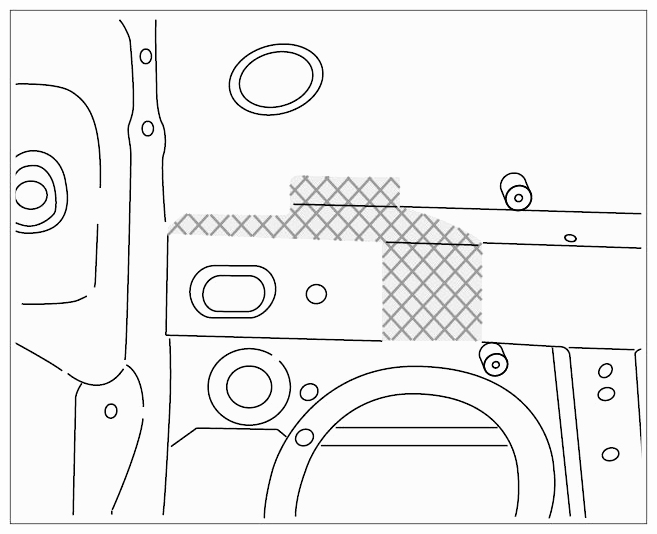

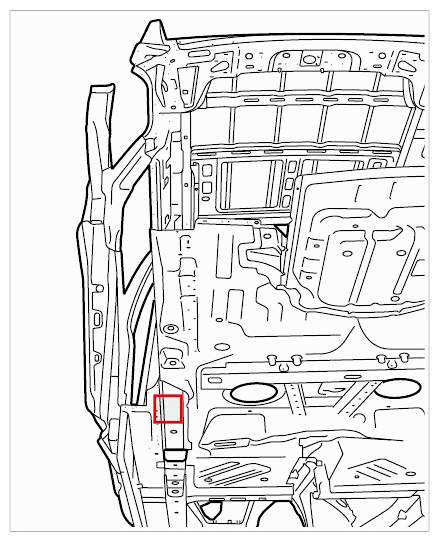

Fig 1: Overview Of Side Member (Below)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Clean welding and sealing areas.
   1. 1.1. Clean undersealing, adhesive residue and paint off the connecting flanges of the body in the marked areas using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

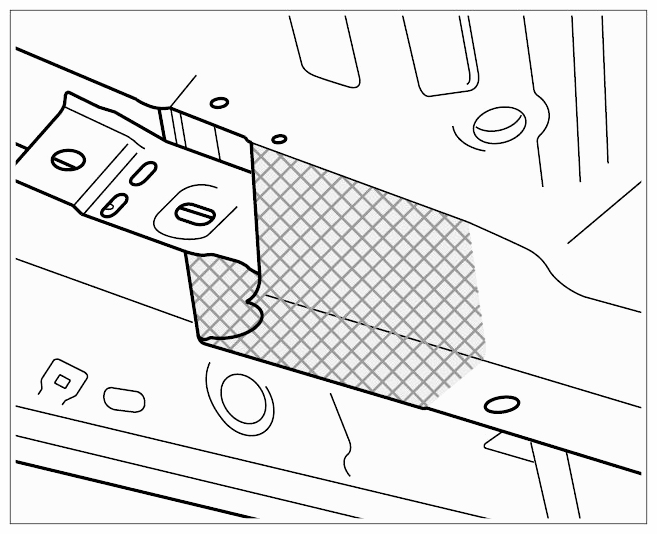

      Fig 2: Identifying Connection Areas On Centre Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

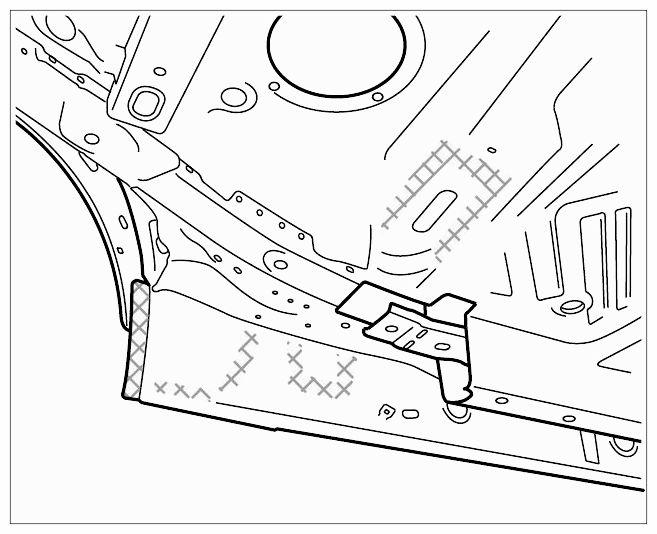

      Fig 3: Identifying Connection Areas On Body

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 4: Identifying Connection Areas On Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

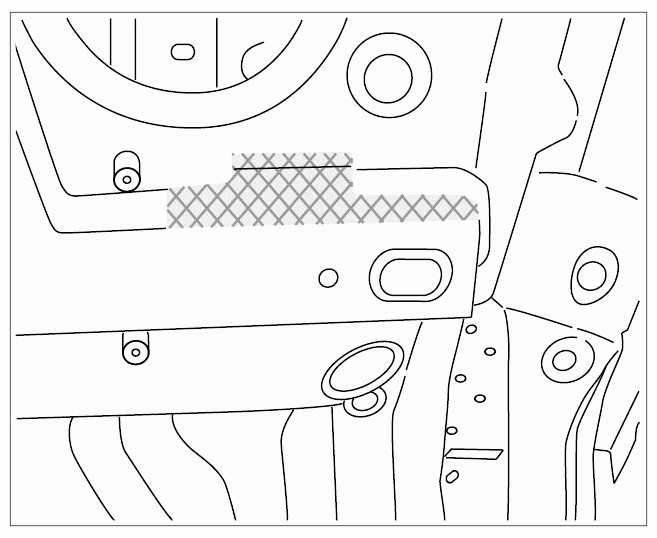

      Fig 5: Identifying Connection Areas On Cross Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

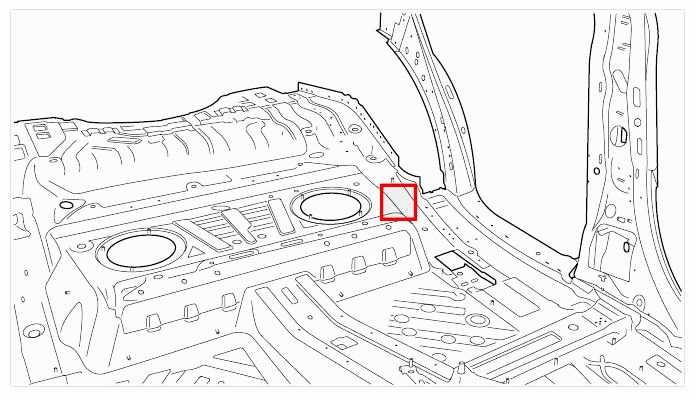

      Fig 6: Overview Of Side Member - Inside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

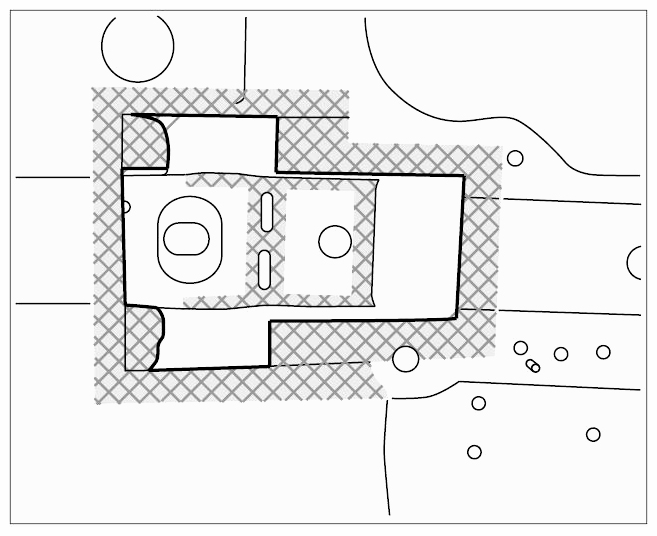

      Fig 7: Identifying Connection Areas On Lid Opening And On Centre Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

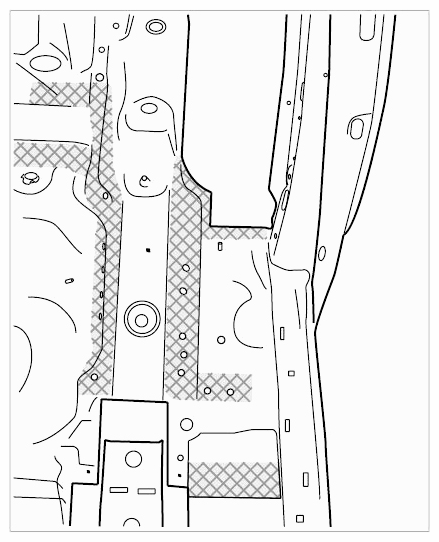

      Fig 8: Identifying Connection Areas On Centre Floorpan

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

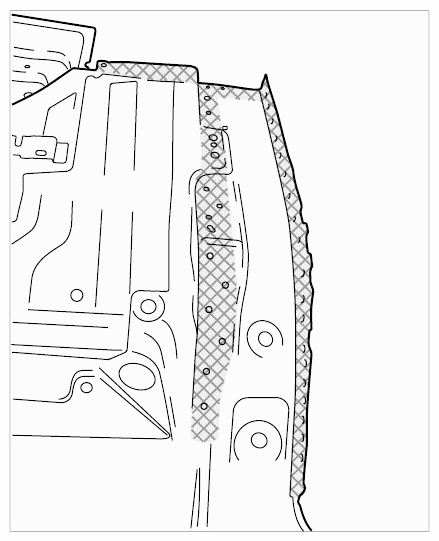

      Fig 9: Identifying Connection Areas On Rear Floorpan

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

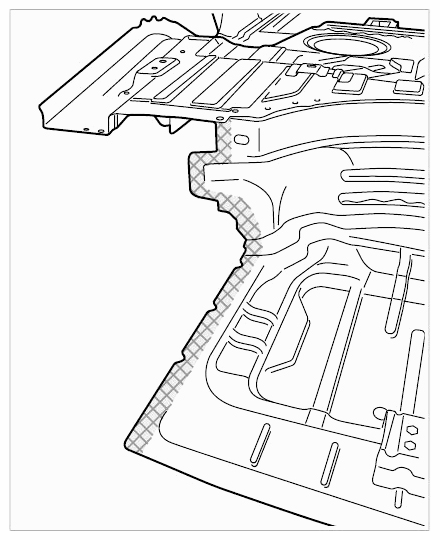

      Fig 10: Identifying Connection Areas On Spare-Wheel Well

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
