Removing Lock Carrier

Information

• All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed  .

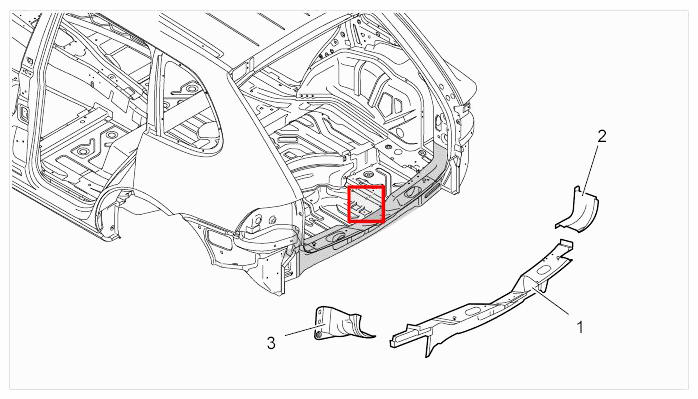

Fig 1: Lock Carrier Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Lock carrier
2. D-pillar gusset plate, right
3. D-pillar gusset plate, left

1. Remove end plate. → 530555 REPLACING END PLATE

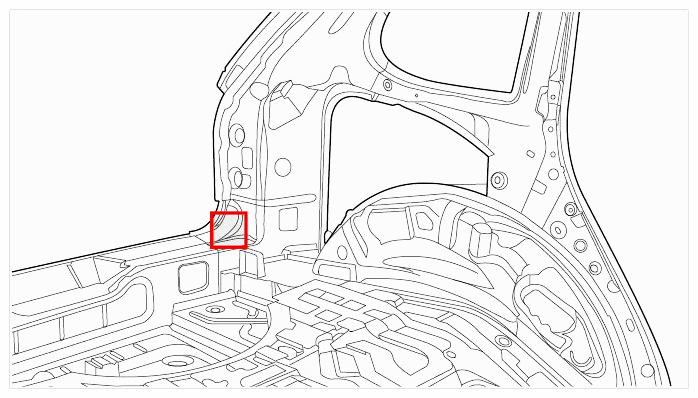

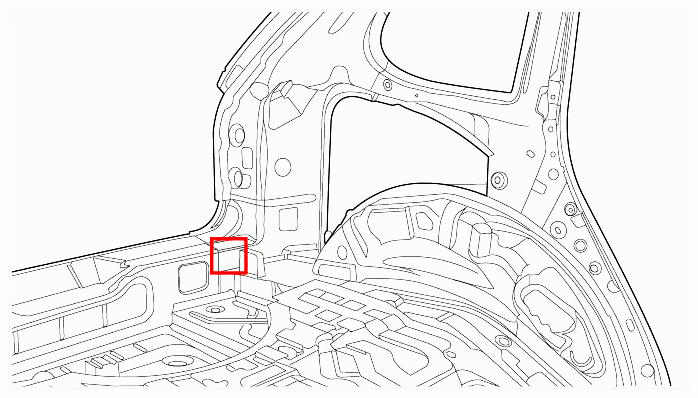

   Fig 2: Overview From Inside Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Cut off D-pillar gusset plates.
   1. 2.1. Mill off welded joints on the D-pillar gusset plates using the spotweld cutter (areas -A-  ).

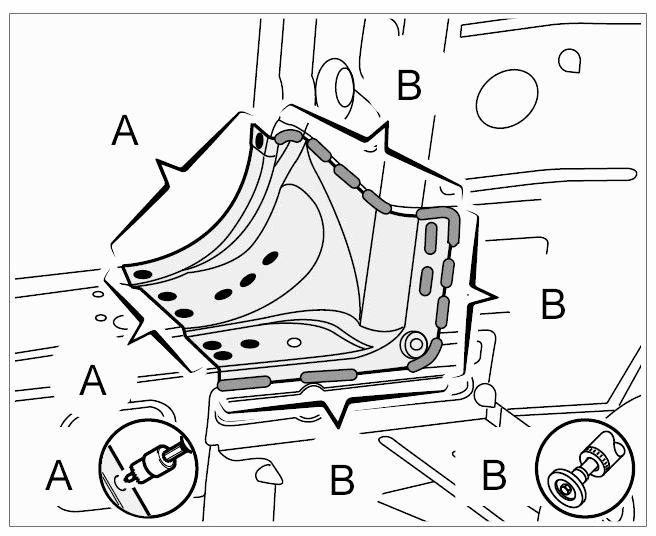

      Fig 3: Separating Welded Joints On Left D-Pillar Gusset Plate

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

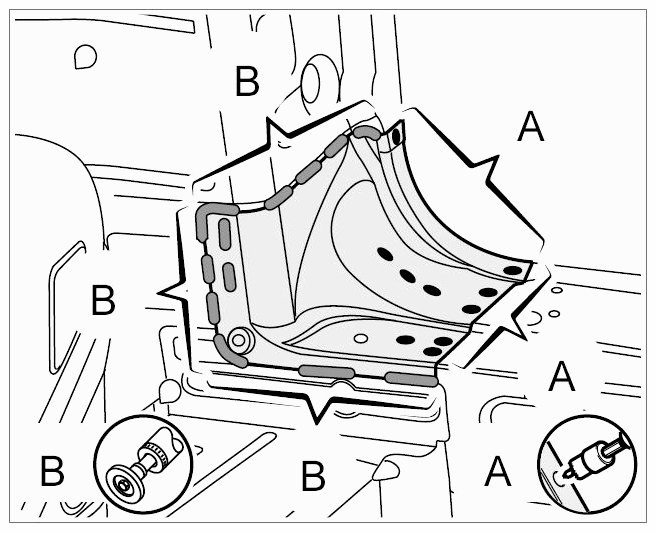

      Fig 4: Separating Welded Joints On Right D-Pillar Gusset Plate

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Grind off MIG seams on the D-pillar gusset plates using a parting grinder (areas -B-  ).
3. Remove D-pillar gusset plates.

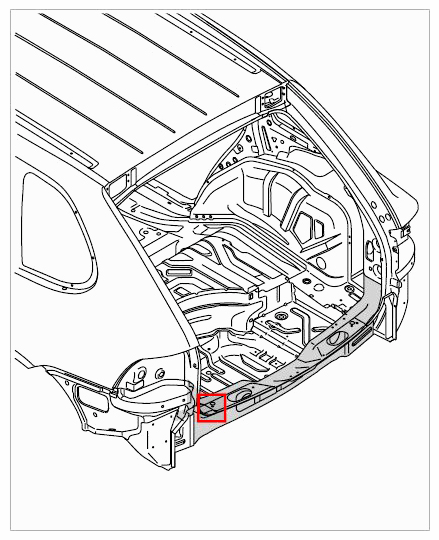

   Fig 5: Identifying D-Pillar Gusset Plates Working Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Cut off outer lock carrier.
   1. 4.1. Mill off welded joints on the lock carrier using the spotweld cutter (areas -C-  ).

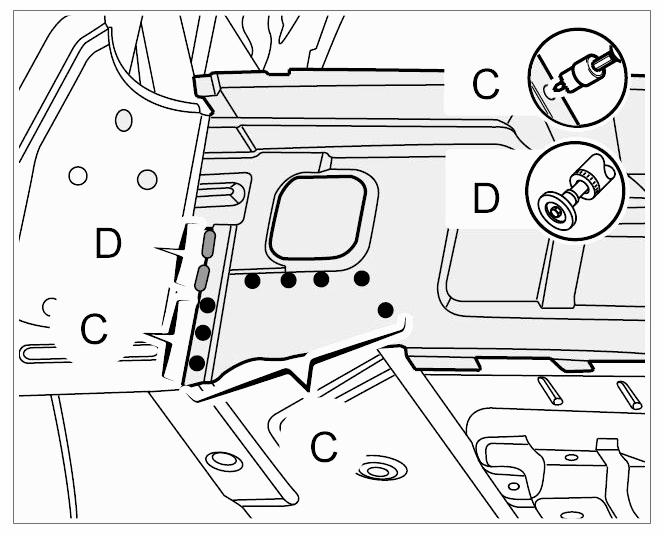

      Fig 6: Separating Welded Joints On Outer Left Lock Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Grind off MIG seams on the lock carrier using a parting grinder (area -D-  ).
   3. 4.3. Mill off welded joints on the lock carrier using the spotweld cutter (area -E-  ).

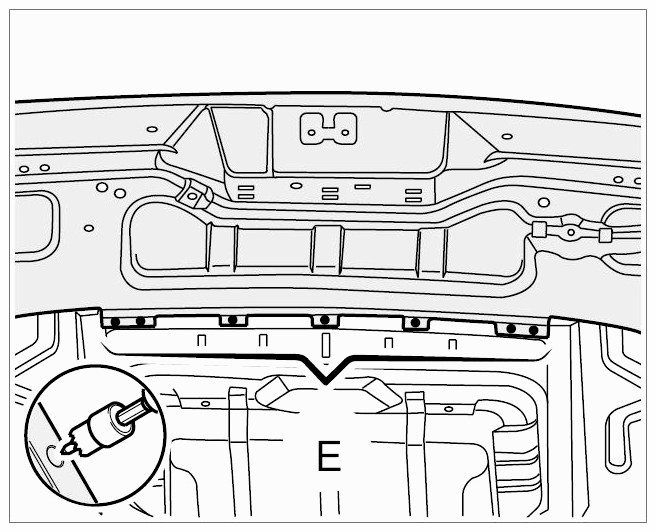

      Fig 7: Separating Welded Joints On Outer Lock Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 4.4. Mill off welded joints on the lock carrier using the spotweld cutter (areas -F-  ).

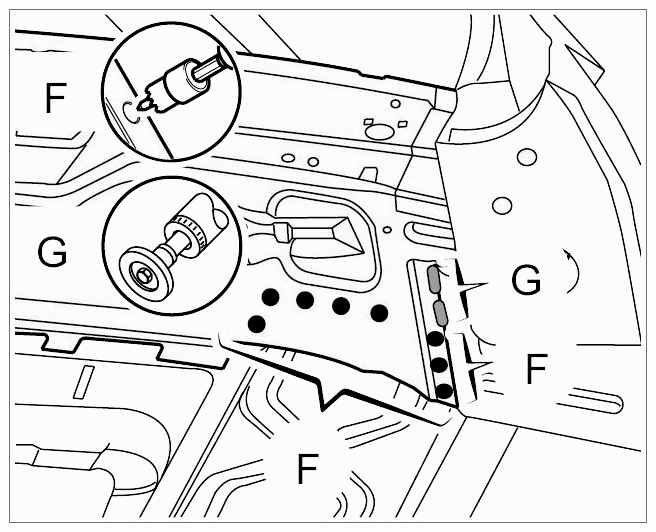

      Fig 8: Separating Welded Joints On Outer Right Lock Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   5. 4.5. Grind off MIG seams on the lock carrier using a parting grinder (area -G-  ).
      Fig 9: Overview From Lock Carrier Inside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Cut off inner lock carrier.
   1. 5.1. Grind off MIG seams on the lock carrier using a parting grinder (area -H-  ).

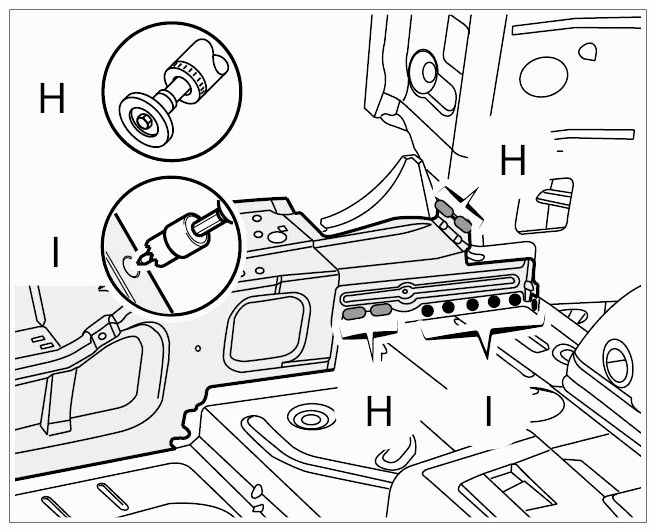

      Fig 10: Separating Welded Joints On Inner Left Lock Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 5.2. Mill off welded joints on the lock carrier using the spotweld cutter (area -I-  ).
   3. 5.3. Grind off MIG seams on the lock carrier using a parting grinder (area -J-  ).

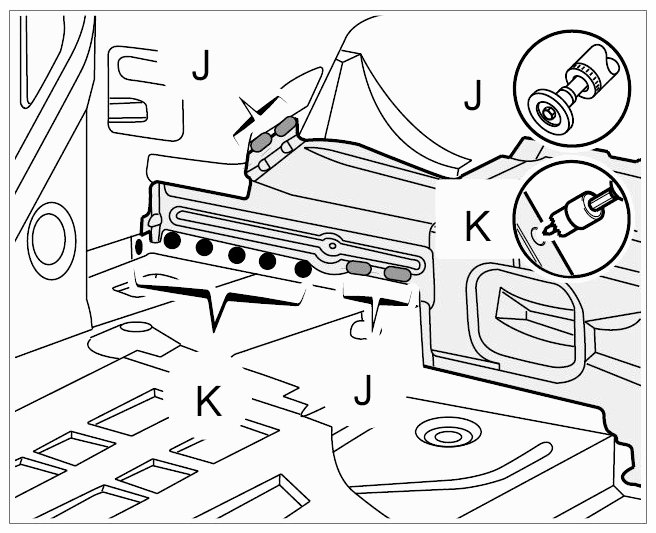

      Fig 11: Separating Welded Joints On Inner Right Lock Carrier

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 5.4. Mill off welded joints on the lock carrier using the spotweld cutter (area -K-  ).
6. Remove lock carrier.
