Removing Roof

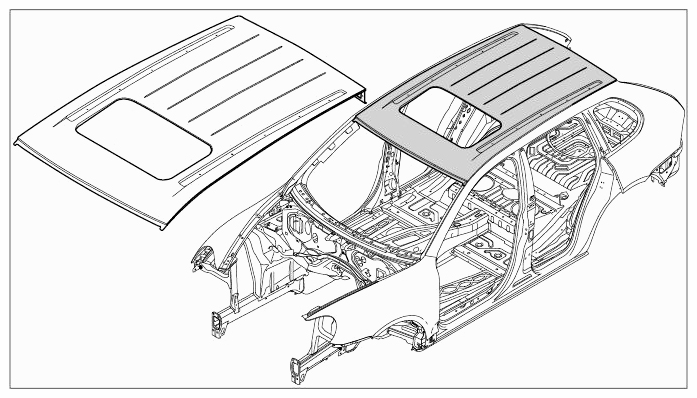

Fig 1: Roof Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mill off the spot welds in the front and side roof areas.

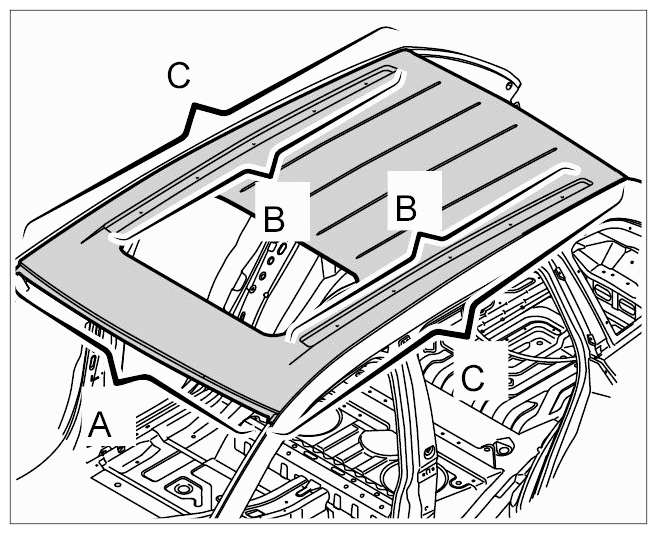

1. 1.1. Mill off the spot welds of the front roof cross member -A- and in the area of the roof strips -B- using a spotweld cutter.

  Fig 2: Identifying Front Roof Cross Member And Area Of Roof Strips Using Spotweld Cutter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut off the roof.

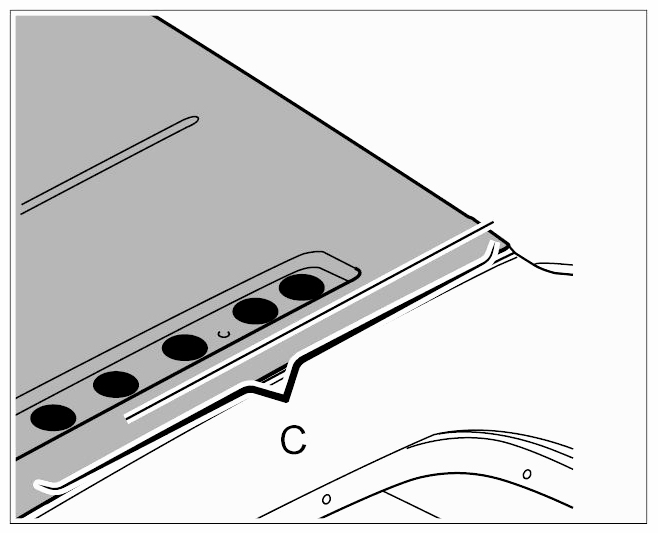

1. 2.1. Cut off the roof with the oscillating body saw in the area -C- on both sides.

  Fig 3: Identifying Oscillating Body Saw Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off the spot welds in the rear roof area.

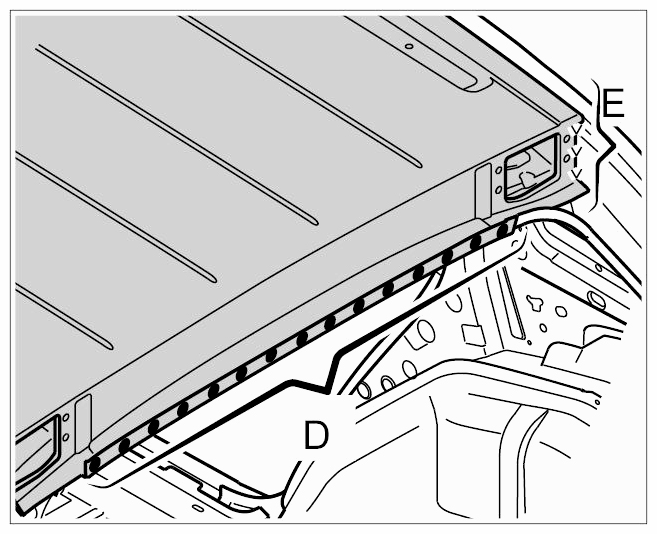

1. 3.1. Mill off the spot welds in the rear roof area -D- and in the area of the hinge mounting -E- .

  Fig 4: Identifying Rear Roof Area And Hinge Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat roof in area of the cross members and remove.

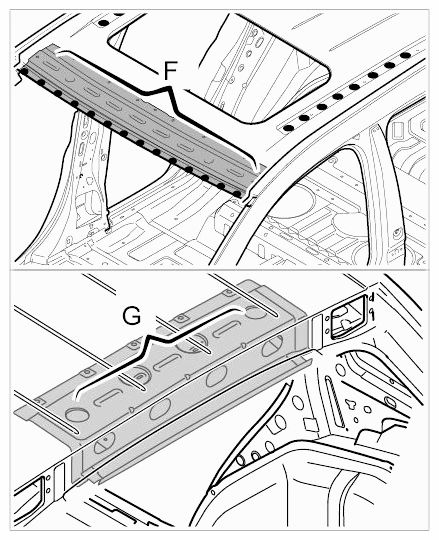

1. 4.1. Heat roof bonding in area of the cross members -F- and -G- using a hot-air gun.
2. 4.2. Remove the roof.

  Fig 5: Identifying Heat Roof Bonding Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove remaining pieces of the roof.
Information
- During separation make sure that the components beneath are not damaged.

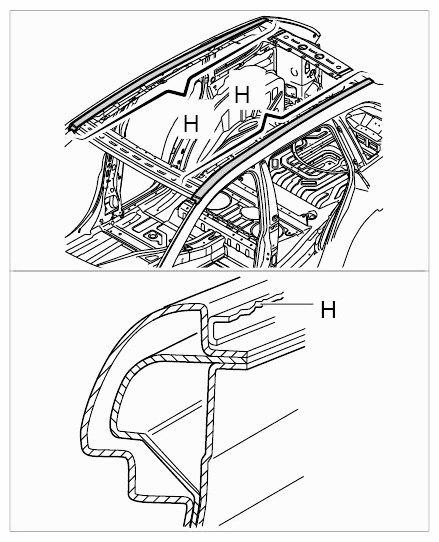

1. 5.1. Cut off laser soldered joints on side panels (areas -H- ).
2. 5.2. Remove the remaining pieces.

  Fig 6: Identifying Cut Off Laser Soldered Joints On Side Panels
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
