Lower Side Member

Information

• Apply the chipping protection/undersealing to the lower side member up to the top edge.

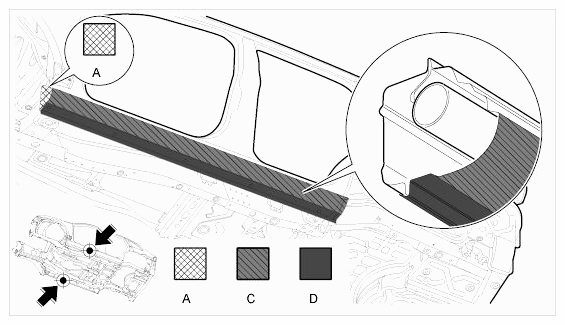

  Fig 1: Applying Chipping Protection/Undersealing To Lower Side Member To Top Edge

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. A - 0.3 mm
2. C - 1.0 mm
3. D - 2.0 mm
